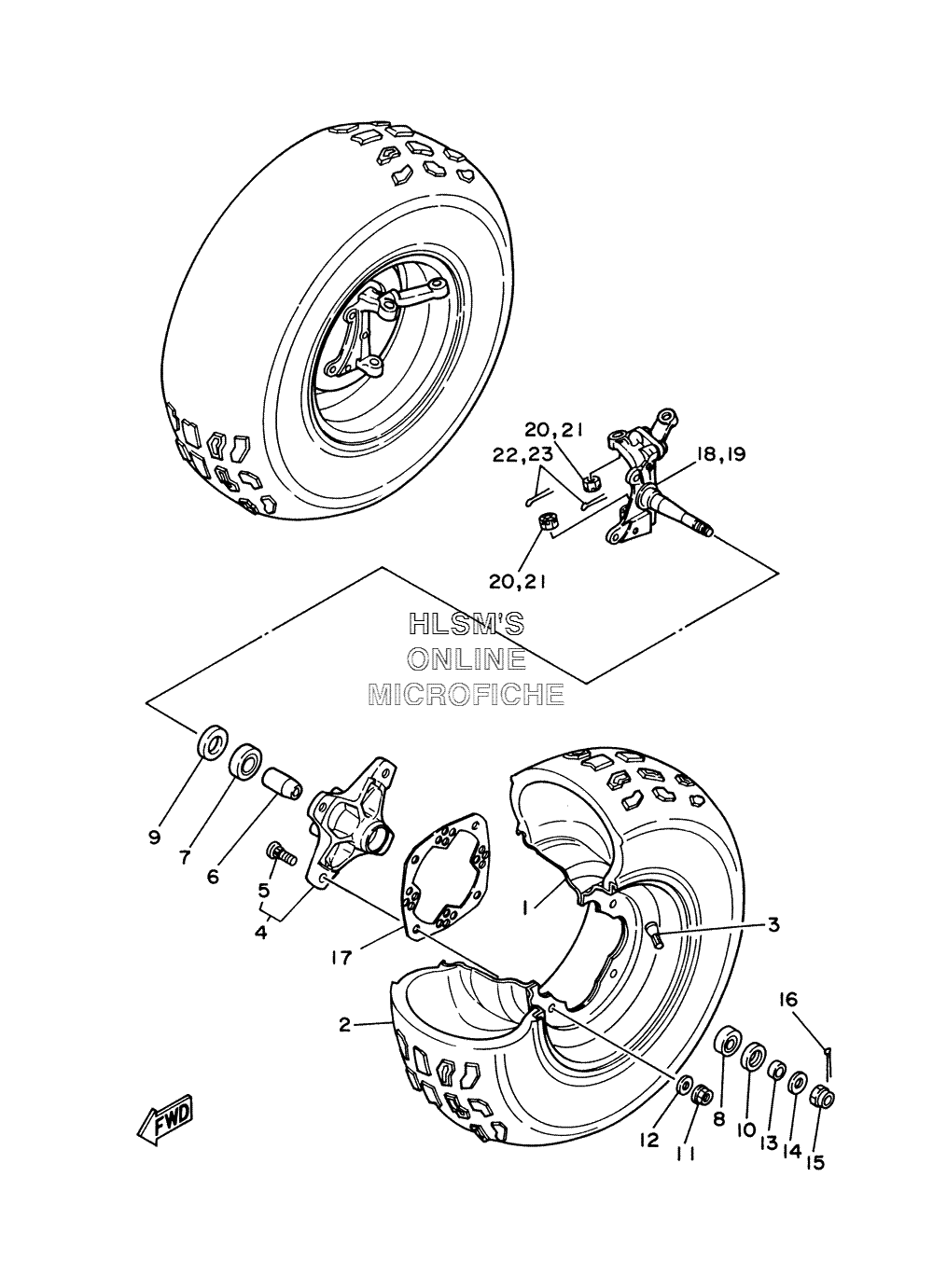

WHEEL - FRONT W/ AXLE ASSY для Yamaha BANSHEE SE YFZ350SET - 2005 года выпуска
-
№АртикулНазвание
-
12XK-25180-10-HM WHEEL COMP. (ALMITE SILVER)WHEEL COMP. (ALMITE SILVER)
-
294107-10012-00 TIRE (AT21X7-10 KT851B)TIRE (AT21X7-10 KT851B)
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
43GD-25111-01-00 HUB, FRONTHUB, FRONT
-
590114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
61UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
793306-00406-00 BEARING (NTN)BEARING (NTN)
-
793306-00438-00 BEARING (NIHONSEIKO)BEARING (NIHONSEIKO)
-
893306-20227-00 BEARINGBEARING
-
993105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1093102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1195707-10500-00 NUT, FLANGENUT, FLANGE
-
1292907-10200-00 WASHER, PLAINWASHER, PLAIN
-
1390387-150R1-00 COLLARCOLLAR
-
1490201-14586-00 WASHER, PLATEWASHER, PLATE
-
1590171-14020-00 NUT, CASTLENUT, CASTLE
-
1691401-30025-00 PIN, SPLITPIN, SPLIT
-
173GD-25127-10-00 COVER, PLATECOVER, PLATE
-
183GD-23501-00-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
193GD-23502-00-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
2090171-10046-00 NUT, CASTLENUT, CASTLE
-
2190171-10046-00 NUT, CASTLENUT, CASTLE
-
2291401-20020-00 PIN, COTTERPIN, COTTER
-
2391401-20020-00 PIN, COTTERPIN, COTTER
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER - RECOIL
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- WATER PUMP ASSY
- • WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
