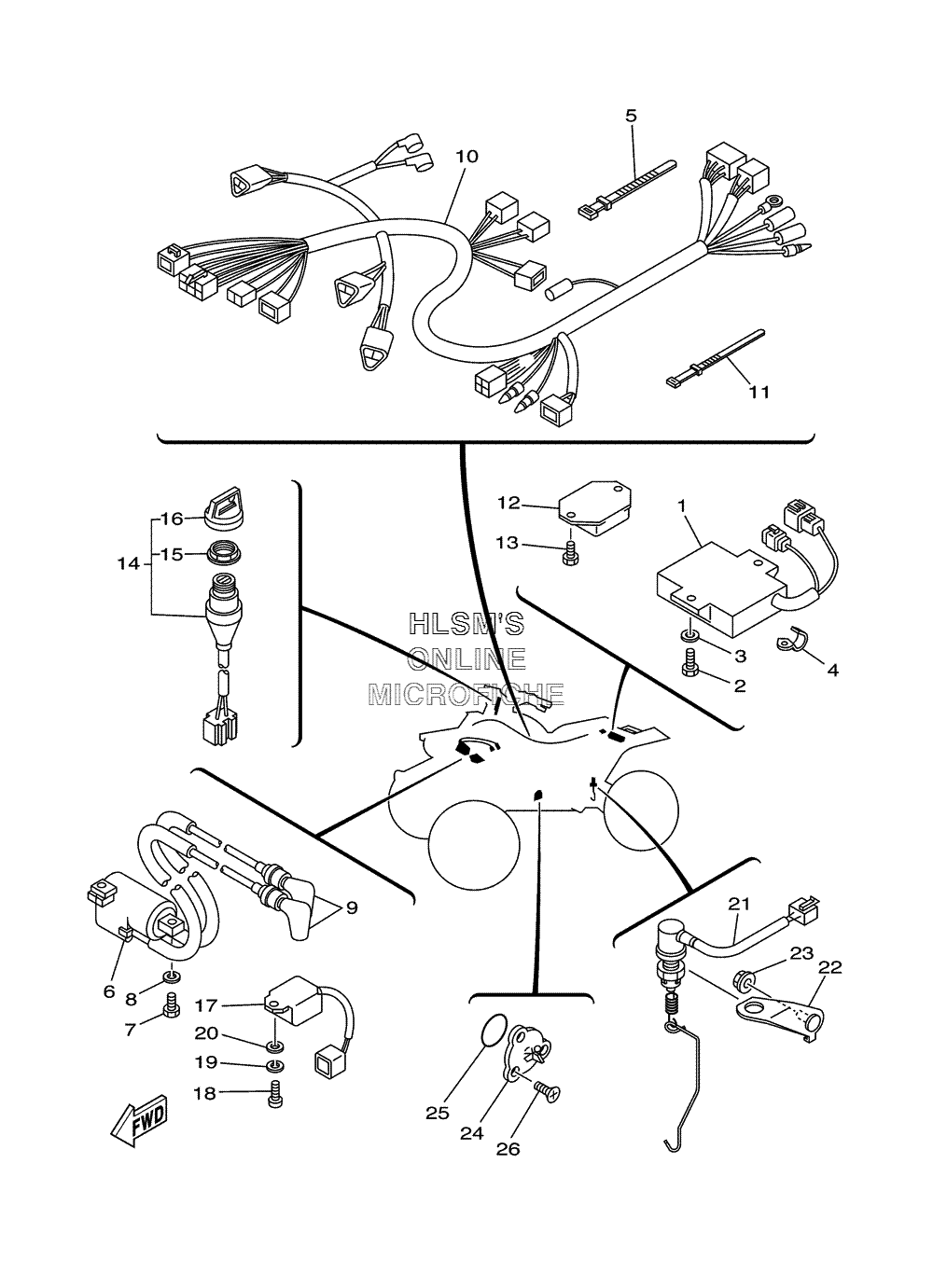

ELECTRICAL для Yamaha BANSHEE SE YFZ350SET - 2005 года выпуска
-
№АртикулНазвание
-
13GG-85540-10-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
297007-06016-00 BOLTBOLT
-
392907-06600-00 WASHER, PLATEWASHER, PLATE
-
490462-08078-00 CLAMPCLAMP
-
5437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
62GU-82310-51-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
797007-06020-00 BOLTBOLT
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
91M1-82370-30-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
105FK-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
11437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1282F-81910-A0-00 VOLTAGE REGULATOR ASSY. (OPT)VOLTAGE REGULATOR ASSY. (OPT)
-
12898-81910-12-00 VOLTAGE REGULATOR ASSY. (OPT)VOLTAGE REGULATOR ASSY. (OPT)
-
1390109-06557-00 BOLTBOLT
-
145FK-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
153HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
163HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
173GG-85590-00-00 CONTROL UNIT ASSY.CONTROL UNIT ASSY.
-
1898507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2092907-06600-00 WASHER, PLATEWASHER, PLATE
-
215FK-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
225FK-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
2395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
24278-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
2593210-29147-00 O-RINGO-RING
-
2698707-05012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
