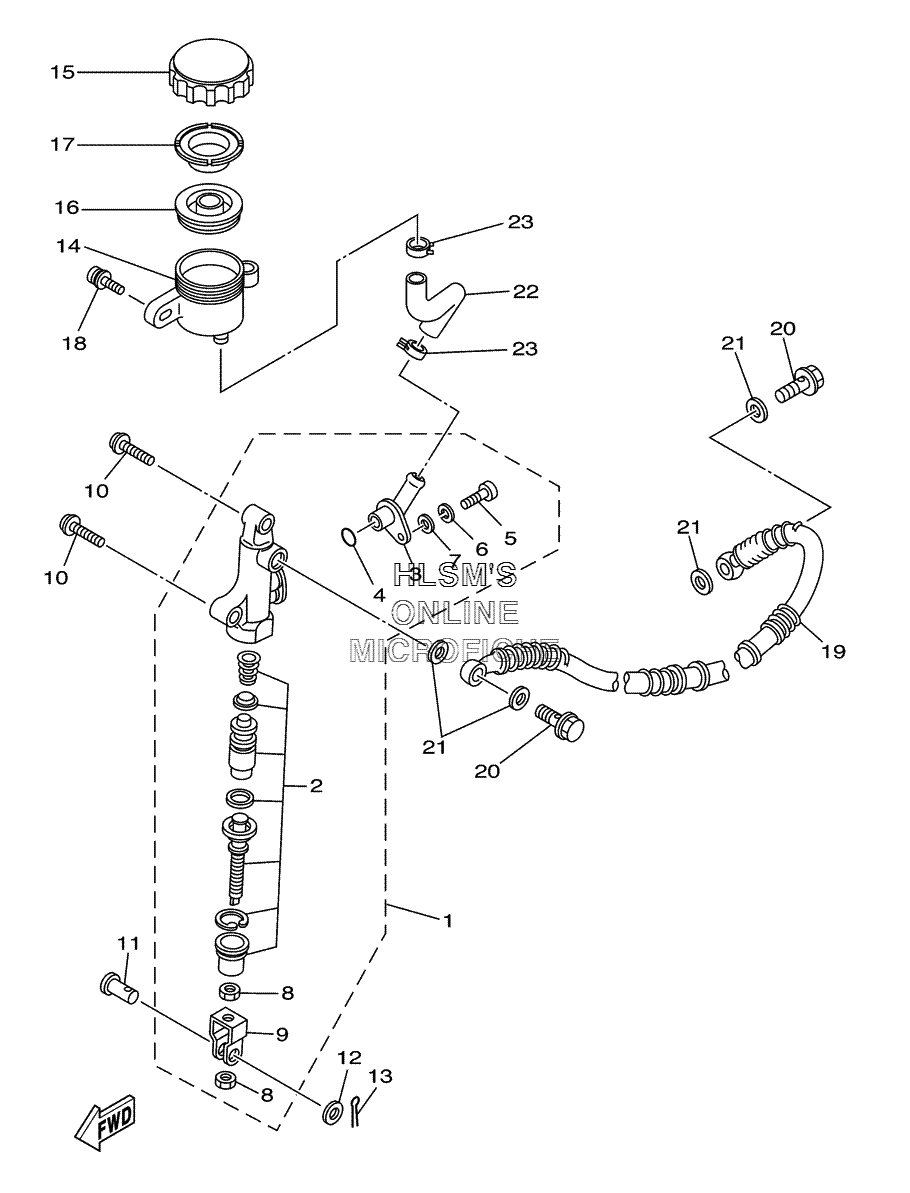

BRAKE - REAR MASTER CYLINDER для Yamaha BANSHEE YFZ350T - 2005 года выпуска
-
№АртикулНазвание
-
15FK-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
329L-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
598511-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
792901-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
84SS-27218-00-00 ...NUT...NUT
-
92YK-27222-00-00 ...JOINT...JOINT
-
1092017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-16012-00 PIN, COTTERPIN, COTTER
-
141A1-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
152KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
16360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
172GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1890159-06056-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
193GG-25874-02-00 HOSE, BRAKEHOSE, BRAKE
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
222GU-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2390467-14057-00 CLIP, SCISSORCLIP, SCISSOR
