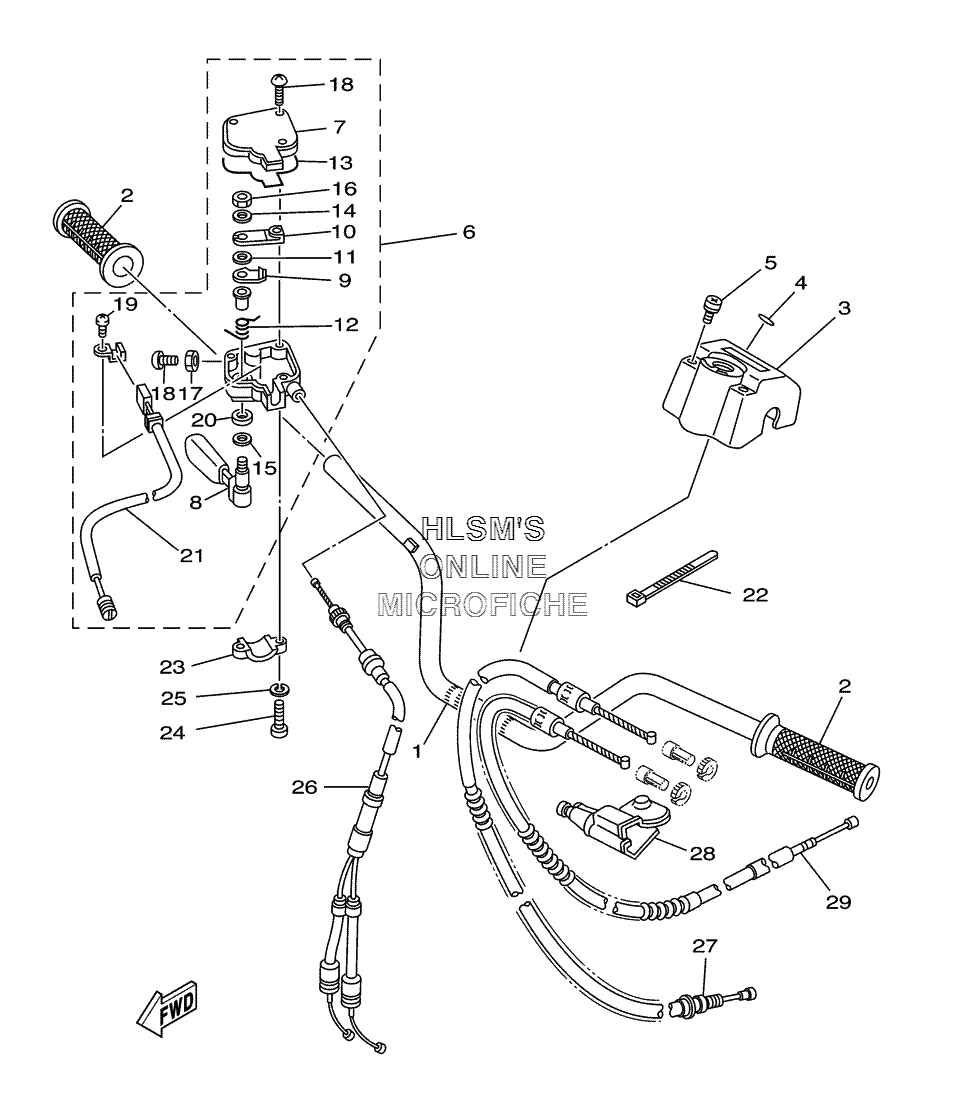

HANDLEBAR W/ CABLES для Yamaha BANSHEE YFZ350T - 2005 года выпуска
-
№АртикулНазвание
-
15LP-26111-20-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
32GU-26124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
590159-06093-00 SCREW, PANSCREW, PAN
-
63GG-26250-00-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
72GU-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
82GU-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
92GU-2625H-00-00 ...ARM, THROTTLE 1...ARM, THROTTLE 1
-
102GU-2625J-00-00 ...ARM, THROTTLE 2...ARM, THROTTLE 2
-
112GU-26259-00-00 ...COLLAR...COLLAR
-
122GU-26314-00-00 ...SPRING...SPRING
-
132GU-2628G-00-00 ...GASKET...GASKET
-
142GU-26398-00-00 ...WASHER...WASHER
-
151NV-26129-00-00 ...WASHER...WASHER
-
1695602-05100-00 ...NUT, U...NUT, U
-
1795306-05700-00 ...NUT...NUT
-
1898506-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1998902-03006-00 ...SCREW, BIND...SCREW, BIND
-
2093104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
213GG-82567-00-00 ...SWITCH, THROTTLE...SWITCH, THROTTLE
-
22437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
234V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2498507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592907-05100-00 WASHER, SPRINGWASHER, SPRING
-
262GU-26260-01-00 CABLE ASSY., THROTTLE AND PUMPCABLE ASSY., THROTTLE AND PUMP
-
275FK-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
281UY-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
291UY-26341-02-00 CABLE, BRAKECABLE, BRAKE
