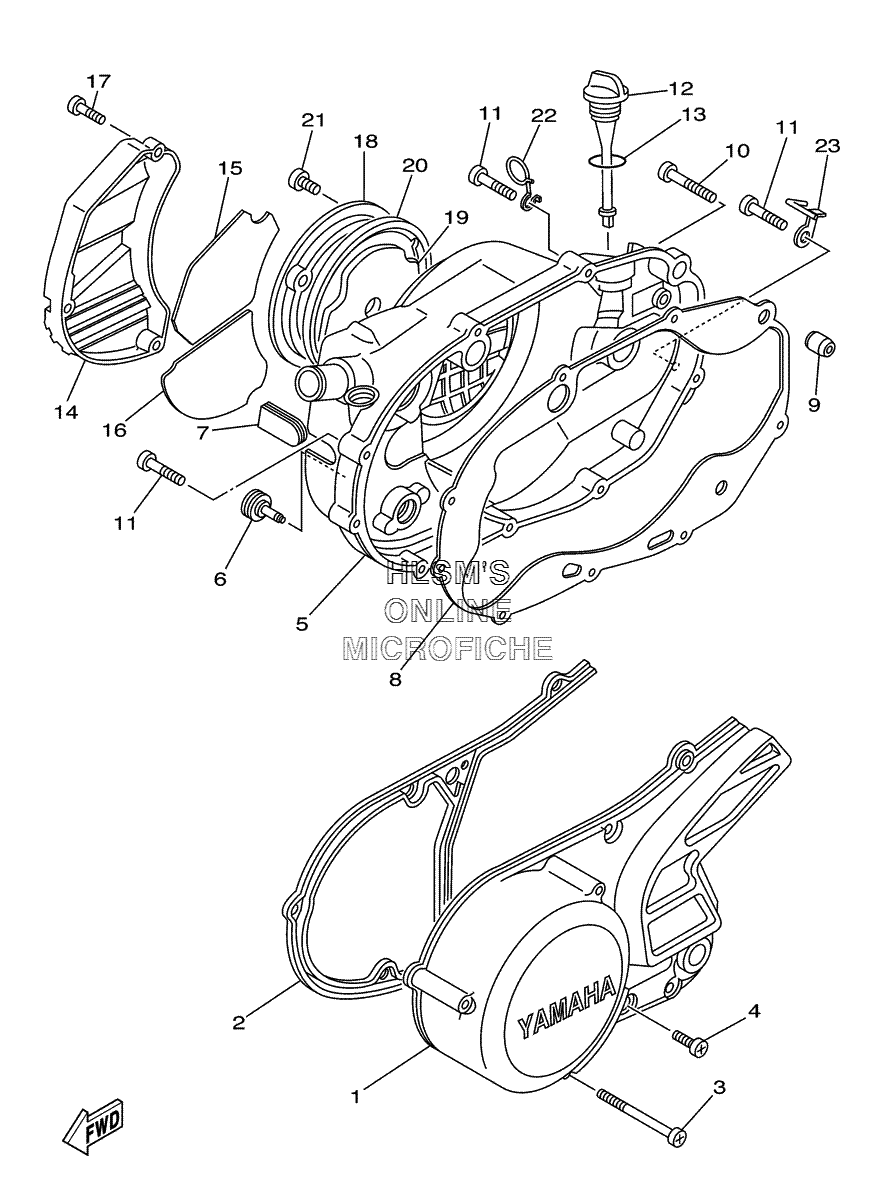

CRANKCASE COVER для Yamaha BANSHEE YFZ350T - 2005 года выпуска
-
№АртикулНазвание
-
12GU-15411-00-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
22GU-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
398507-06055-00 SCREW, PAN HEADSCREW, PAN HEAD
-
498507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
52GU-15421-00-00 COVER, CRANKCASE RCOVER, CRANKCASE R
-
62GU-15189-00-00 PLUGPLUG
-
790338-15189-00 PLUGPLUG
-
83GG-15461-02-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
999530-12016-00 PIN, DOWELPIN, DOWEL
-
1098507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1198507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
124L0-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1393210-19123-00 O-RINGO-RING
-
142GU-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
152GU-15337-00-00 DAMPER 4DAMPER 4
-
162GU-15338-00-00 DAMPER, ENGINE MOUNT 5DAMPER, ENGINE MOUNT 5
-
1798507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
184L0-15431-01-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
1931K-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
2048H-15327-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
2198507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2290465-32317-00 CLAMPCLAMP
-
235FK-15377-00-00 GUIDE, INLETGUIDE, INLET
