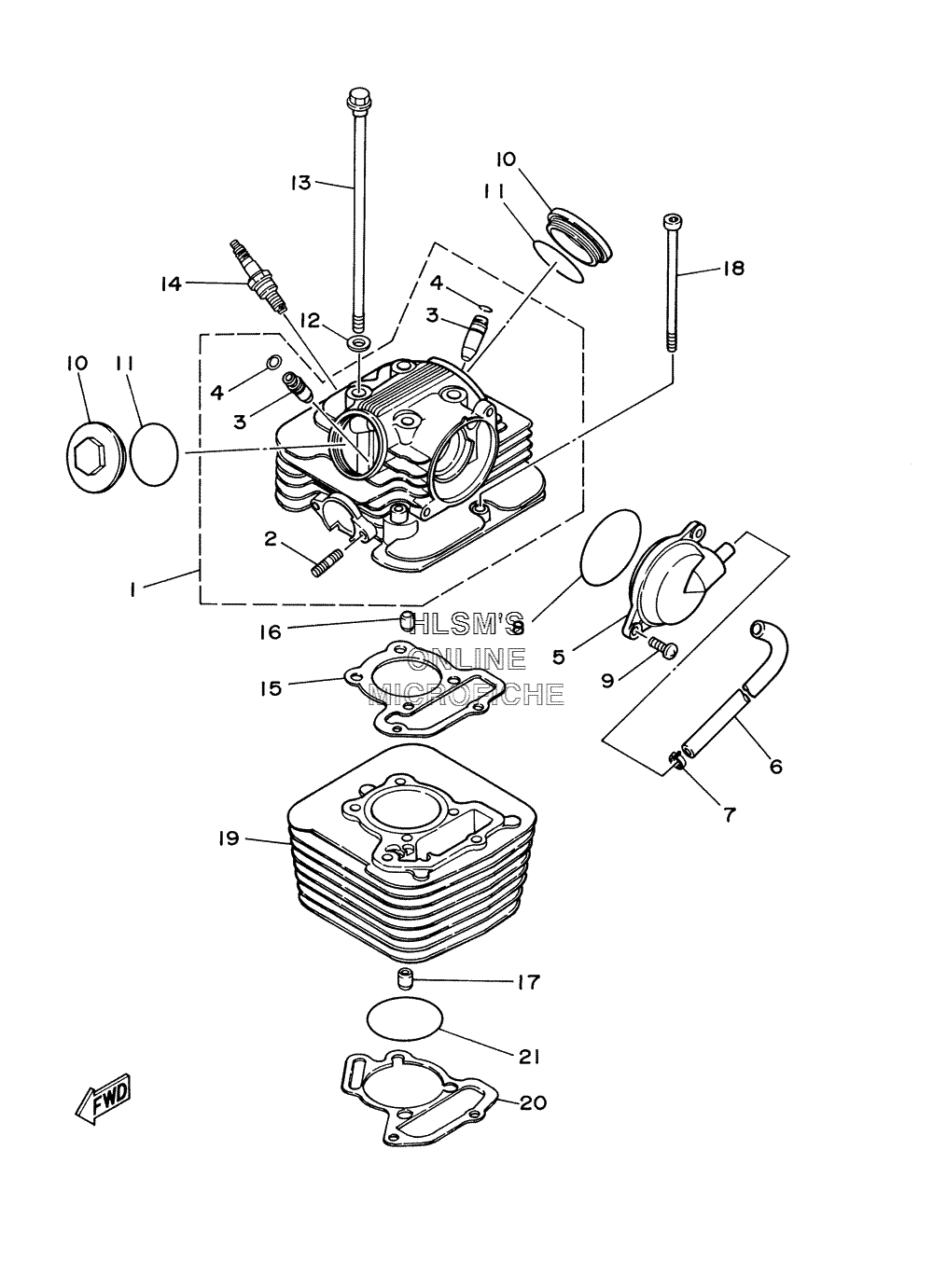

CYLINDER HEAD для Yamaha GRIZZLY 125 YFM125GT - 2005 года выпуска
-
№АртикулНазвание
-
13FA-11102-04-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
290116-06541-00 ...BOLT, STUD...BOLT, STUD
-
322F-11134-10-00 ...GUIDE, EXST VLV 1 O/S...GUIDE, EXST VLV 1 O/S
-
493440-10109-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
53FA-11160-00-00 BREATHER ASSY.BREATHER ASSY.
-
63FA-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
790467-13064-00 CLIPCLIP
-
893210-63556-00 O-RINGO-RING
-
998507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1022F-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1193210-44704-00 O-RINGO-RING
-
1290201-08609-00 WASHER, PLATEWASHER, PLATE
-
1390105-08324-00 BOLT, FLANGEBOLT, FLANGE
-
1494701-00366-00 PLUG, SPARK (NGK CR7HSA)PLUG, SPARK (NGK CR7HSA)
-
1550M-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1699530-10114-00 PIN, DOWELPIN, DOWEL
-
1799530-10114-00 PIN, DOWELPIN, DOWEL
-
1891317-06110-00 BOLTBOLT
-
1891317-06110-00 BOLTBOLT
-
193FA-11310-00-00 CYLINDERCYLINDER
-
203FA-11351-10-00 GASKET, CYLINDERGASKET, CYLINDER
-
2193210-53679-00 O-RINGO-RING
