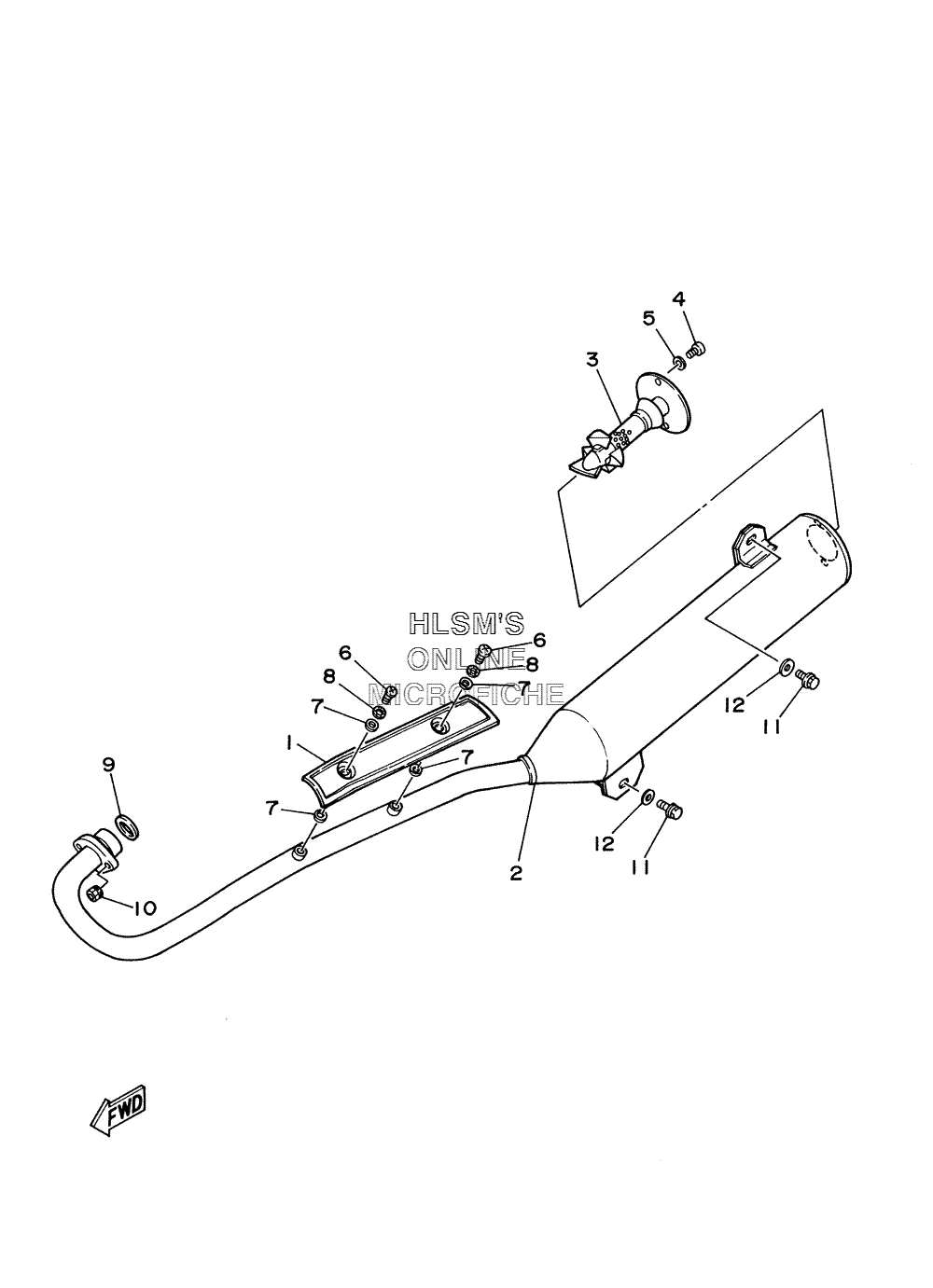

EXHAUST для Yamaha GRIZZLY 125 YFM125GT - 2005 года выпуска
-
№АртикулНазвание
-
13FA-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
23FA-14711-00-00 MUFFLER LMUFFLER L
-
355X-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
498507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
698907-06010-00 SCREW, BINDSCREW, BIND
-
74BD-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
890206-06090-00 WASHER, WAVEWASHER, WAVE
-
93DM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1095707-06500-00 NUT, FLANGENUT, FLANGE
-
1195817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-08326-00 WASHER, PLATEWASHER, PLATE
