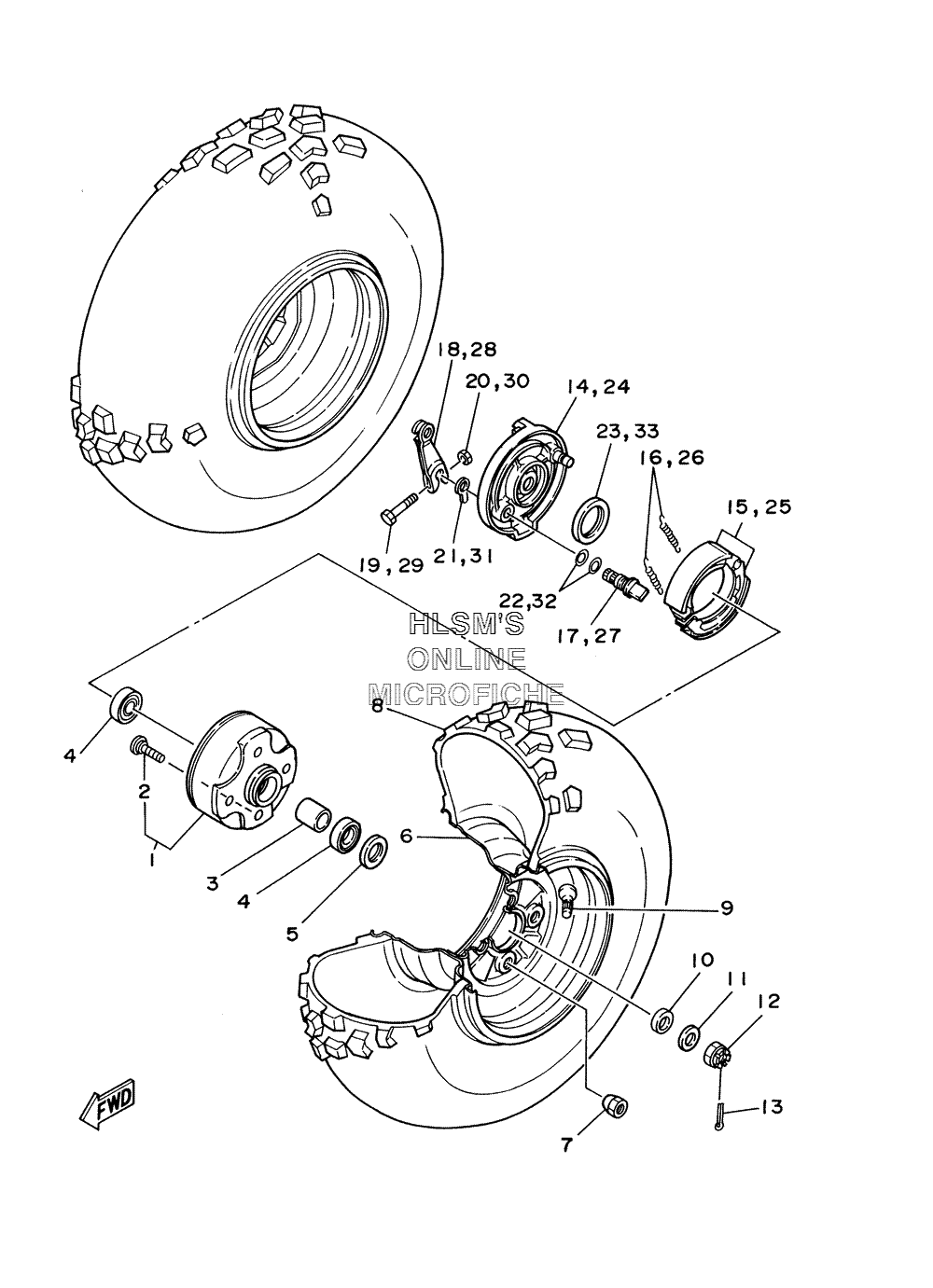

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 125 YFM125GT - 2005 года выпуска
-
№АртикулНазвание
-
13FA-25111-00-00 HUB, FRONTHUB, FRONT
-
290114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
33FA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
493306-00308-00 BEARINGBEARING
-
593102-23275-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
63FA-25180-00-35 WHEEL FRONT (SL)WHEEL FRONT (SL)
-
790179-10540-00 NUTNUT
-
894107-086W7-00 TIRE (AT20X7-8*KT536A T/L N)TIRE (AT20X7-8*KT536A T/L N)
-
993900-00022-00 VALVE, RIMVALVE, RIM
-
1090387-175R2-00 COLLARCOLLAR
-
1190201-14586-00 WASHER, PLATEWASHER, PLATE
-
1290171-14020-00 NUT, CASTLENUT, CASTLE
-
1391401-30025-00 PIN, SPLITPIN, SPLIT
-
143FA-25121-00-00 PLATE, BRAKE SHOE FOR LHPLATE, BRAKE SHOE FOR LH
-
154BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
1690506-15260-00 SPRING, TENSIONSPRING, TENSION
-
175G3-25351-02-00 CAMSHAFTCAMSHAFT
-
183FA-25155-00-00 LEVER, CAMSHAFT FOR LHLEVER, CAMSHAFT FOR LH
-
1990101-06278-00 BOLTBOLT
-
2095307-06600-00 NUTNUT
-
2152H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2293210-12327-00 O-RINGO-RING
-
2393102-40367-00 OIL SEALOIL SEAL
-
243FA-25169-00-00 PLATE, BRAKE SHOE FOR RHPLATE, BRAKE SHOE FOR RH
-
254BE-W2536-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
2690506-15260-00 SPRING, TENSIONSPRING, TENSION
-
275G3-25351-02-00 CAMSHAFTCAMSHAFT
-
283FA-25156-00-00 LEVER, CAMSHAFT FOR RHLEVER, CAMSHAFT FOR RH
-
2990101-06278-00 BOLTBOLT
-
3095307-06600-00 NUTNUT
-
3152H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
3293210-12327-00 O-RINGO-RING
-
3393102-40367-00 OIL SEALOIL SEAL
