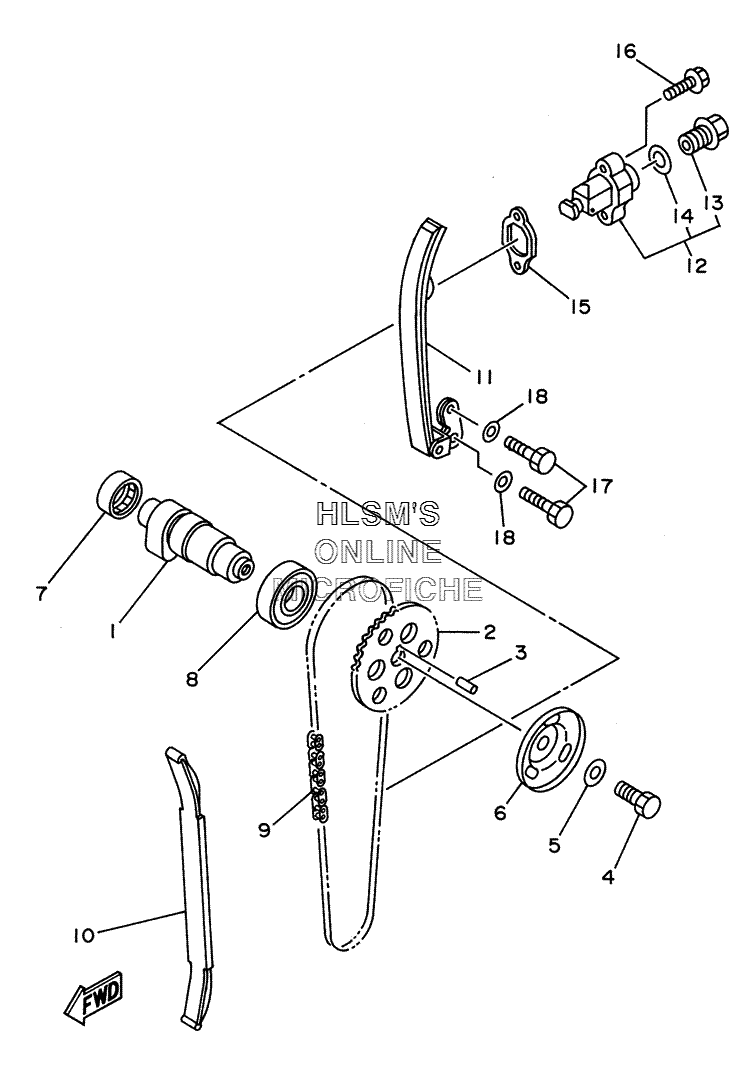

CAMSHAFT W/ CHAIN для Yamaha WOLVERINE 4x4 YFM350FXT - 2005 года выпуска
-
№АртикулНазвание
-
11UY-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
23HN-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
393604-10011-00 PIN, DOWELPIN, DOWEL
-
490101-10303-00 BOLTBOLT
-
590201-10591-00 WASHER, PLATEWASHER, PLATE
-
64KB-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
793315-32516-00 BEARING, CYL.#15BEARING, CYL.#15
-
893306-00515-00 BEARINGBEARING
-
994500-02090-00 CHAIN (BF05M 90L)CHAIN (BF05M 90L)
-
103Y1-12231-01-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
114KB-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1231G-12210-01-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
1331G-12222-00-00 ...PLUG...PLUG
-
1431G-12214-00-00 ...GASKET...GASKET
-
153GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1695027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1797027-06016-00 BOLTBOLT
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
