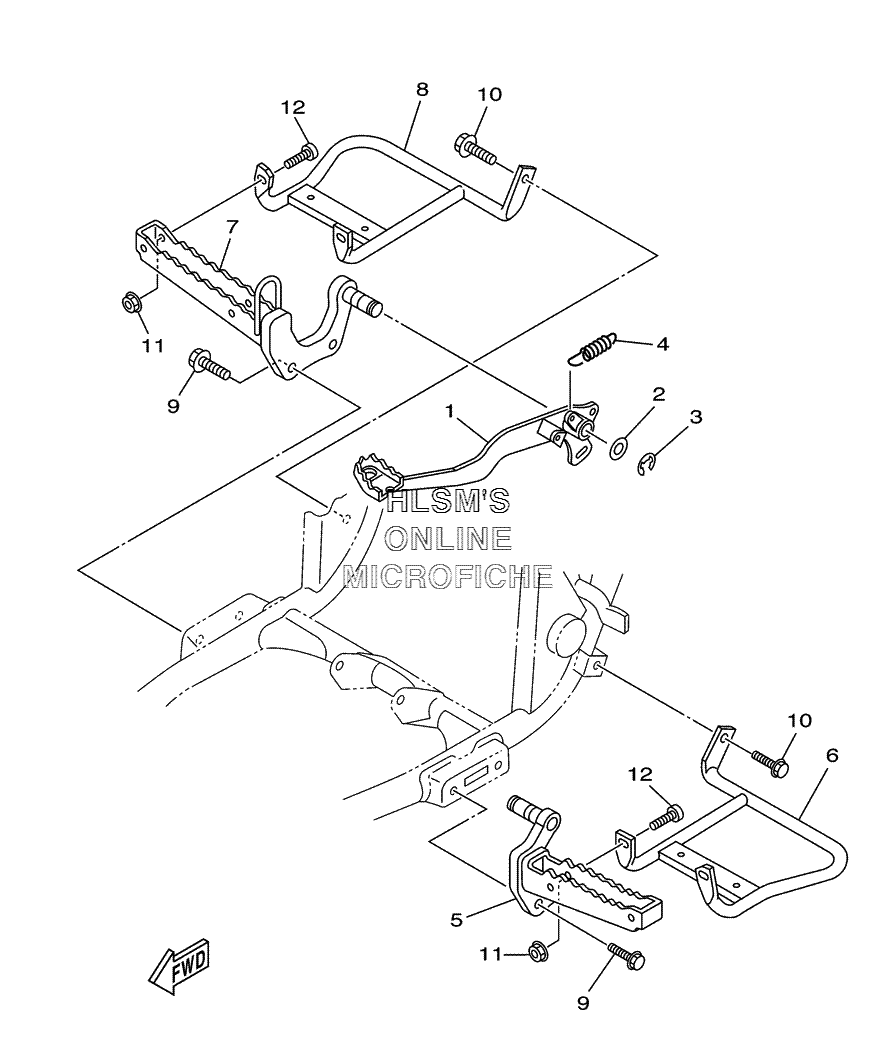

FOOTREST W/ BRAKE PEDAL для Yamaha WOLVERINE 4x4 YFM350FXT - 2005 года выпуска
-
№АртикулНазвание
-
14KB-27211-20-00 PEDAL, BRAKEPEDAL, BRAKE
-
290201-15797-00 WASHER, PLATEWASHER, PLATE
-
393430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
490506-20492-00 SPRING, TENSIONSPRING, TENSION
-
54KB-27411-00-00 FOOTREST 1FOOTREST 1
-
64KB-27445-00-00 PLATE 1PLATE 1
-
74KB-27421-00-00 FOOTREST 2FOOTREST 2
-
84KB-27446-00-00 PLATE 2PLATE 2
-
995817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1095827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1195707-08500-00 NUT, FLANGENUT, FLANGE
-
1292017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
