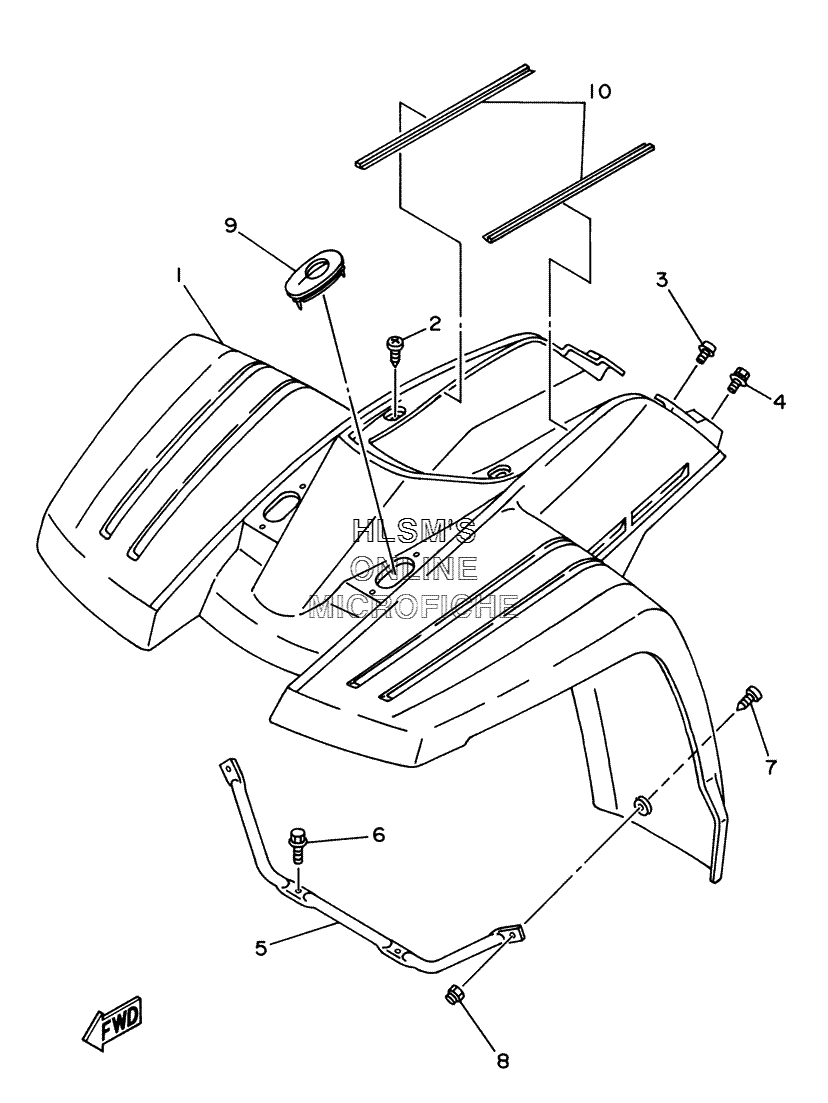

FENDER - FRONT для Yamaha WOLVERINE 4x4 YFM350FXT - 2005 года выпуска
-
№АртикулНазвание
-
14KB-W2151-61-00 FRONT FENDER COMP. FOR YBFRONT FENDER COMP. FOR YB
-
14KB-W2151-71-00 FRONT FENDER COMP. FOR BWS1FRONT FENDER COMP. FOR BWS1
-
290149-06306-00 SCREWSCREW
-
390159-06059-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
54KB-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
695827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
790149-06306-00 SCREWSCREW
-
895607-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
94KB-21541-00-00 DAMPER 1DAMPER 1
-
104KB-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
