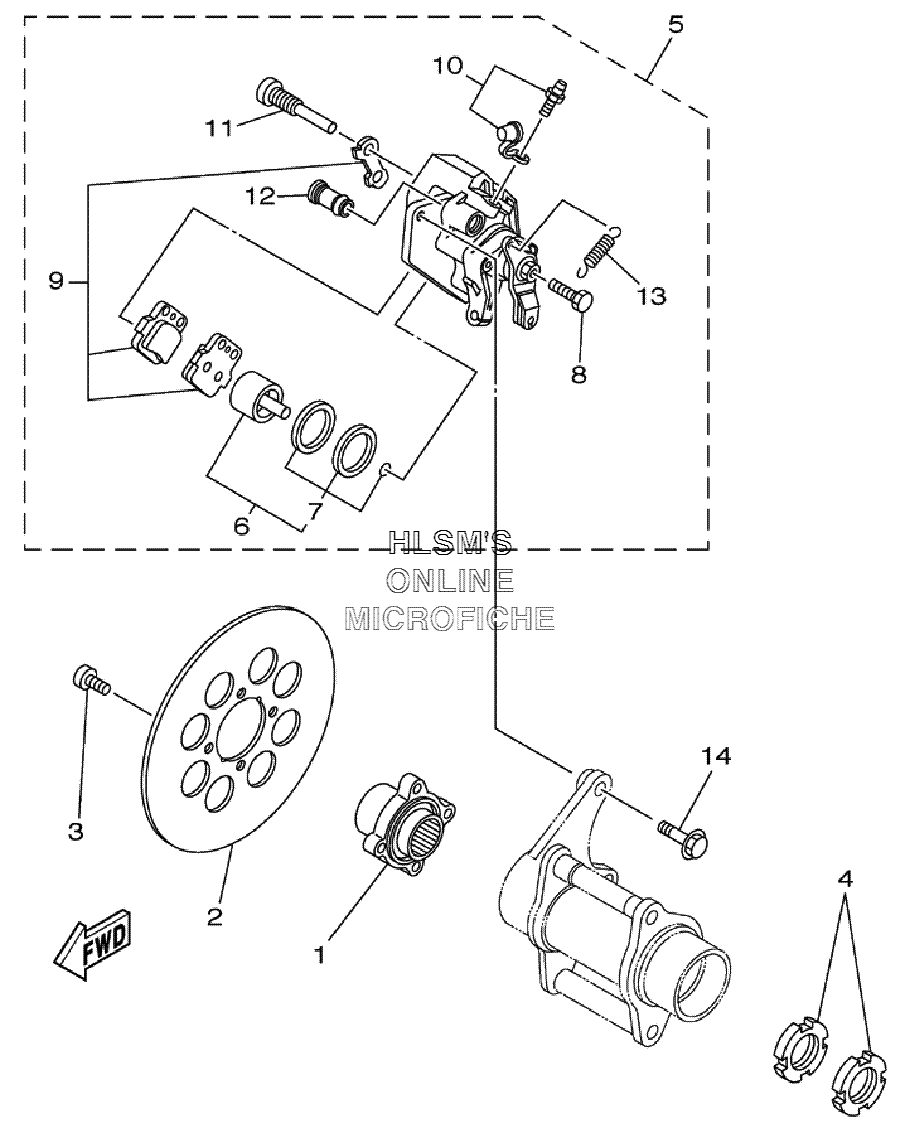

BRAKE - REAR CALIPER для Yamaha BANSHEE YFZ350V - 2006 года выпуска
-
№АртикулНазвание
-
12GU-25712-00-00 BRACKET, DISCBRACKET, DISC
-
25FK-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390109-081F0-00 BOLTBOLT
-
490170-33376-00 NUTNUT
-
51UY-2580W-00-00 CALIPER ASSY., REAR 2CALIPER ASSY., REAR 2
-
61UY-W0057-50-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
71UY-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-25972-51-00 ...ADJUSTBOLT...ADJUSTBOLT
-
91UY-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
101UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
111UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
121UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
131UY-25977-51-00 ...SPRING, RETURN...SPRING, RETURN
-
1490105-08440-00 BOLT, WASHER BASEDBOLT, WASHER BASED
