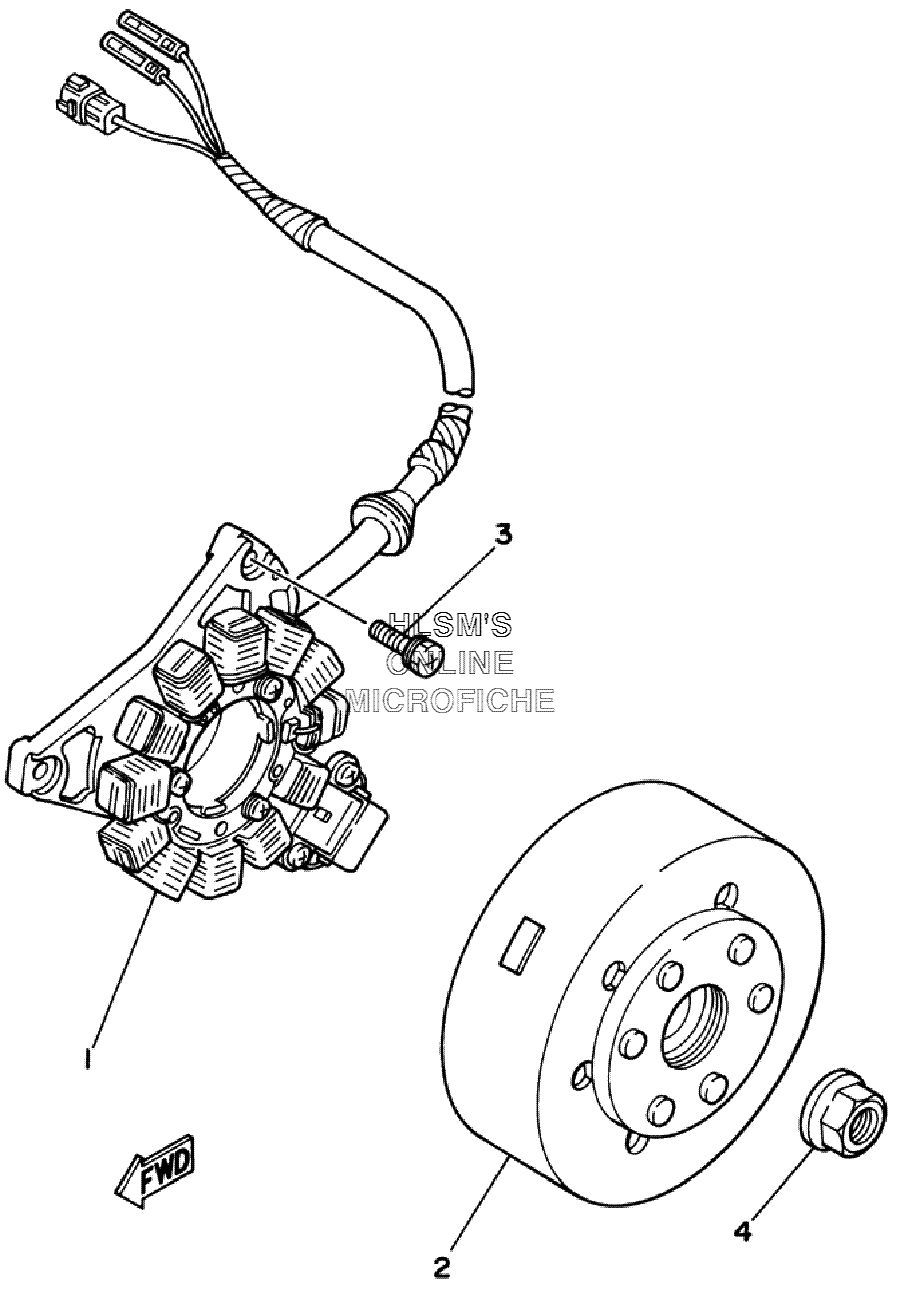

GENERATOR для Yamaha BANSHEE YFZ350V - 2006 года выпуска
-
№АртикулНазвание
-
13GG-85510-01-00 STATOR ASSY.STATOR ASSY.
-
23GG-85550-00-00 ROTOR ASSY.ROTOR ASSY.
-
390159-06076-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
490179-12248-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
