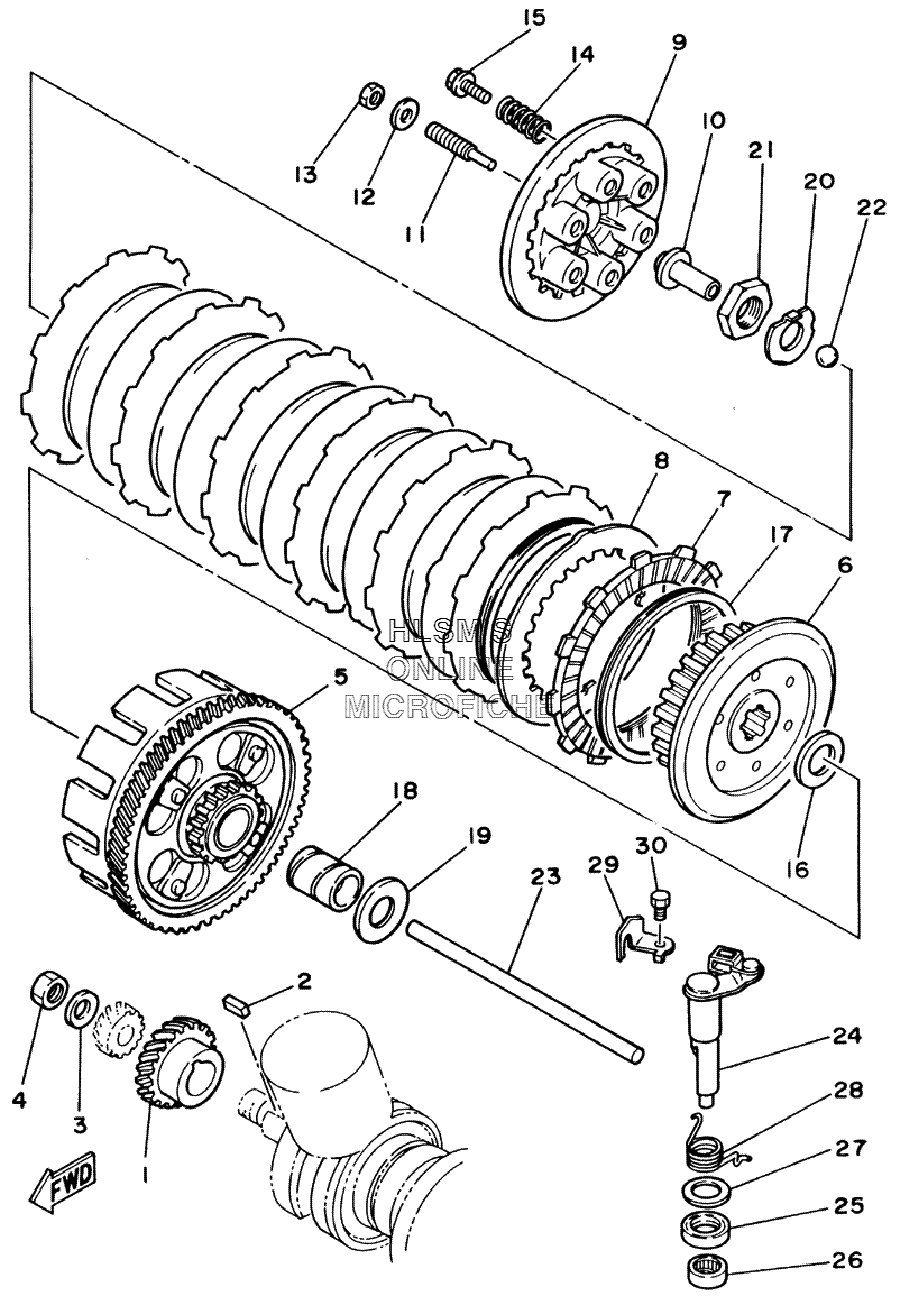

CLUTCH для Yamaha BANSHEE YFZ350V - 2006 года выпуска
-
№АртикулНазвание
-
14L0-16111-00-00 GEAR, PRIMARY DRIVE (23T)GEAR, PRIMARY DRIVE (23T)
-
290282-07023-00 KEY, STRAIGHTKEY, STRAIGHT
-
390208-16019-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
490170-16425-00 NUTNUT
-
531K-16150-10-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
61A0-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
75Y1-16331-01-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
8498-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
929L-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1029L-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1190149-08143-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1292907-08200-00 WASHERWASHER
-
1395317-08700-00 NUTNUT
-
1490501-23138-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1590159-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
16360-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
17278-16367-00-00 RING, CUSHIONRING, CUSHION
-
18278-16181-01-00 SPACER 1SPACER 1
-
19360-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
2090215-20223-00 WASHER, LOCKWASHER, LOCK
-
2190170-20320-00 NUTNUT
-
2293515-32029-00 BALL 15/32BALL 15/32
-
2329L-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2429L-16380-00-00 PUSH LEVER ASSY.PUSH LEVER ASSY.
-
2593102-17004-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2693315-11720-00 BEARING, CYL.#15BEARING, CYL.#15
-
2790201-17327-00 WASHER, PLATEWASHER, PLATE
-
2890508-16599-00 SPRING, TORSIONSPRING, TORSION
-
2990465-16239-00 CLAMPCLAMP
-
3097007-06010-00 BOLTBOLT
