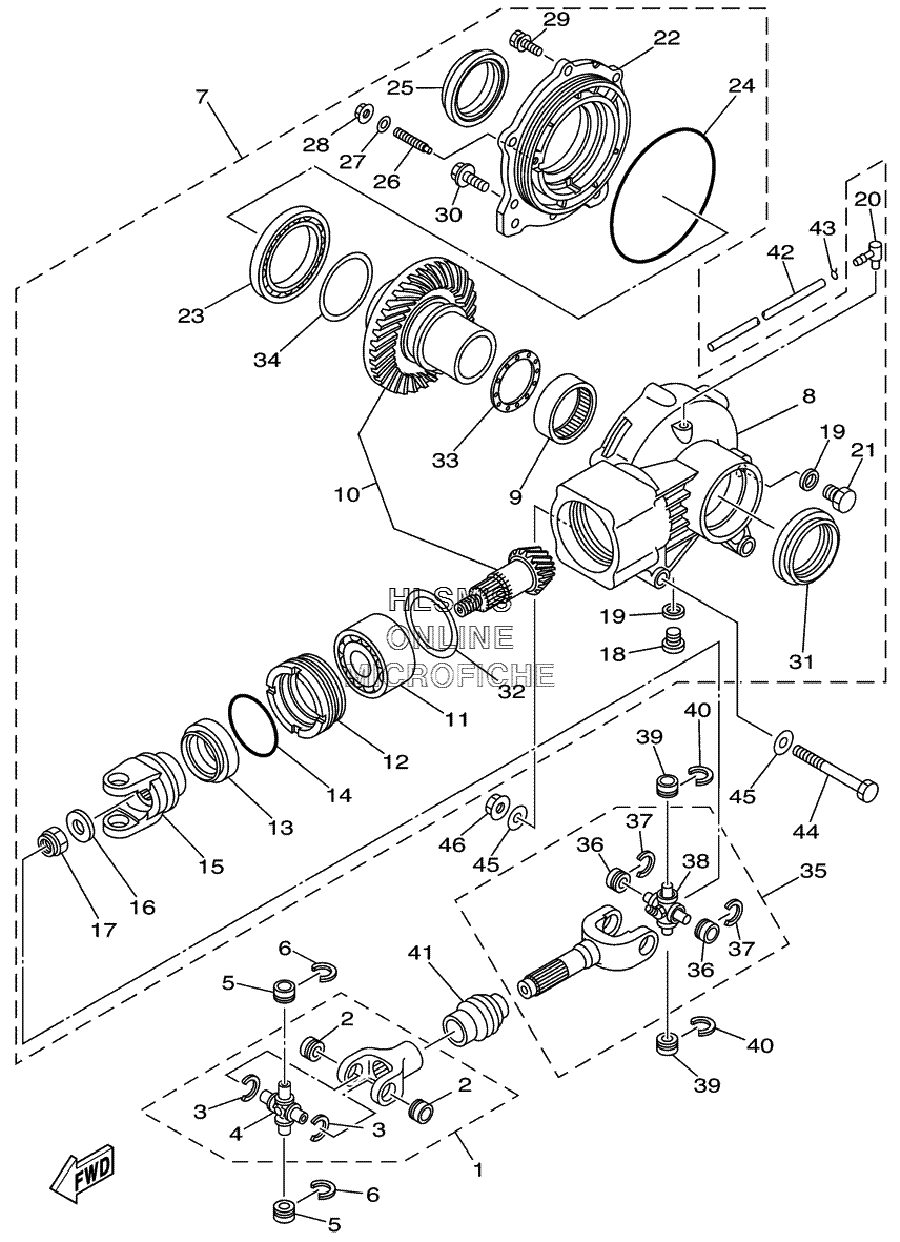

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha KODIAK 400 4x4 YFM4FAHV - 2006 года выпуска
-
№АртикулНазвание
-
11D9-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
293399-99948-00 ...BEARING...BEARING
-
393440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
45GT-46187-00-00 ...SPIDER...SPIDER
-
593399-99948-00 BEARINGBEARING
-
693440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
71D9-G6101-00-00 REAR AXLE GEAR CASE ASSY.REAR AXLE GEAR CASE ASSY.
-
81D9-G6151-00-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
993317-855Y9-00 BEARINGBEARING
-
101D9-461A0-00-00 RING GEAR SETRING GEAR SET
-
1193305-005Y0-00 BEARINGBEARING
-
121D9-44583-00-00 NUTNUT
-
1393102-44454-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1493210-626A7-00 O-RINGO-RING
-
151D9-46186-00-00 YOKE, JOINTYOKE, JOINT
-
1690201-14633-00 WASHER, PLATEWASHER, PLATE
-
1790185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
19214-11198-01-00 GASKETGASKET
-
205UG-15371-00-00 BREATHERBREATHER
-
2190340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
221D9-G6152-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2393316-013Y0-00 BEARINGBEARING
-
2493211-39569-00 O-RINGO-RING
-
2593102-60800-00 OIL SEALOIL SEAL
-
262HR-46156-00-00 STOPPER, RING GEARSTOPPER, RING GEAR
-
2790201-08087-00 WASHER, PLATEWASHER, PLATE
-
2895707-08500-00 NUT, FLANGENUT, FLANGE
-
299752P-08525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3095817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
3193102-60800-00 OIL SEALOIL SEAL
-
321D9-G6119-00-00 SHIM, THRUST (T=0.15MM) (OPT)SHIM, THRUST (T=0.15MM) (OPT)
-
321D9-G6119-10-00 SHIM, THRUST (T=0.30MM) (OPT)SHIM, THRUST (T=0.30MM) (OPT)
-
321D9-G6119-20-00 SHIM, THRUST (T=0.40MM) (OPT)SHIM, THRUST (T=0.40MM) (OPT)
-
321D9-G6119-30-00 SHIM, THRUST (T=0.45MM) (OPT)SHIM, THRUST (T=0.45MM) (OPT)
-
321D9-G6119-40-00 SHIM, THRUST (T=0.50MM) (OPT)SHIM, THRUST (T=0.50MM) (OPT)
-
334XE-G6118-10-00 SHIM, THRUST (T=1.0MM) (OPT)SHIM, THRUST (T=1.0MM) (OPT)
-
334XE-G6118-11-00 SHIM, THRUST (T=1.1MM) (OPT)SHIM, THRUST (T=1.1MM) (OPT)
-
334XE-G6118-12-00 SHIM, THRUST (T=1.2MM) (OPT)SHIM, THRUST (T=1.2MM) (OPT)
-
334XE-G6118-13-00 SHIM, THRUST (T=1.3MM) (OPT)SHIM, THRUST (T=1.3MM) (OPT)
-
334XE-G6118-14-00 SHIM, THRUST (T=1.4MM) (OPT)SHIM, THRUST (T=1.4MM) (OPT)
-
334XE-G6118-15-00 SHIM, THRUST (T=1.5MM) (OPT)SHIM, THRUST (T=1.5MM) (OPT)
-
334XE-G6118-16-00 SHIM, THRUST (T=1.6MM) (OPT)SHIM, THRUST (T=1.6MM) (OPT)
-
334XE-G6118-17-00 SHIM, THRUST (T=1.7MM) (OPT)SHIM, THRUST (T=1.7MM) (OPT)
-
334XE-G6118-18-00 SHIM, THRUST (T=1.8MM) (OPT)SHIM, THRUST (T=1.8MM) (OPT)
-
334XE-G6118-19-00 SHIM, THRUST (T=1.9MM) (OPT)SHIM, THRUST (T=1.9MM) (OPT)
-
334XE-G6118-20-00 SHIM, THRUST (T=2.0MM) (OPT)SHIM, THRUST (T=2.0MM) (OPT)
-
334XE-G6118-21-00 SHIM, THRUST (T=2.1MM) (OPT)SHIM, THRUST (T=2.1MM) (OPT)
-
344XE-G6117-25-00 SHIM, RING GEAR (T=0.25MM) (OPT)SHIM, RING GEAR (T=0.25MM) (OPT)
-
344XE-G6117-30-00 SHIM, RING GEAR (T=0.30MM) (OPT)SHIM, RING GEAR (T=0.30MM) (OPT)
-
344XE-G6117-35-00 SHIM, RING GEAR (T=0.35MM) (OPT)SHIM, RING GEAR (T=0.35MM) (OPT)
-
344XE-G6117-40-00 SHIM, RING GEAR (T=0.40MM) (OPT)SHIM, RING GEAR (T=0.40MM) (OPT)
-
344XE-G6117-45-00 SHIM, RING GEAR (T=0.45MM) (OPT)SHIM, RING GEAR (T=0.45MM) (OPT)
-
344XE-G6117-50-00 SHIM, RING GEAR (T=0.50MM) (OPT)SHIM, RING GEAR (T=0.50MM) (OPT)
-
351D9-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
3693399-99948-00 ...BEARING...BEARING
-
3793440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
385GT-46187-00-00 ...SPIDER...SPIDER
-
3993399-99948-00 BEARINGBEARING
-
4093440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
415GT-46136-00-00 SEAL 1SEAL 1
-
4290445-078C4-00 HOSE (L900)HOSE (L900)
-
4390467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
4490105-10111-00 BOLT, FLANGEBOLT, FLANGE
-
4590201-10131-00 WASHER, PLATEWASHER, PLATE
-
4695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
