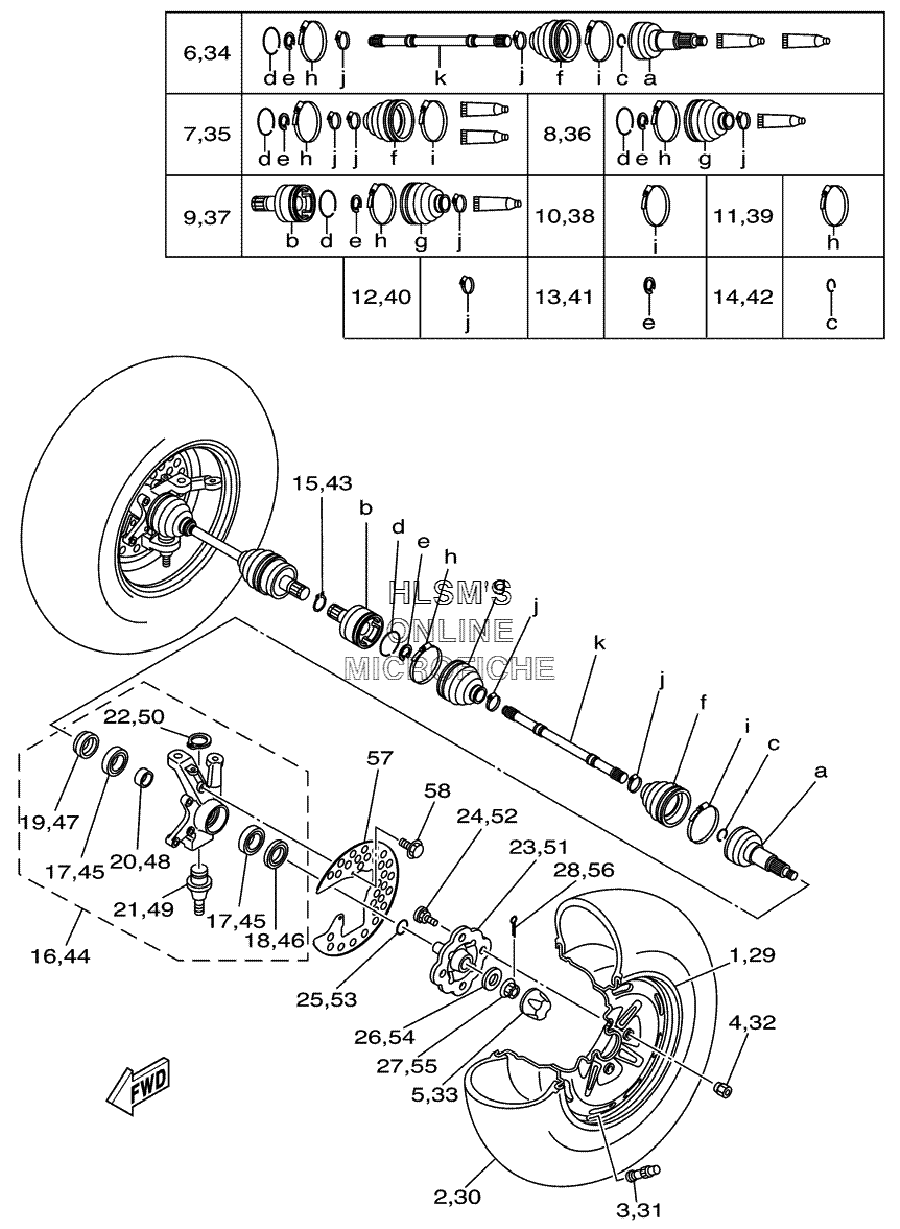

WHEEL - FRONT W/ AXLE ASSY для Yamaha KODIAK 400 4x4 YFM4FAHV - 2006 года выпуска
-
№АртикулНазвание
-
11D9-F5180-10-00 WHEEL COMP. (BLACK)WHEEL COMP. (BLACK)
-
294108-12802-00 TIRE (AT25X8-12 M911Y) (CHENG SHIN)TIRE (AT25X8-12 M911Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65TE-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
75GH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
83HN-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
113HN-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CIRCLIPCIRCLIP
-
1593450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
161D9-F3501-02-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
1793306-006Y2-00 ...BEARING...BEARING
-
1893106-38046-00 ...OIL SEAL...OIL SEAL
-
1993106-38047-00 ...OIL SEAL...OIL SEAL
-
2090387-30008-00 ...COLLAR...COLLAR
-
215FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2293410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
235ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
2490114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
2593210-27666-00 O-RINGO-RING
-
2690201-168R1-00 WASHER, PLATEWASHER, PLATE
-
2790171-16001-00 NUT, CASTLENUT, CASTLE
-
2891401-30030-00 PIN, COTTERPIN, COTTER
-
291D9-F5180-10-00 WHEEL COMP. (BLACK)WHEEL COMP. (BLACK)
-
3094108-12802-00 TIRE (AT25X8-12 M911Y) (CHENG SHIN)TIRE (AT25X8-12 M911Y) (CHENG SHIN)
-
3193900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
3290179-10540-00 NUTNUT
-
335GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
345TE-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
355GH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
363HN-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
375GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
383HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
393HN-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
403HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
412HR-2512J-00-00 SNAP RINGSNAP RING
-
424KB-2512H-00-00 CIRCLIPCIRCLIP
-
4393450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
441D9-F3502-02-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
4593306-006Y2-00 ...BEARING...BEARING
-
4693106-38046-00 ...OIL SEAL...OIL SEAL
-
4793106-38047-00 ...OIL SEAL...OIL SEAL
-
4890387-30008-00 ...COLLAR...COLLAR
-
495FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
5093410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
515ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
5290114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
5393210-27666-00 O-RINGO-RING
-
5490201-168R1-00 WASHER, PLATEWASHER, PLATE
-
5590171-16001-00 NUT, CASTLENUT, CASTLE
-
5691401-30030-00 PIN, COTTERPIN, COTTER
-
571D9-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
589582P-06012-00 BOLT, FLANGEBOLT, FLANGE
