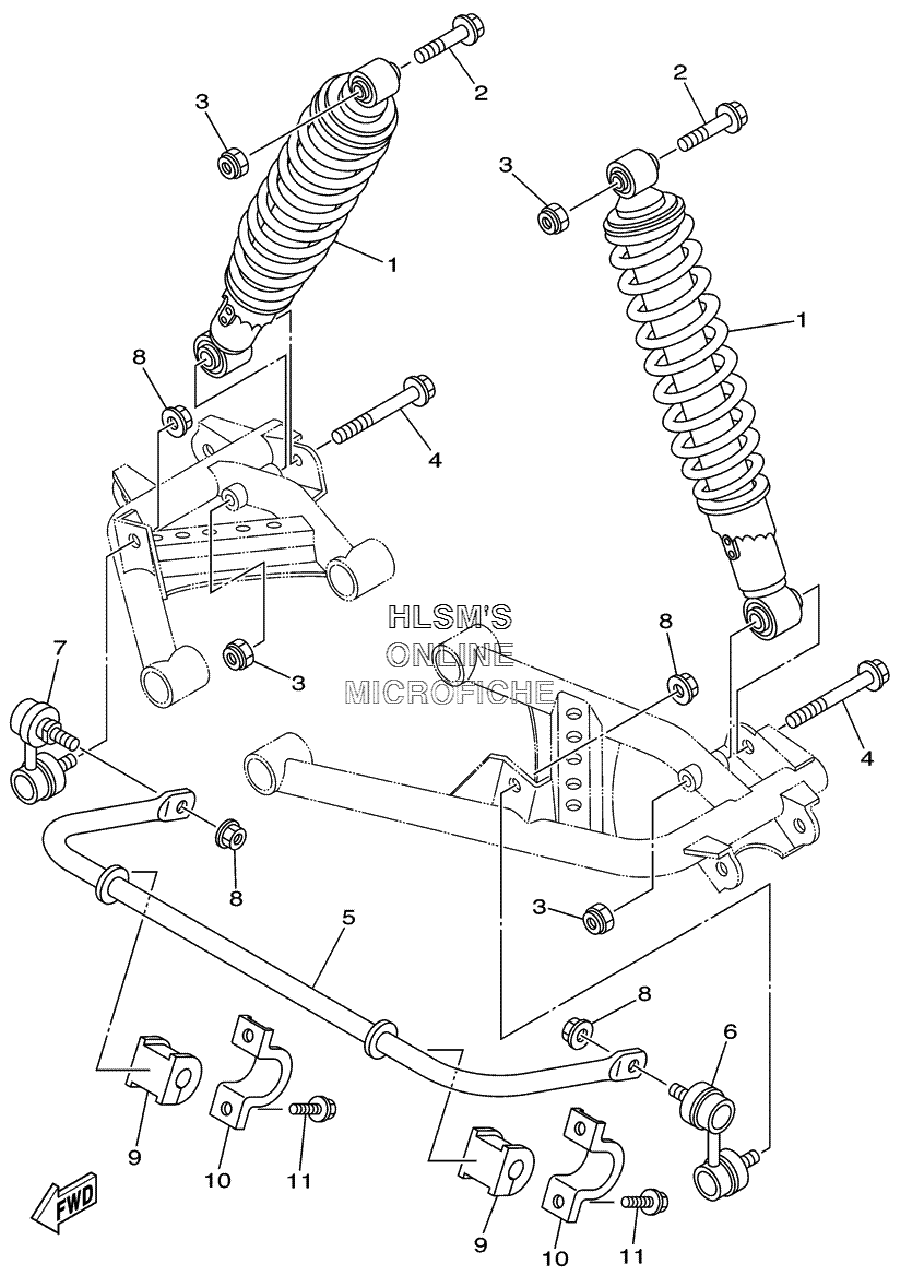

SUSPENSION - REAR SHOCK ABSORBER для Yamaha KODIAK 400 4x4 YFM4FAHV - 2006 года выпуска
-
№АртикулНазвание
-
11D9-F2210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
290105-108B1-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490105-10095-00 BOLT, FLANGEBOLT, FLANGE
-
51D9-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
65KM-2385L-01-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
75KM-2385M-01-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
895607-10200-00 NUT, U FLANGENUT, U FLANGE
-
91D9-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
101D9-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1195817-08012-00 BOLT, FLANGEBOLT, FLANGE
