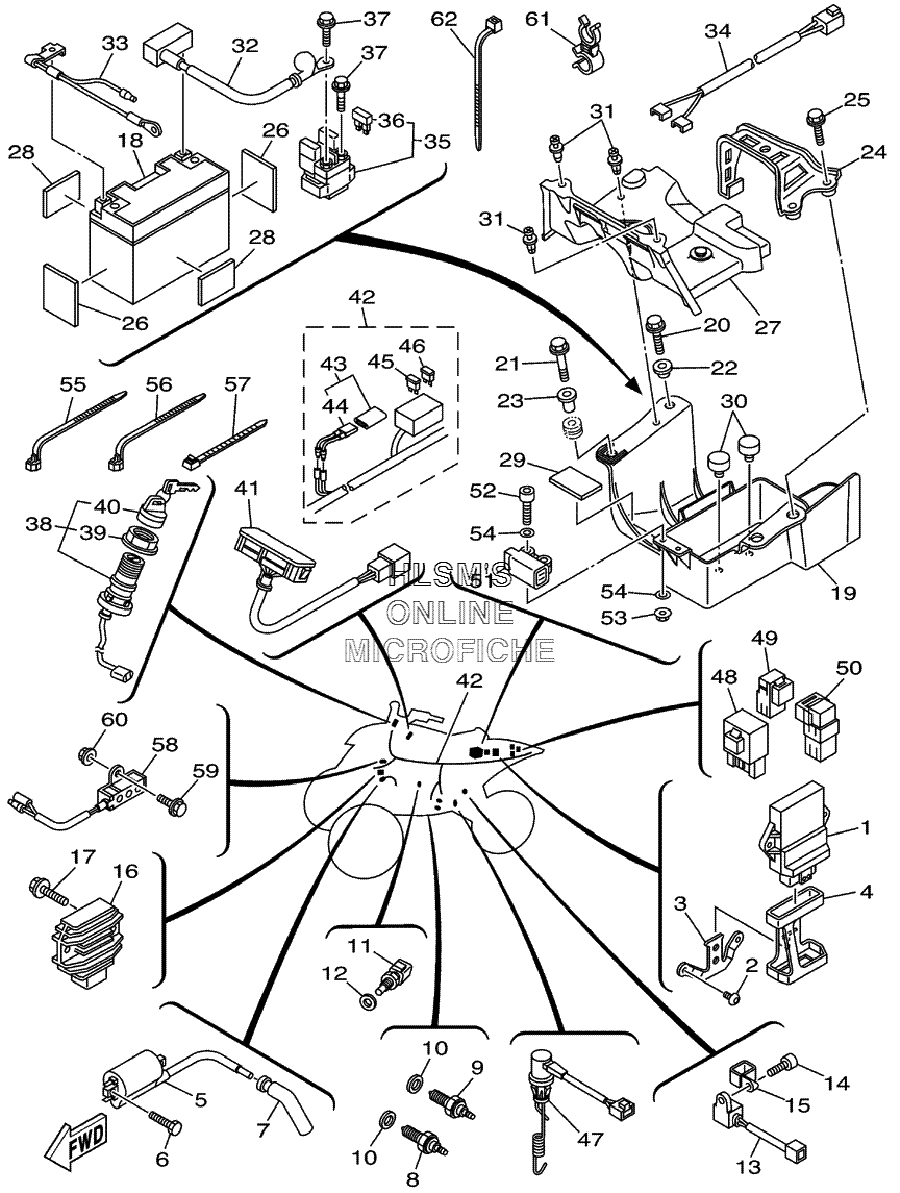

ELECTRICAL для Yamaha RAPTOR 700 50TH ANNIVERSARY YFM700RSPV - 2006 года выпуска
-
№АртикулНазвание
-
11S3-8591A-00-00 ENGINE CONTROL UNIT ASSY.ENGINE CONTROL UNIT ASSY.
-
292017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
31S3-21274-00-00 BRACKET, C.D.I. UNITBRACKET, C.D.I. UNIT
-
41S3-85546-00-00 BANDBAND
-
53TB-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
697002-05020-00 BOLTBOLT
-
75VK-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
85LP-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
93GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
1090430-10148-00 GASKETGASKET
-
115PS-85790-00-00 THERMOSENSOR ASSY.THERMOSENSOR ASSY.
-
1290430-12202-00 GASKETGASKET
-
131S3-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1491312-06016-00 BOLTBOLT
-
1590461-10004-00 CLAMPCLAMP
-
165BN-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
1795807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
185GJ-82100-01-00 BATTERY ASSY. (GS GT9B-4)BATTERY ASSY. (GS GT9B-4)
-
191S3-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
2090105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2195807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-06648-00 COLLARCOLLAR
-
2390387-063G3-00 COLLARCOLLAR
-
241S3-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
261S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
271S3-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
281S3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2922F-2139X-00-00 DAMPERDAMPER
-
305TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
3190269-06002-00 RIVETRIVET
-
321S3-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
331S3-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
341S3-82541-00-00 WIRE, LEADWIRE, LEAD
-
351S3-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
362GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
3795027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
385LP-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
393HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
403HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
411S3-83530-00-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
421S3-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
435GT-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
445GT-82560-00-00 ......THERMO SWITCH ASSY.......THERMO SWITCH ASSY.
-
455JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
465JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
471S3-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
485VK-81950-30-00 RELAY ASSY.RELAY ASSY.
-
495EA-81950-20-00 RELAY ASSY.RELAY ASSY.
-
505DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
515PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
5291317-04025-00 BOLTBOLT
-
5395707-04500-00 NUT, FLANGENUT, FLANGE
-
5490201-047A2-00 WASHER, PLATEWASHER, PLATE
-
5590464-13077-00 CLAMPCLAMP
-
5690464-15195-00 CLAMPCLAMP
-
5790465-13M11-00 CLAMPCLAMP
-
581S3-85370-00-00 RESISTOR ASSY.RESISTOR ASSY.
-
5995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
6095707-06500-00 NUT, FLANGENUT, FLANGE
-
6190464-16013-00 CLAMPCLAMP
-
6290465-10098-00 CLAMPCLAMP
