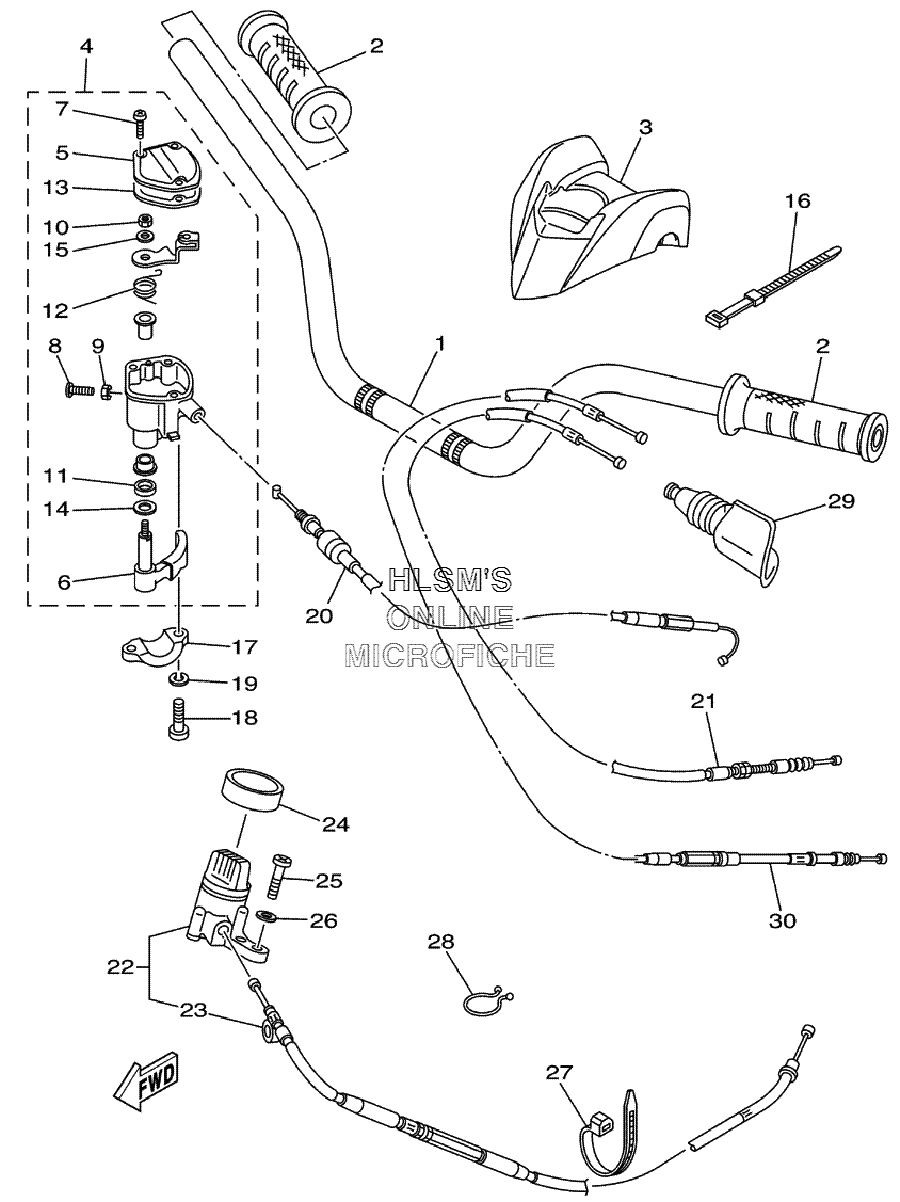

HANDLEBAR W/ CABLES для Yamaha RAPTOR 700 50TH ANNIVERSARY YFM700RSPV - 2006 года выпуска
-
№АртикулНазвание
-
11S3-26111-00-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
31S3-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
44KB-26250-20-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
54KB-2628F-20-00 ...CAP, GEAR...CAP, GEAR
-
61NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
790149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
995607-05100-00 ...NUT, U...NUT, U
-
1095307-05700-00 ...NUT...NUT
-
1193104-09025-00 ...OIL SEAL...OIL SEAL
-
121NV-26304-00-00 ...SPRING...SPRING
-
134KB-2628G-00-00 ...GASKET...GASKET
-
141NV-26129-00-00 ...WASHER...WASHER
-
151NV-26398-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
16437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
174V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1898507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
201S3-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
211S3-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
221S3-26150-00-00 REV. LEVER ASSY.REV. LEVER ASSY.
-
231S3-2637E-00-00 ...CABLE, CONTROL 1...CABLE, CONTROL 1
-
241S3-26113-00-00 DAMPERDAMPER
-
2598507-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692907-05600-00 WASHER, PLATEWASHER, PLATE
-
2790464-13073-00 CLAMPCLAMP
-
2890464-23041-00 CLAMPCLAMP
-
2931A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
301S3-26341-00-00 CABLE, BRAKECABLE, BRAKE
