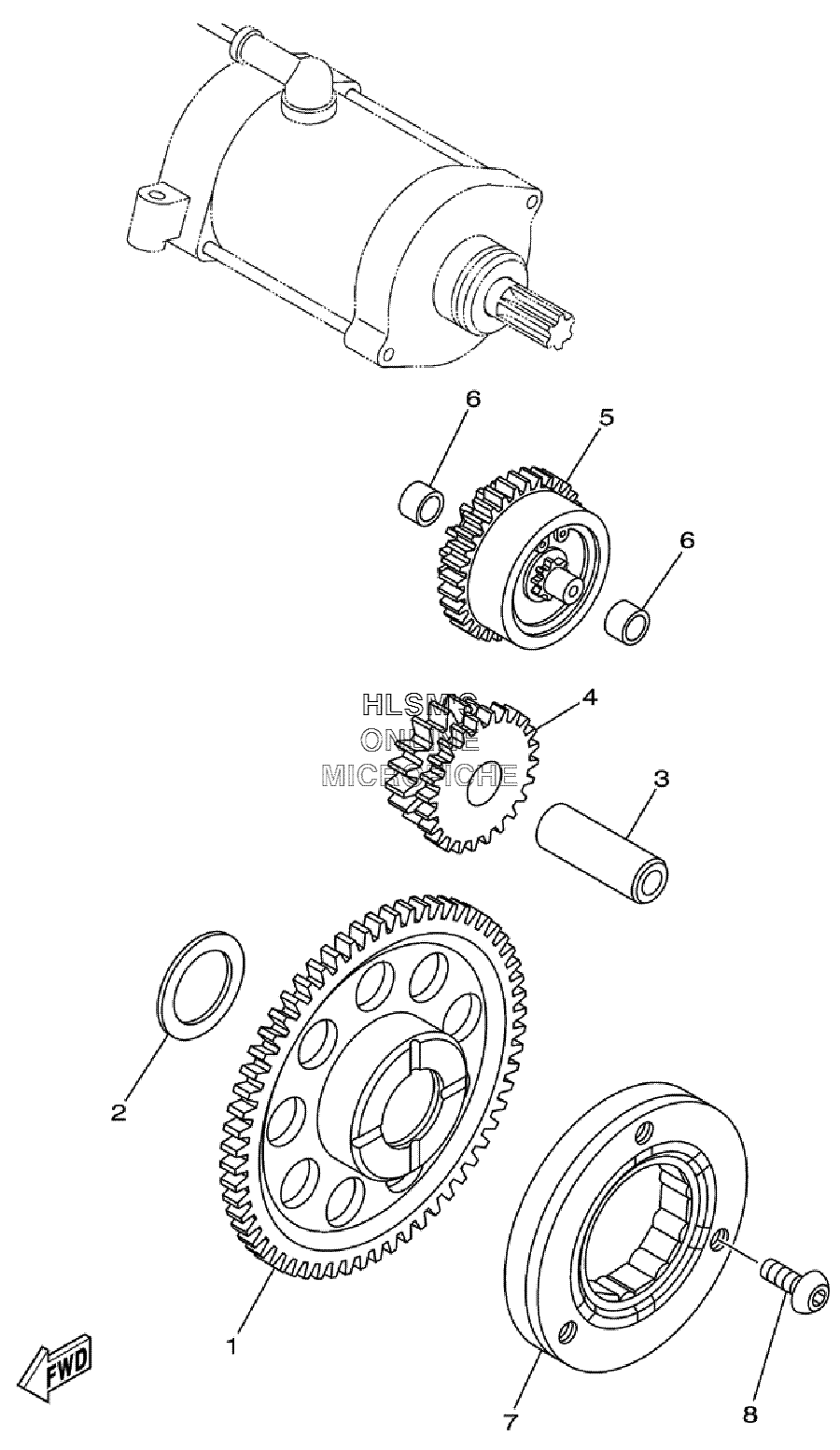

STARTER CLUTCH для Yamaha RAPTOR 700 50TH ANNIVERSARY YFM700RSPV - 2006 года выпуска
-
№АртикулНазвание
-
11S3-15515-00-00 GEAR 3GEAR 3
-
290201-286K9-00 WASHER, PLATEWASHER, PLATE
-
31VJ-15522-00-00 SHAFTSHAFT
-
41S3-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
51S3-15560-00-00 DAMPER ASSY.DAMPER ASSY.
-
690380-10002-00 BUSH, SOLIDBUSH, SOLID
-
75VK-15590-00-00 STARTER ONE-WAY ASSY.STARTER ONE-WAY ASSY.
-
890149-08018-00 SCREWSCREW
