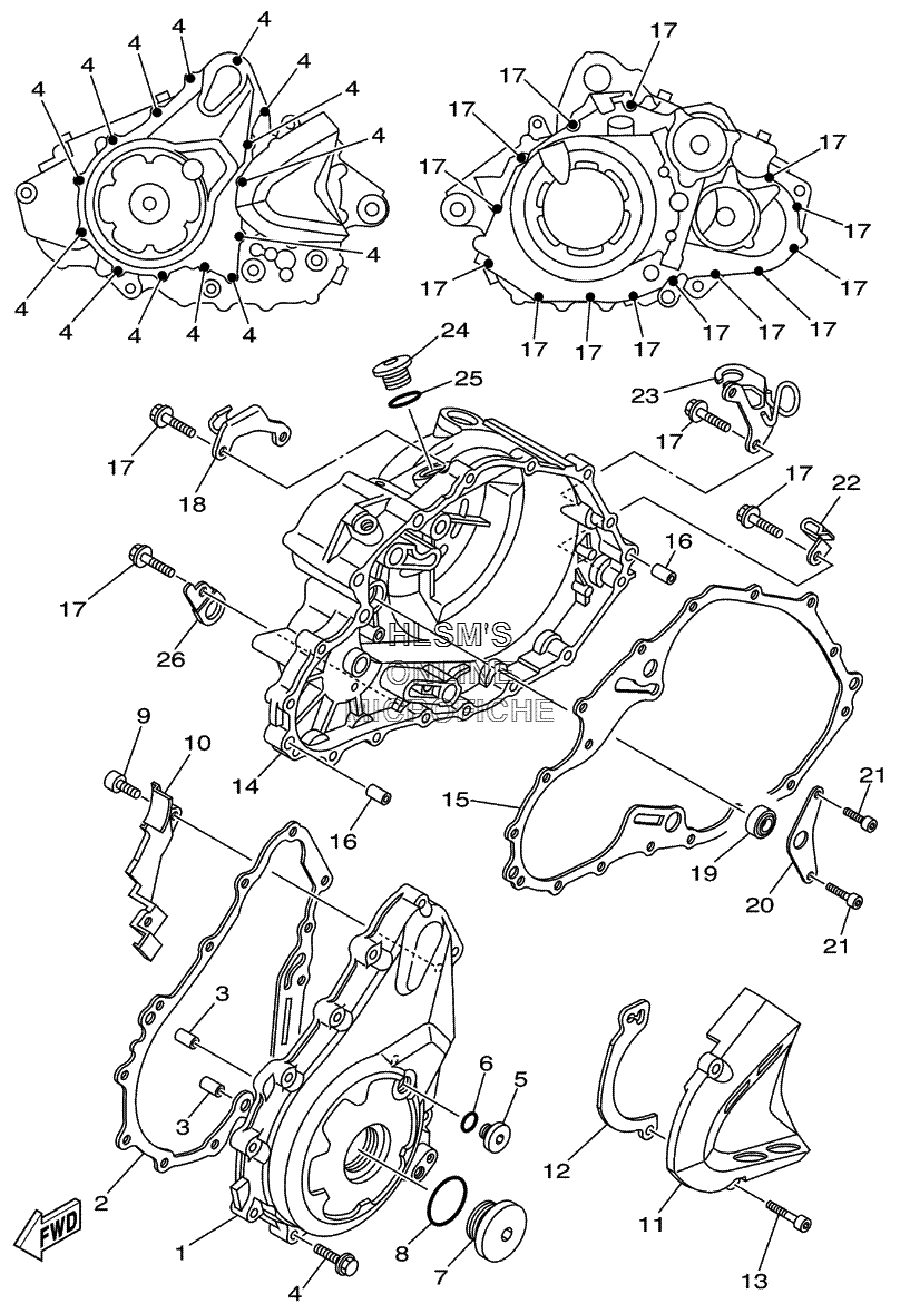

CRANKCASE COVER для Yamaha RAPTOR 700R YFM700RV - 2006 года выпуска
-
№АртикулНазвание
-
11S3-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
21S3-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
590340-14003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-14369-00 O-RINGO-RING
-
790340-36001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-357A3-00 O-RINGO-RING
-
990110-05031-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
101S3-15113-00-00 PLATEPLATE
-
111S3-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
121S3-17466-00-00 GUIDE, CHAINGUIDE, CHAIN
-
1391312-06025-00 BOLTBOLT
-
141S3-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
151S3-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1699530-10120-00 PIN, DOWELPIN, DOWEL
-
1795022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
181S3-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1993101-14164-00 OIL SEALOIL SEAL
-
201S3-15118-00-00 HOLDERHOLDER
-
2190110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290461-10011-00 CLAMPCLAMP
-
231S3-1546C-00-00 HOLDERHOLDER
-
241S3-15189-00-00 PLUGPLUG
-
2593210-22382-00 O-RINGO-RING
-
2690462-08046-00 CLAMPCLAMP
