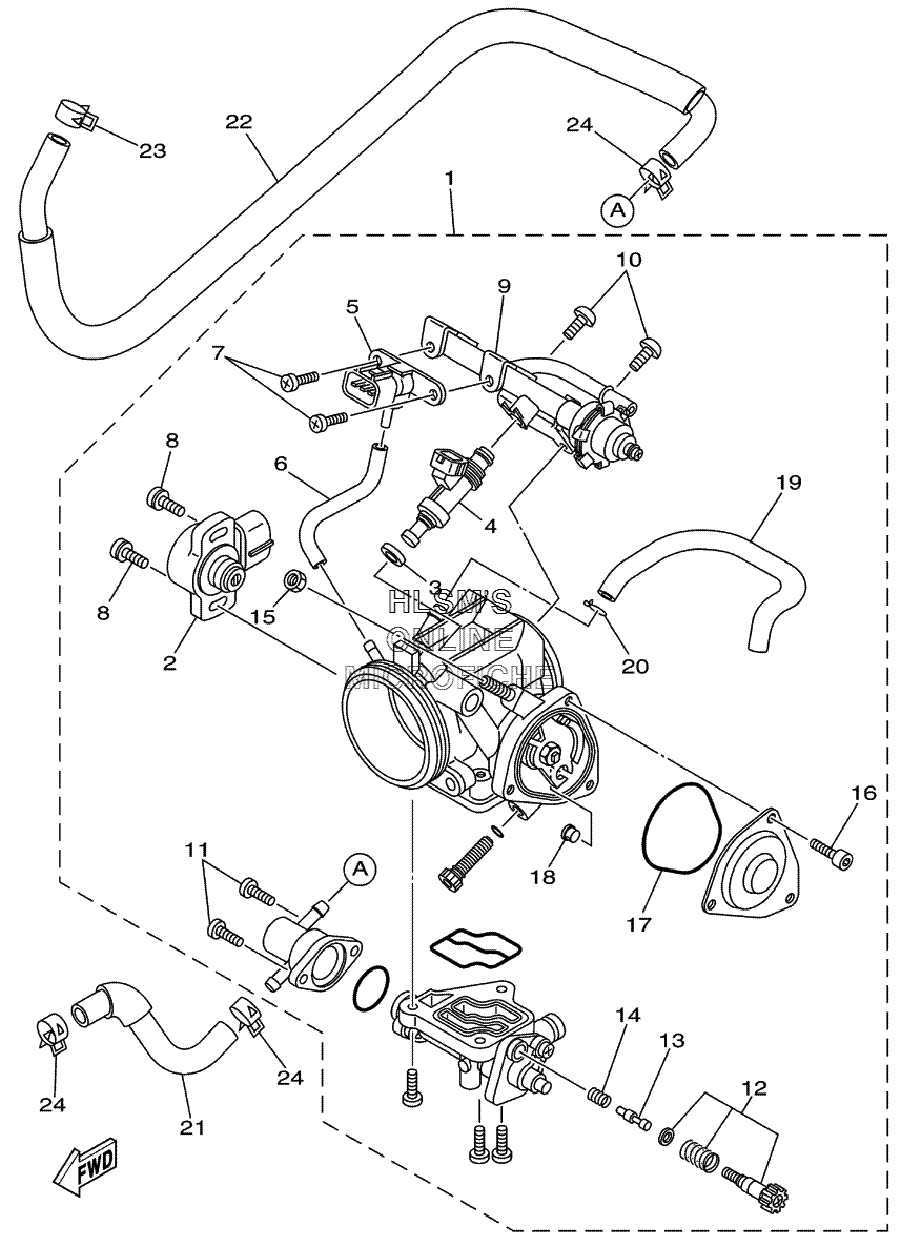

THROTTLE BODY ASSY. для Yamaha RAPTOR 700R YFM700RV - 2006 года выпуска
-
№АртикулНазвание
-
11S3-13750-00-00 THROTTLE BODY ASSY.THROTTLE BODY ASSY.
-
25PS-85885-01-00 ...THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY.
-
38FP-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
45VK-13761-00-00 ...INJECTOR ASSY....INJECTOR ASSY.
-
51C7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
65JW-14348-00-00 ...PIPE 1...PIPE 1
-
798507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
88CC-14216-10-00 ...SCREW...SCREW
-
91S3-13160-00-00 ...DELIVERY PIPE ASSY. 1...DELIVERY PIPE ASSY. 1
-
1098507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1198507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
125VX-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
131S3-13439-00-00 ...FLANGE, PIPE...FLANGE, PIPE
-
144BH-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
151S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
1691312-04006-00 ...BOLT...BOLT
-
174WV-14147-10-00 ...O-RING...O-RING
-
181UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
191S3-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
2090467-09006-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
211S3-1243A-00-00 HOSE 1HOSE 1
-
221S3-1243E-00-00 HOSE 2HOSE 2
-
2390467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
2490467-11090-00 CLIP, SCISSORCLIP, SCISSOR
