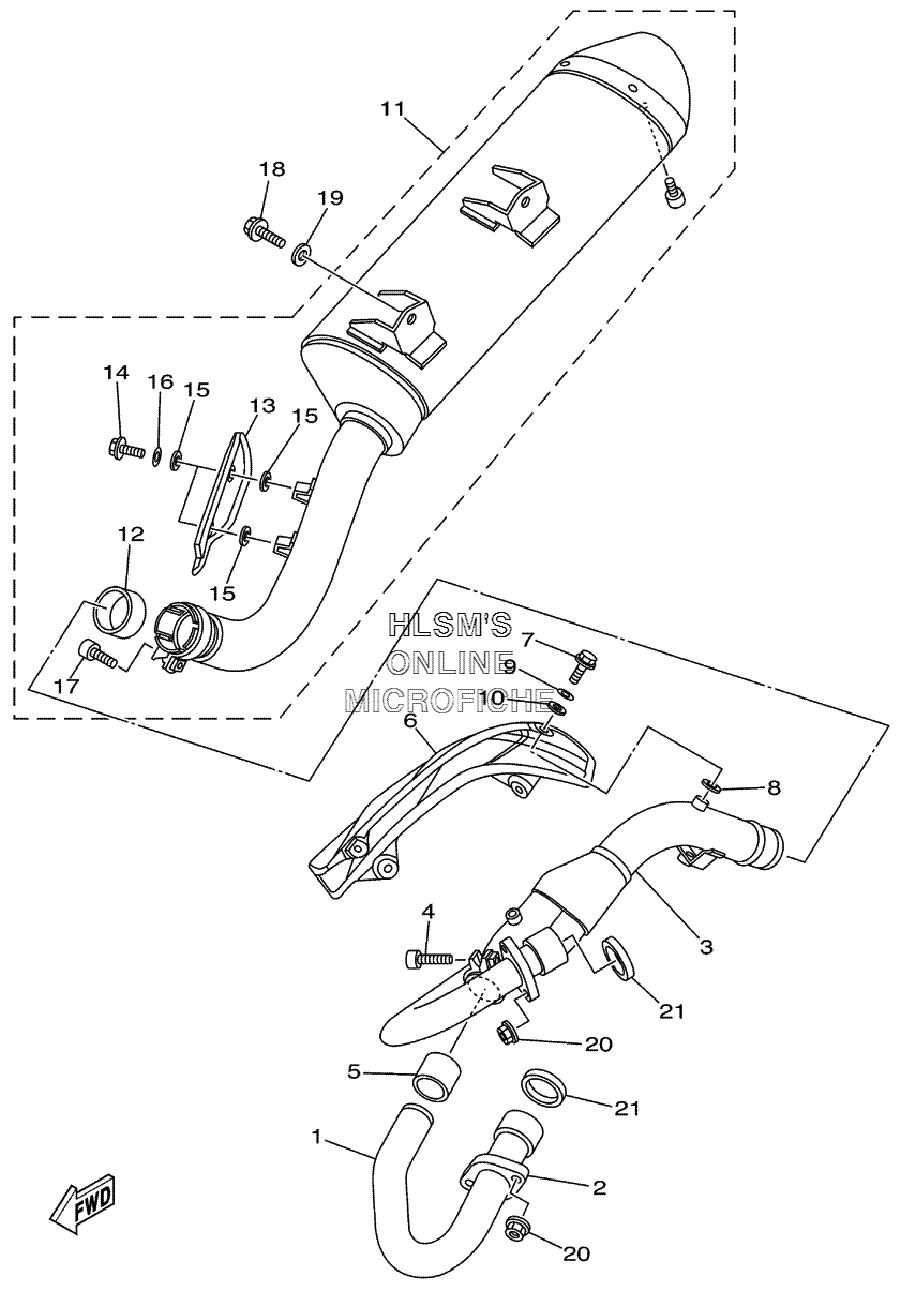

EXHAUST для Yamaha RAPTOR 700R YFM700RV - 2006 года выпуска
-
№АртикулНазвание
-
11S3-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
21S3-14612-00-00 NUT, RINGNUT, RING
-
31S3-14621-00-00 PIPE, EXHAUST 2PIPE, EXHAUST 2
-
491312-08035-00 BOLTBOLT
-
53YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
61S3-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
795022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
890201-05015-00 WASHER, PLATEWASHER, PLATE
-
990201-06035-00 WASHER, PLATEWASHER, PLATE
-
1090201-05019-00 WASHER, PLATEWASHER, PLATE
-
111S3-14711-00-00 MUFFLER 1MUFFLER 1
-
125LP-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
131S3-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
1498907-06010-00 ...SCREW, BIND...SCREW, BIND
-
1590201-05015-00 ...WASHER, PLATE...WASHER, PLATE
-
1692907-06200-00 ...WASHER...WASHER
-
1791312-08035-00 ...BOLT...BOLT
-
1890105-08074-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-08326-00 WASHER, PLATEWASHER, PLATE
-
2095702-08500-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
213YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
