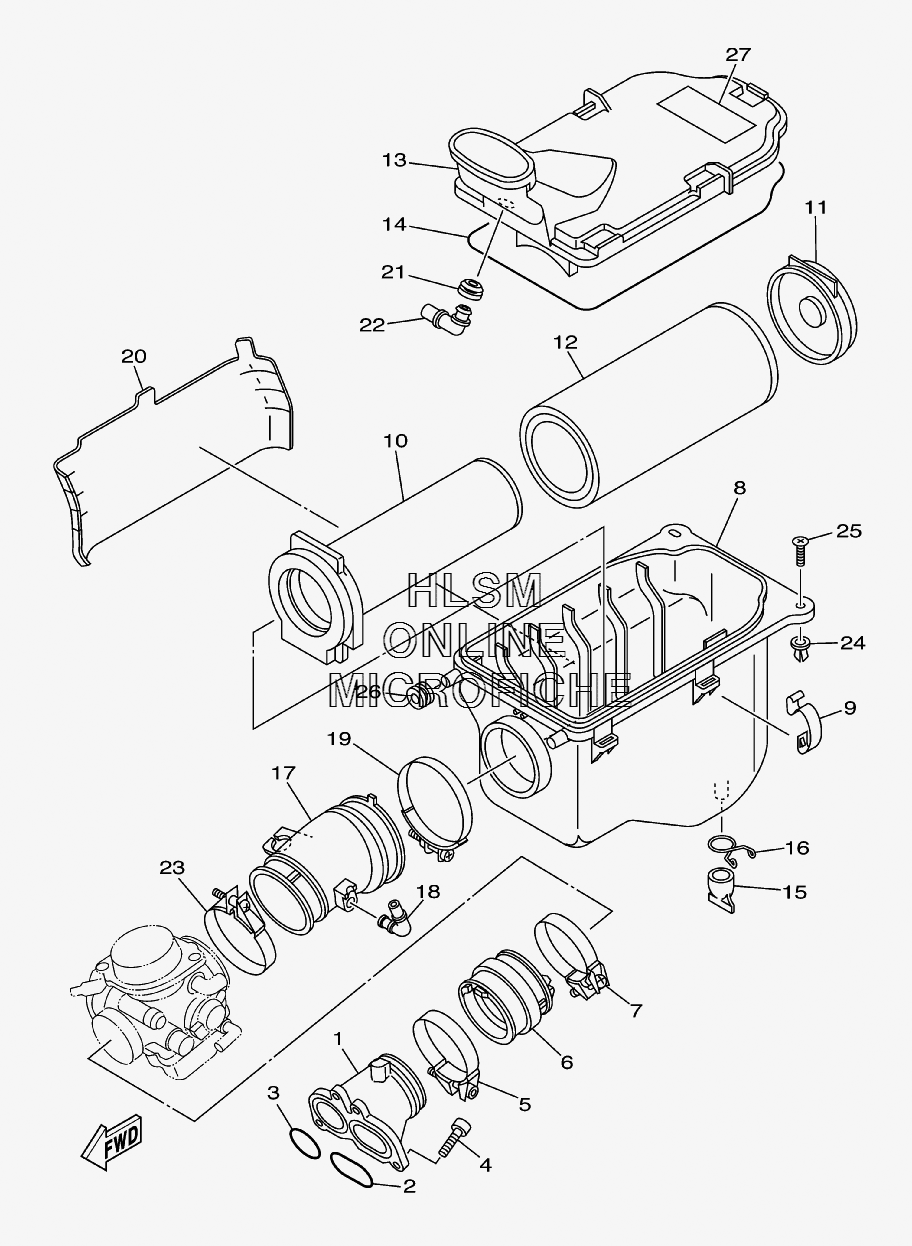

AIR CLEANER W/ INTAKE для Yamaha GRIZZLY 660 - 2007 года выпуска
-
№АртикулНазвание
-
15KM-13586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
393210-321A8-00 O-RINGO-RING
-
491317-06020-00 BOLTBOLT
-
590450-65001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65KM-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
790460-59211-00 CLAMP, HOSECLAMP, HOSE
-
85KM-14411-10-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
95GH-14436-00-00 HOOKHOOK
-
101UY-14458-01-00 GUIDEGUIDE
-
111UY-14468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
121UY-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
135KM-14412-10-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
145KM-14452-00-00 SEALSEAL
-
1559V-14457-00-00 SEALSEAL
-
1690467-22080-00 CLIP, SCISSORCLIP, SCISSOR
-
175KM-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1831A-14419-00-00 PIPEPIPE
-
1990460-75020-00 CLAMP, HOSECLAMP, HOSE
-
205KM-1442F-01-00 PROTECTORPROTECTOR
-
2131A-14435-00-00 GROMMETGROMMET
-
225KM-14419-00-00 PIPEPIPE
-
2390450-67001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
2597707-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
2690480-18290-00 GROMMETGROMMET
-
272C6-2177C-10-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
