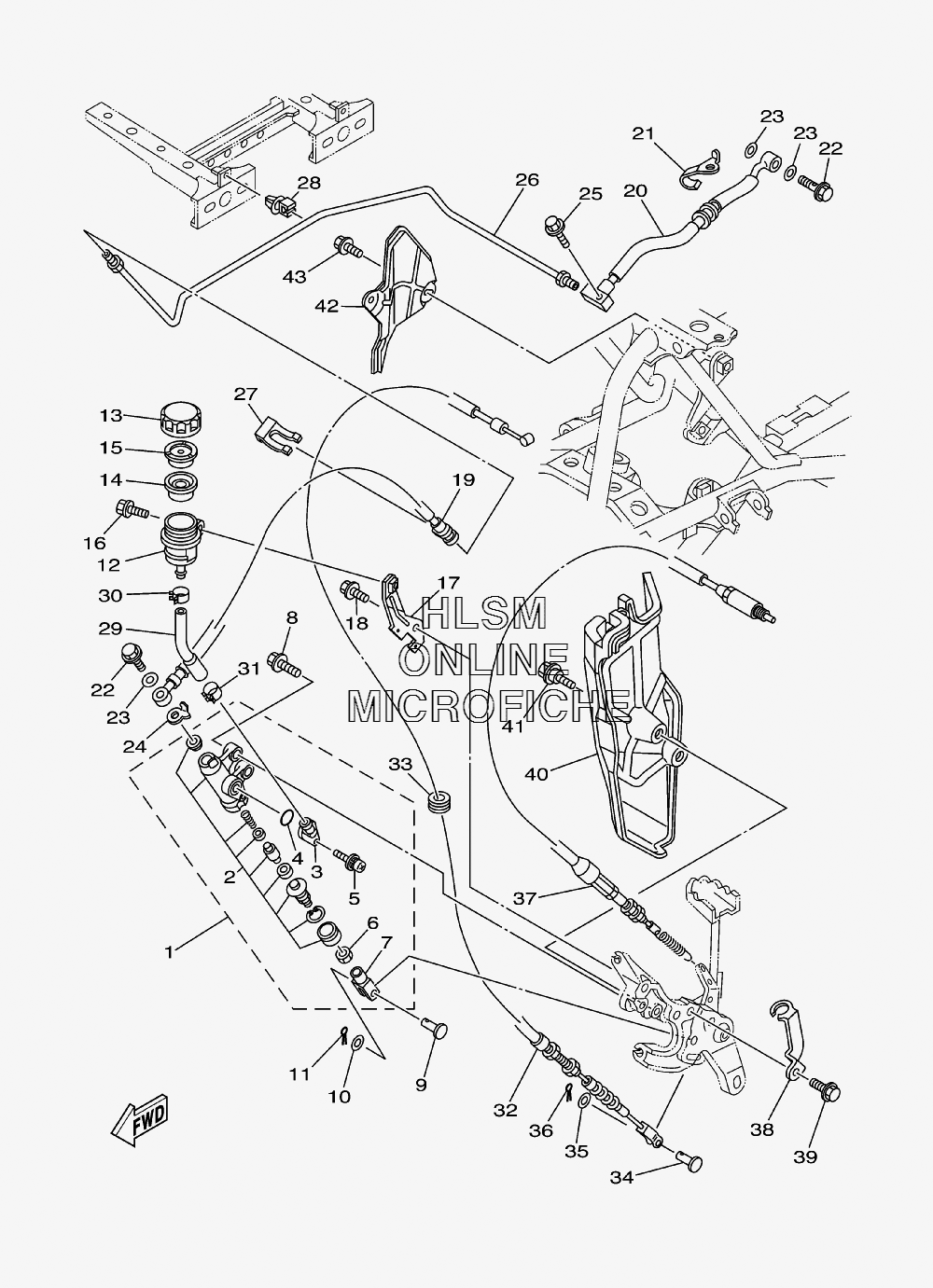

BRAKE - REAR MASTER CYLINDER для Yamaha GRIZZLY 660 - 2007 года выпуска
-
№АртикулНазвание
-
15KM-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25KM-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
331A-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
53GM-2589H-00-00 ...SCREW W/WASHER...SCREW W/WASHER
-
64SS-27218-00-00 ...NUT...NUT
-
72YK-27222-00-00 ...JOINT...JOINT
-
895817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
990240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1090201-08083-00 WASHER, PLATEWASHER, PLATE
-
1191401-16012-00 PIN, COTTERPIN, COTTER
-
125JJ-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
133XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
142VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
152VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1695827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
175KM-2133G-10-00 BRACKET, RESERVERBRACKET, RESERVER
-
1895827-06008-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
195KM-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
205KM-2581J-10-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
215KM-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2290401-10159-00 BOLT, UNIONBOLT, UNION
-
2390201-10118-00 WASHER, PLATEWASHER, PLATE
-
245GH-25844-00-00 WASHER, LOCKWASHER, LOCK
-
2595827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
265KM-25882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
272GU-25866-00-00 CIRCLIPCIRCLIP
-
285KM-81677-00-00 CLAMP 1CLAMP 1
-
295LP-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
3090467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
3190467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
325KM-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
3390480-18418-00 GROMMETGROMMET
-
3490240-06076-00 PIN, CLEVISPIN, CLEVIS
-
3590201-06042-00 WASHER, PLATEWASHER, PLATE
-
3691401-20012-00 PIN, COTTERPIN, COTTER
-
375KM-2637F-00-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
385KM-21441-00-00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
3995827-06008-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
405KM-27491-00-00 PROTECTORPROTECTOR
-
4190109-063F1-00 BOLTBOLT
-
425KM-2117G-10-00 PROTECTORPROTECTOR
-
4395827-06008-00 BOLT, FLANGEBOLT, FLANGE
