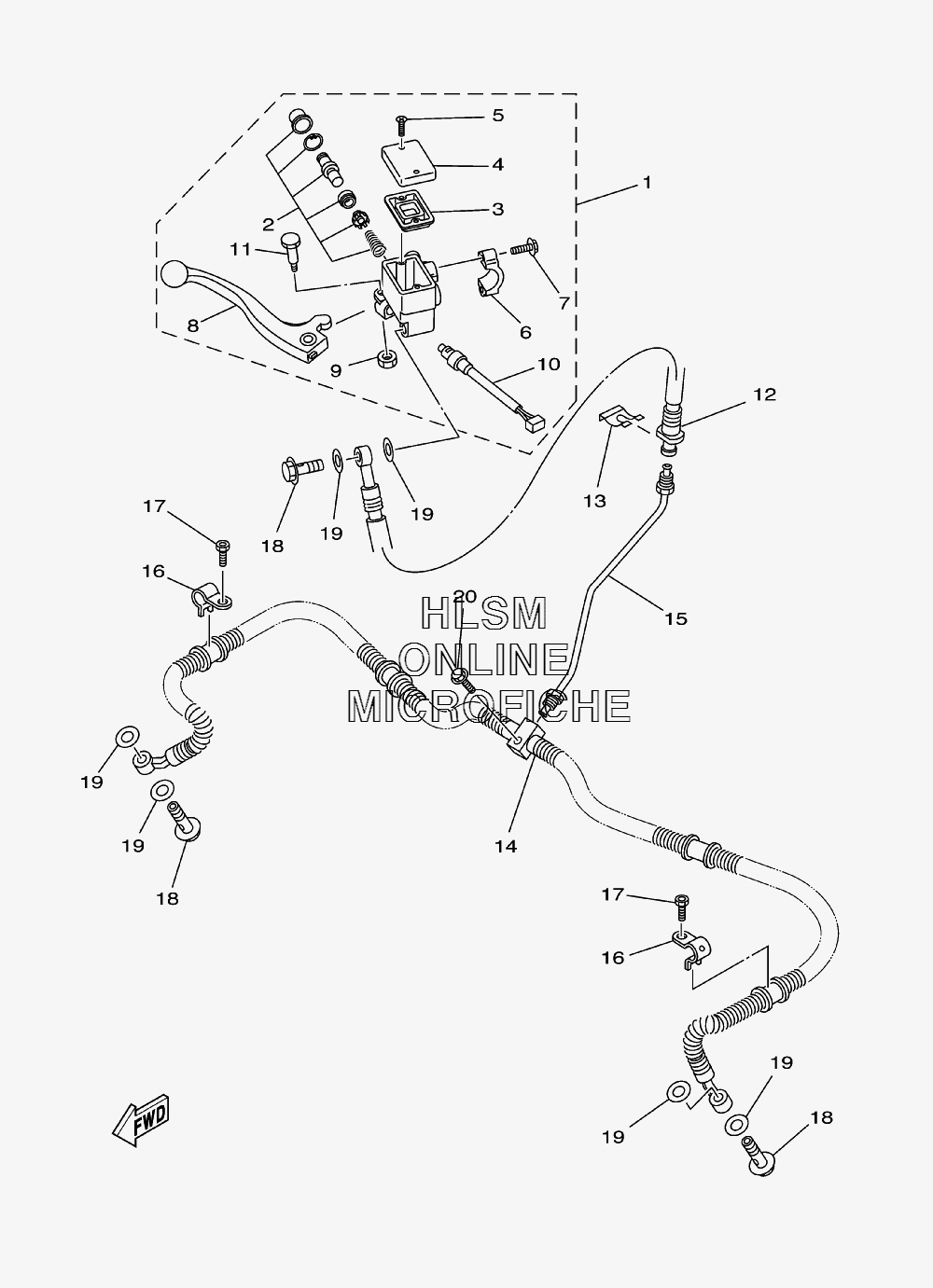

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 660 - 2007 года выпуска
-
№АртикулНазвание
-
15KM-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45JX-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65GH-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75EB-26332-00-00 ...BOLT...BOLT
-
85KM-83922-00-00 ...LEVER 2...LEVER 2
-
995606-06100-00 ...NUT, U...NUT, U
-
105LP-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
111FK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
125KM-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
132GU-25866-00-00 CIRCLIPCIRCLIP
-
145KM-25873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
155KM-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
165KM-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1791317-06010-00 BOLTBOLT
-
1890401-10159-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
-
2095827-06025-00 BOLT, FLANGEBOLT, FLANGE
