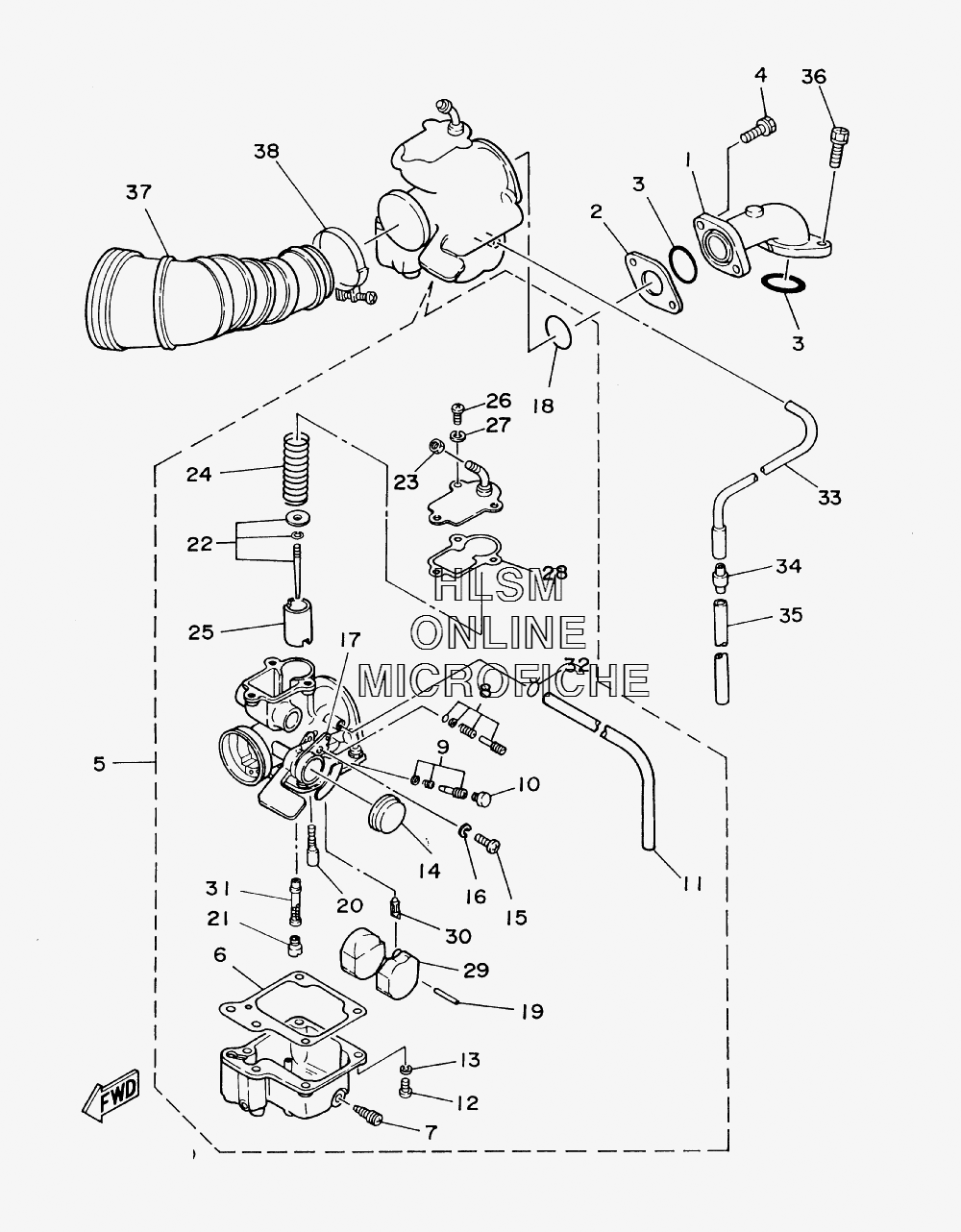

AIR CLEANER W/ INTAKE для Yamaha GRIZZLY 80 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
155X-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
222K-13595-00-00 JOINTJOINT
-
393210-25552-00 O-RINGO-RING
-
490159-06076-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
55TH-14101-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
622F-14184-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
712R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
822F-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
922K-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
1022F-14991-00-00 ...CAP...CAP
-
1126H-14197-00-00 ...PIPE...PIPE
-
1298502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1298502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1392902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1422F-14169-00-00 ...CAP...CAP
-
1598502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1692902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1755X-14146-00-00 ...PLATE...PLATE
-
1822K-14147-00-00 ...O-RING...O-RING
-
19127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
2022F-14142-12-00 ...JET, PILOT (#12.5)...JET, PILOT (#12.5)
-
2118A-1414E-30-00 ...JET, MAIN (#76.3)...JET, MAIN (#76.3)
-
222HX-1490J-10-00 ...NEEDLE SET...NEEDLE SET
-
23802-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
24260-14131-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
252HX-14112-35-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
2698502-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2792902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
2855X-14198-00-00 ...GASKET...GASKET
-
2922F-14185-00-00 ...FLOAT...FLOAT
-
3022F-14150-00-00 ...NEEDLE ASSY...NEEDLE ASSY
-
314EM-14141-78-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
3255X-14937-00-00 ...CLIP...CLIP
-
3355X-14196-00-00 PIPEPIPE
-
3424W-14193-00-00 PIPEPIPE
-
3591A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
3690159-06076-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
373GB-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
3890460-43053-00 CLAMP, HOSECLAMP, HOSE
