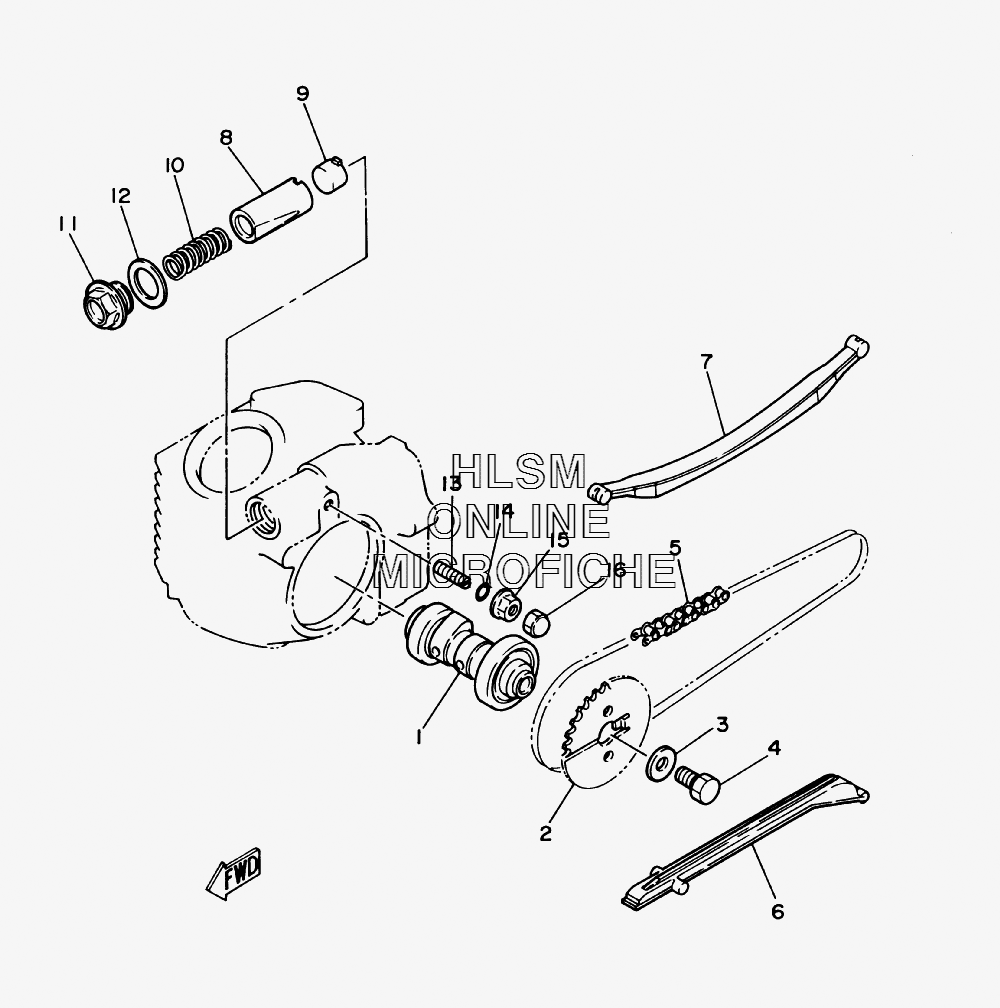

CAMSHAFT W/ CHAIN для Yamaha GRIZZLY 80 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
155X-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
250M-12176-00-00 SPROCKET, CAM CHAIN (28T)SPROCKET, CAM CHAIN (28T)
-
390201-08326-00 WASHER, PLATEWASHER, PLATE
-
490101-08590-00 BOLTBOLT
-
594580-25082-00 CHAIN (D.I.D 25)CHAIN (D.I.D 25)
-
622F-12231-01-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
722F-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
822F-12217-01-00 ROD, CHAIN TENSIONERROD, CHAIN TENSIONER
-
990334-14037-00 PLUG, STRAIGHTPLUG, STRAIGHT
-
1090501-10710-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1190340-18092-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1290201-186F1-00 WASHER, PLATEWASHER, PLATE
-
1390113-06009-00 BOLT, SETBOLT, SET
-
1493210-06564-00 O-RINGO-RING
-
1590179-06387-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1695307-06800-00 NUTNUT
