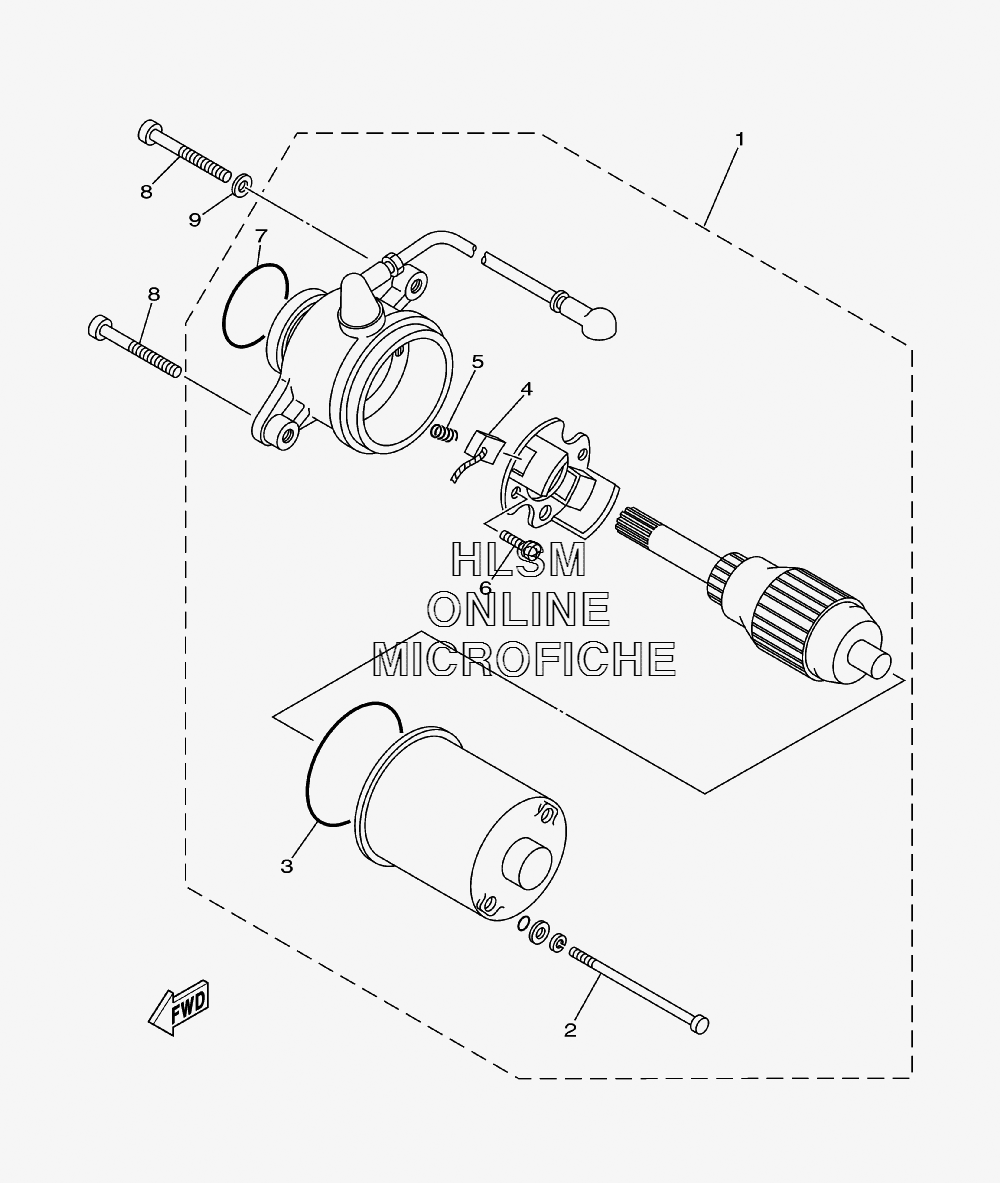

STARTING MOTOR для Yamaha GRIZZLY 80 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
155X-81800-51-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
255X-81826-50-00 ...BOLT...BOLT
-
35J3-81847-50-00 ...O-RING...O-RING
-
422J-81801-50-00 ...BRUSH SET...BRUSH SET
-
555X-81855-50-00 ...SPRING, BRUSH...SPRING, BRUSH
-
65J3-81846-50-00 ...SCREW...SCREW
-
722J-81847-50-00 ...O-RING...O-RING
-
891317-06035-00 BOLTBOLT
-
992907-06200-00 WASHERWASHER
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- REFLECTOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER CLUTCH
- • STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
