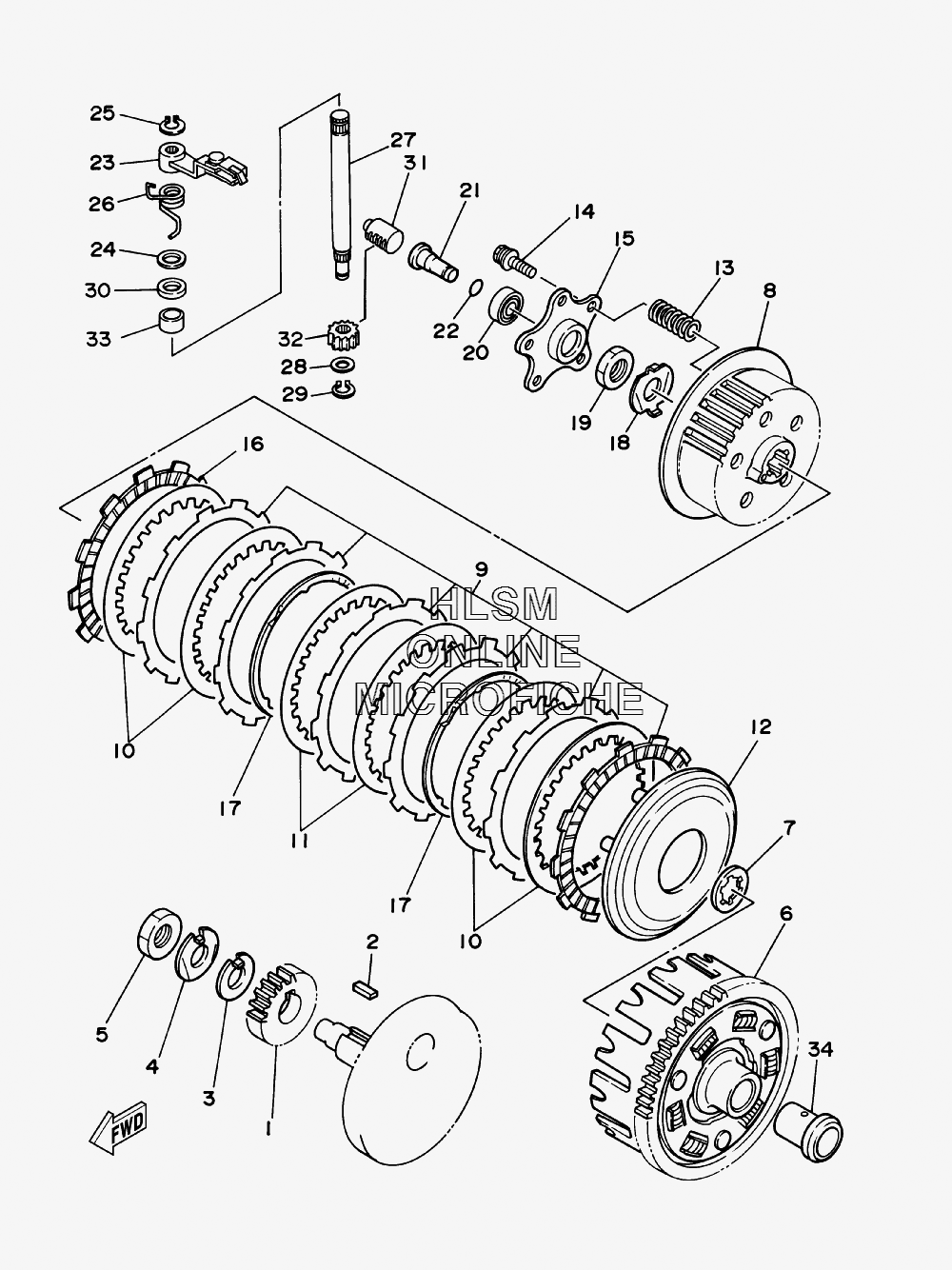

CLUTCH для Yamaha RAPTOR 350 SE 2 - 2007 года выпуска
-
№АртикулНазвание
-
11UY-16111-10-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290282-07057-00 KEY, STRAIGHTKEY, STRAIGHT
-
390215-16156-00 WASHER, LOCKWASHER, LOCK
-
490215-16222-00 WASHER, LOCKWASHER, LOCK
-
590170-16343-00 NUTNUT
-
62NL-16150-00-00 PRIMARY DRIVEN GEAR COMP. (76T)PRIMARY DRIVEN GEAR COMP. (76T)
-
730X-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
81UY-16371-02-00 BOSS, CLUTCHBOSS, CLUTCH
-
95Y1-16331-01-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
10168-16325-00-00 PLATE, CLUTCH 2 (T=1.6)PLATE, CLUTCH 2 (T=1.6)
-
113J2-16324-00-00 PLATE, CLUTCH 1 (T=2.0)PLATE, CLUTCH 1 (T=2.0)
-
121UY-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1390501-231E9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490159-06123-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
151UY-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1631A-16321-01-00 PLATE, FRICTIONPLATE, FRICTION
-
175Y1-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
1890215-16258-00 WASHER, LOCKWASHER, LOCK
-
1990170-16326-00 NUTNUT
-
2093306-00006-00 BEARINGBEARING
-
211UY-16358-00-00 PLATE, PUSHPLATE, PUSH
-
2293210-06422-00 O-RINGO-RING
-
235YT-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2490201-12163-00 WASHER, PLATEWASHER, PLATE
-
2599001-09600-00 CIRCLIPCIRCLIP
-
2690508-16022-00 SPRING, TORSIONSPRING, TORSION
-
271UY-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2890201-08085-00 WASHER, PLATEWASHER, PLATE
-
2999001-07600-00 CIRCLIPCIRCLIP
-
3093102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
311UY-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
323LD-16398-00-00 PINION, RELEASEPINION, RELEASE
-
3390386-12093-00 BUSH, SPEC'L NYLONBUSH, SPEC'L NYLON
-
341UY-16181-00-00 SPACER 1SPACER 1
