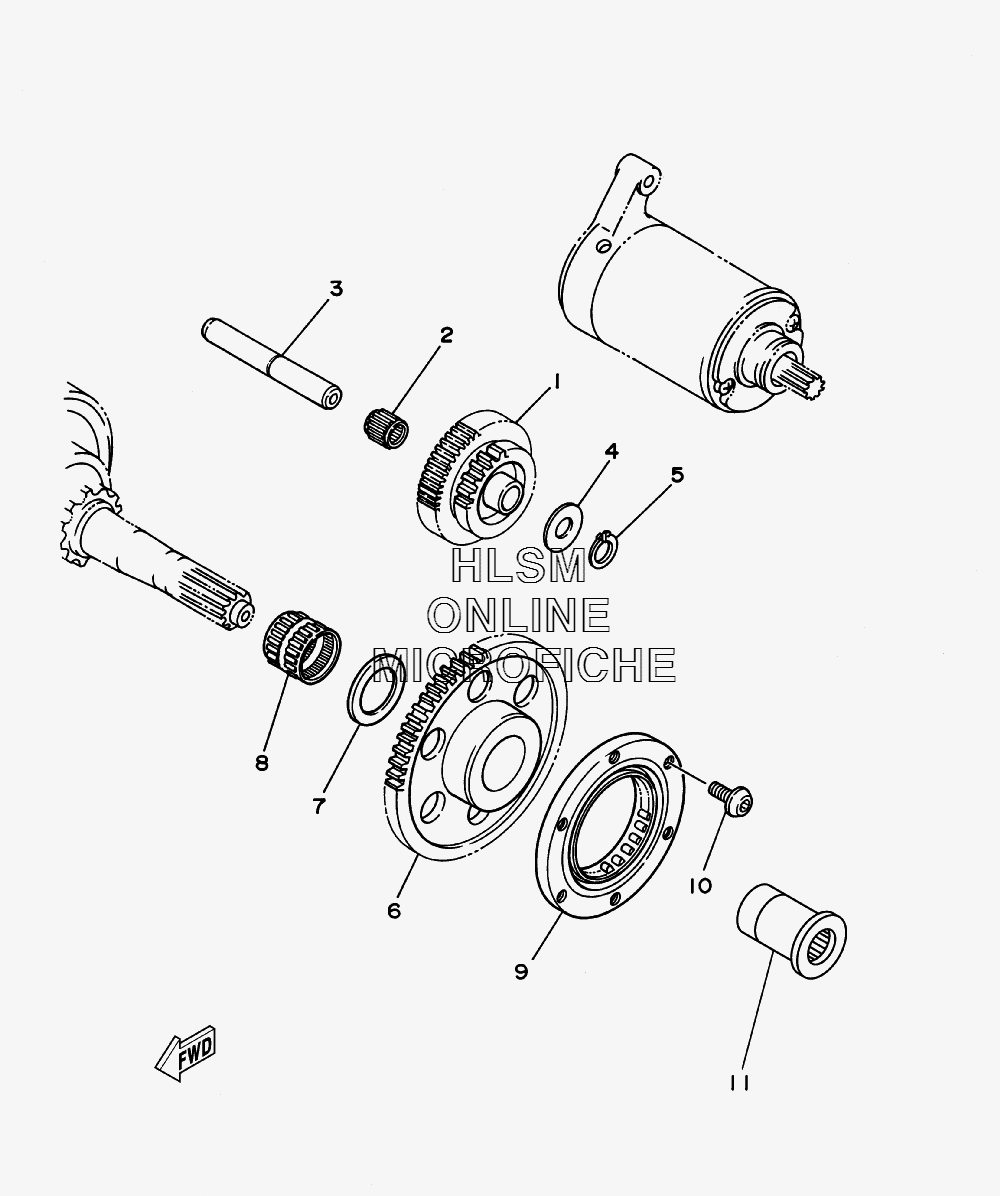

STARTER CLUTCH для Yamaha RAPTOR 350 SE 2 - 2007 года выпуска
-
№АртикулНазвание
-
11UY-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
293310-212L6-00 BEARING, CYL.#10BEARING, CYL.#10
-
31UY-15521-02-00 SHAFT 1SHAFT 1
-
490201-123K4-00 WASHER, PLATEWASHER, PLATE
-
599009-12400-00 CIRCLIPCIRCLIP
-
61UY-15517-01-00 GEAR, IDLER 2 (65T)GEAR, IDLER 2 (65T)
-
790201-25291-00 WASHER, PLATEWASHER, PLATE
-
893310-225N0-00 BEARING, CYL.#10BEARING, CYL.#10
-
91UY-15590-01-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
1090149-08329-00 SCREWSCREW
-
113GD-15777-10-00 BOSS, STARTER PULLEYBOSS, STARTER PULLEY
