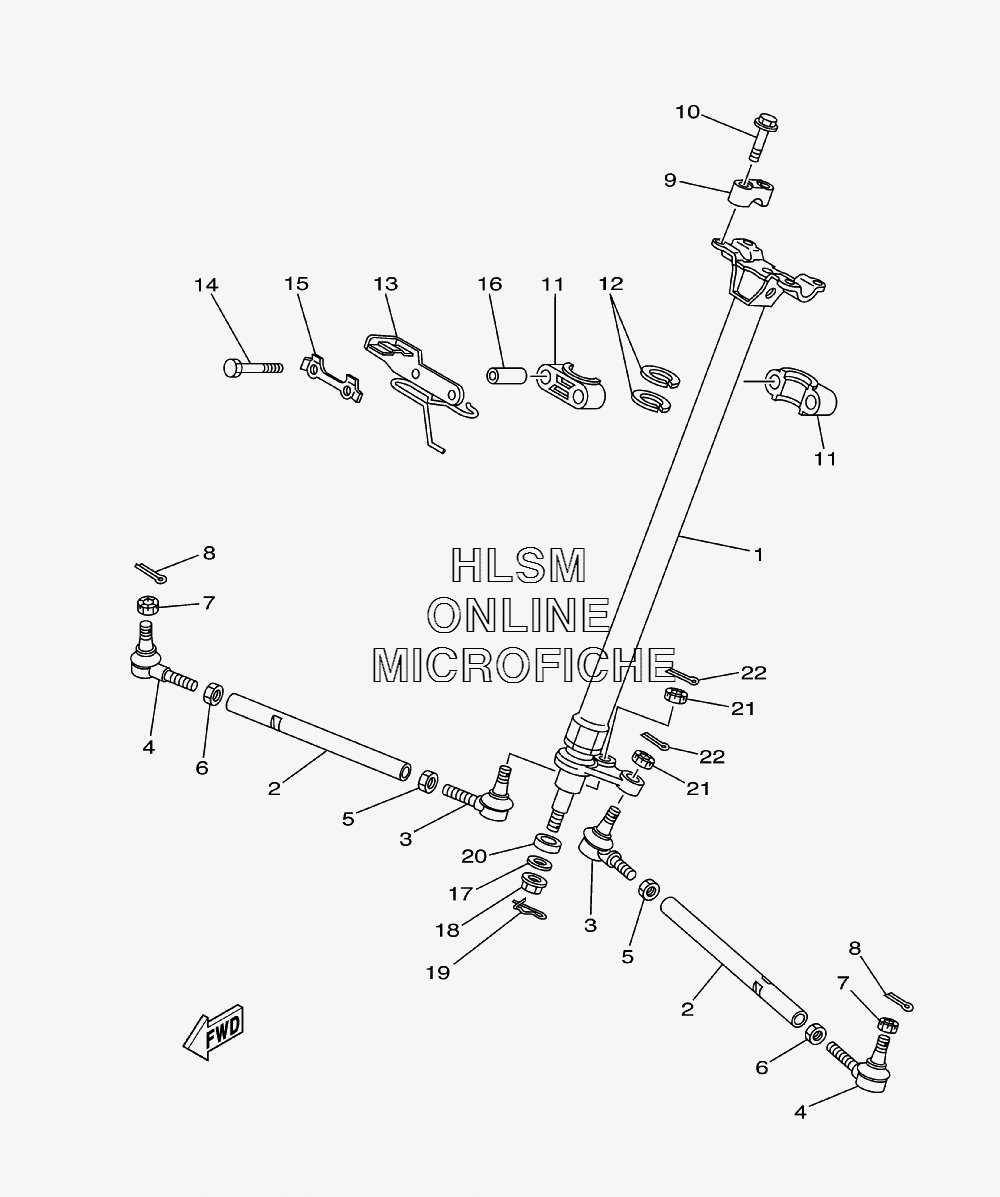

STEERING для Yamaha RAPTOR 350 SE 2 - 2007 года выпуска
-
№АртикулНазвание
-
15YT-23813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
23GD-23831-00-00 ROD, TIEROD, TIE
-
31UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
41UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
595302-10700-00 NUTNUT
-
690170-10010-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
790171-10046-00 NUT, CASTLENUT, CASTLE
-
891401-20020-00 PIN, COTTERPIN, COTTER
-
98K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
1095822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
111UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
1293112-31011-00 OIL SEALOIL SEAL
-
135YT-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1497022-08060-00 BOLTBOLT
-
151UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1690387-090R0-00 COLLARCOLLAR
-
1790201-10774-00 WASHER, PLATEWASHER, PLATE
-
1890185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990468-16191-00 CLIPCLIP
-
2090387-176R6-00 COLLARCOLLAR
-
2190171-10001-00 NUT, CASTLENUT, CASTLE
-
2291401-20020-00 PIN, COTTERPIN, COTTER
