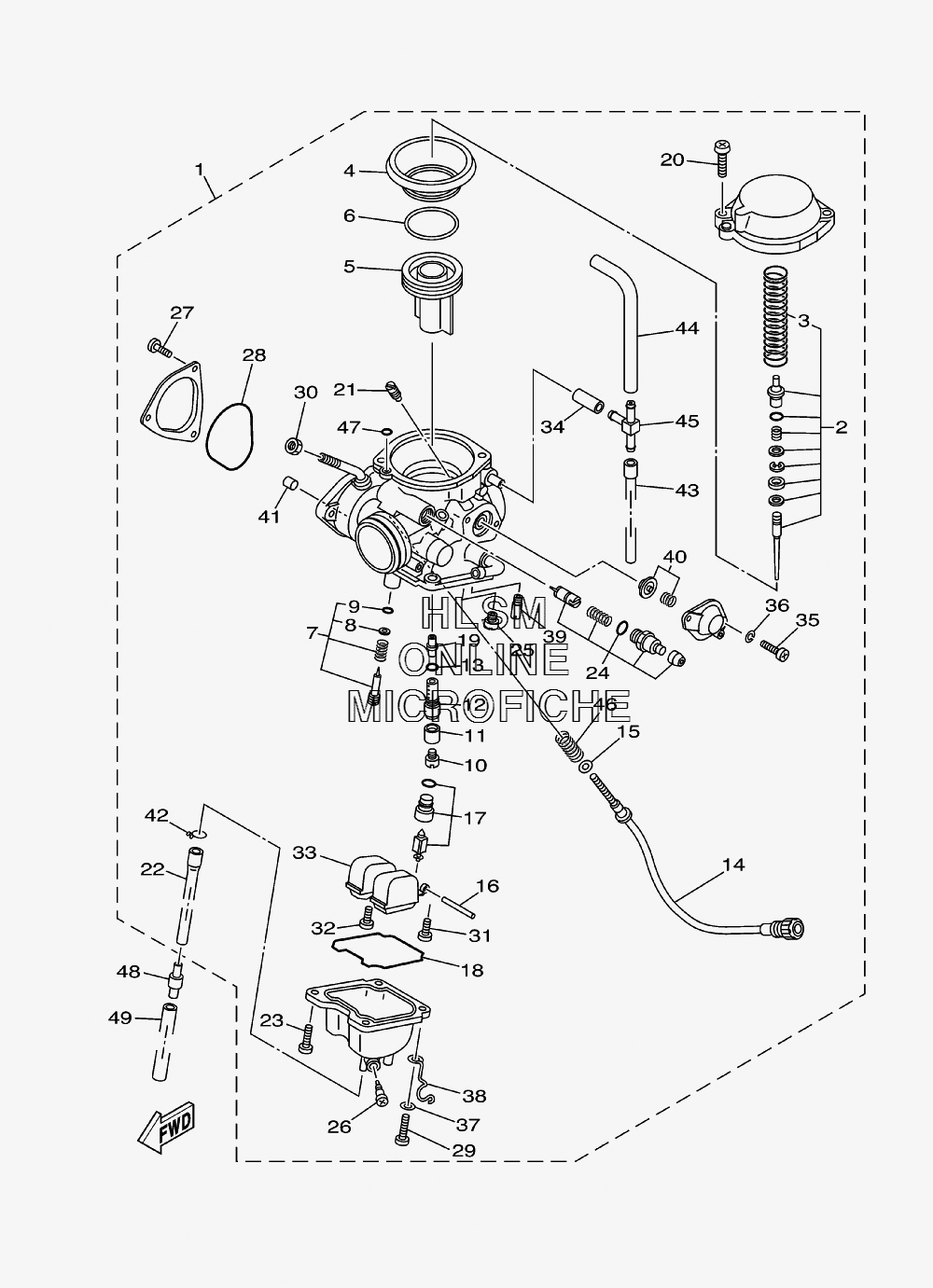

CARBURETOR для Yamaha RAPTOR 350 SE - 2007 года выпуска
-
№АртикулНазвание
-
15YT-14901-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25YT-1490J-10-00 ...NEEDLE SET...NEEDLE SET
-
35YT-24423-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
48FA-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
55YT-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
65YT-14194-00-00 ...RING...RING
-
75MP-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
83H1-14962-00-00 ...WASHER...WASHER
-
93H1-14147-00-00 ...O-RING...O-RING
-
103G2-1423A-79-00 ...JET, MAIN (#142.5)...JET, MAIN (#142.5)
-
115GH-14918-00-00 ...RING...RING
-
125YT-14261-00-00 ...HOLDER...HOLDER
-
13583-14561-00-00 ...O-RING...O-RING
-
145YT-14123-00-00 ...SCREW, AIR ADJUSTING...SCREW, AIR ADJUSTING
-
155FU-14962-00-00 ...WASHER...WASHER
-
16127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
175YT-14190-25-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
185DM-14561-00-00 ...O-RING...O-RING
-
195YT-14141-40-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
204KM-14216-00-00 ...SCREW...SCREW
-
211HX-14231-33-00 ...JET, MAIN (#165)...JET, MAIN (#165)
-
225YT-14193-00-00 ...PIPE...PIPE
-
2398507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
245YT-1410A-00-00 ...STARTER SET...STARTER SET
-
253G2-14231-14-00 ...JET,PILOT AIR (#70)...JET,PILOT AIR (#70)
-
265LW-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2798507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
285LP-14147-00-00 ...O-RING...O-RING
-
2998507-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
30522-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
3198507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
321FN-14565-00-00 ...SCREW...SCREW
-
335DM-14985-00-00 ...FLOAT...FLOAT
-
345YT-14197-00-00 ...PIPE...PIPE
-
3598501-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3692902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
3792907-04600-00 ...WASHER...WASHER
-
385KM-14937-00-00 ...CLIP...CLIP
-
394KM-14142-22-00 ...JET, PILOT (# 22.5)...JET, PILOT (# 22.5)
-
405YT-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
413GD-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
4280N-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
435YT-14197-20-00 ...PIPE...PIPE
-
445YT-14197-10-00 ...PIPE...PIPE
-
4528V-14988-00-00 ...PIPE, STARTER CONNECTING...PIPE, STARTER CONNECTING
-
46137-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
47354-14147-00-00 ...O-RING...O-RING
-
4824W-14193-00-00 PIPEPIPE
-
4991A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
