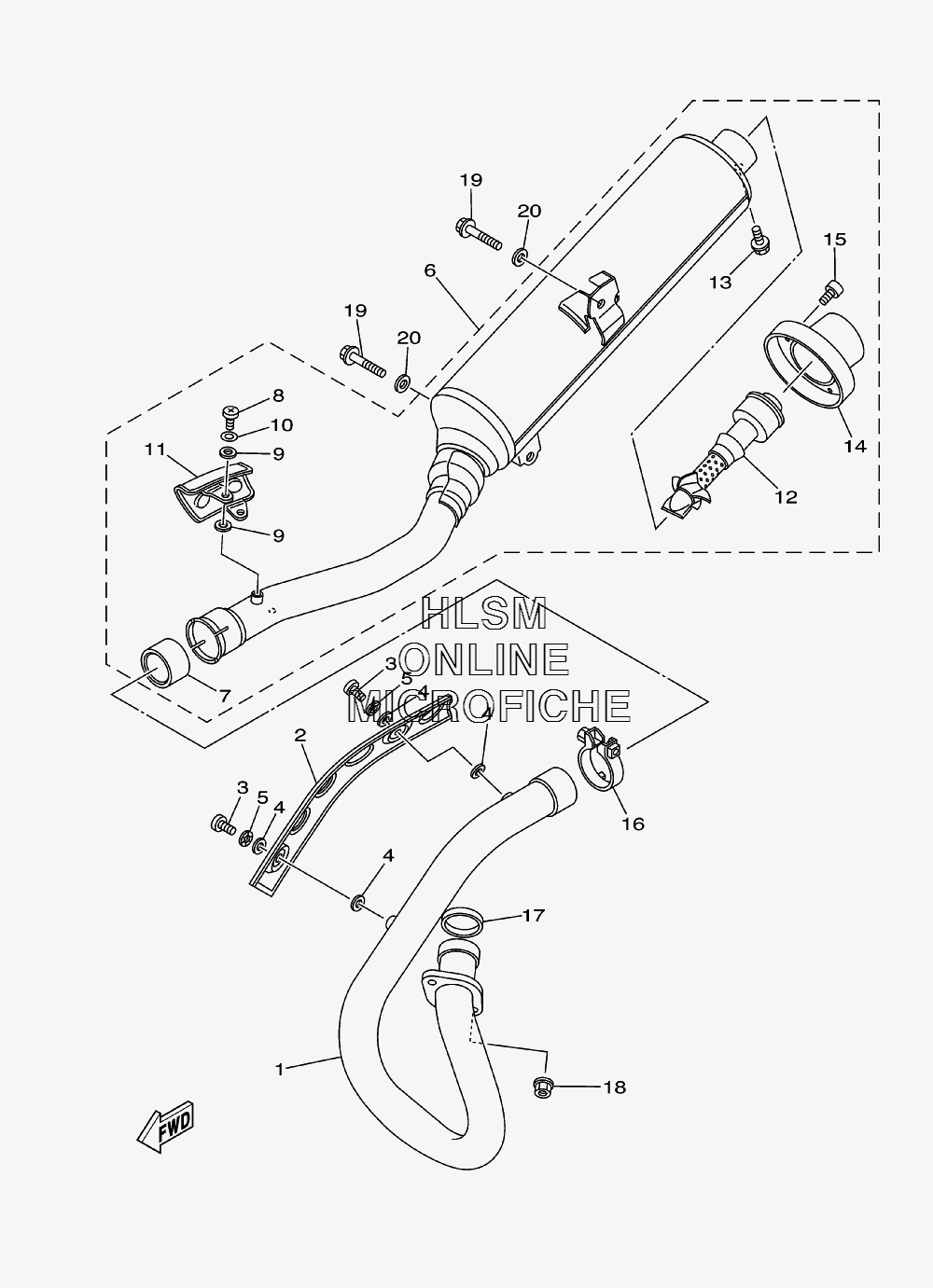

EXHAUST для Yamaha RAPTOR 350 SE - 2007 года выпуска
-
№АртикулНазвание
-
11UY-14611-02-00 PIPE, EXHAUST LPIPE, EXHAUST L
-
25YT-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
398907-06010-00 SCREW, BINDSCREW, BIND
-
490201-05015-00 WASHER, PLATEWASHER, PLATE
-
592907-06200-00 WASHERWASHER
-
65YT-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
74WM-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
898907-06010-00 ...SCREW, BIND...SCREW, BIND
-
990201-05015-00 ...WASHER, PLATE...WASHER, PLATE
-
1092907-06200-00 ...WASHER...WASHER
-
115YT-14708-01-00 ...PROTECTOR ASSY...PROTECTOR ASSY
-
125TG-14752-00-00 ...PIPE, OUTLET...PIPE, OUTLET
-
1395027-06008-00 ...BOLT, FLANGE...BOLT, FLANGE
-
145YT-14787-00-00 ...CAP, SILENCER...CAP, SILENCER
-
1590110-06134-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
165YT-14788-00-00 BAND, SILENCERBAND, SILENCER
-
173GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1890179-06668-00 NUTNUT
-
1995817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-08326-00 WASHER, PLATEWASHER, PLATE
