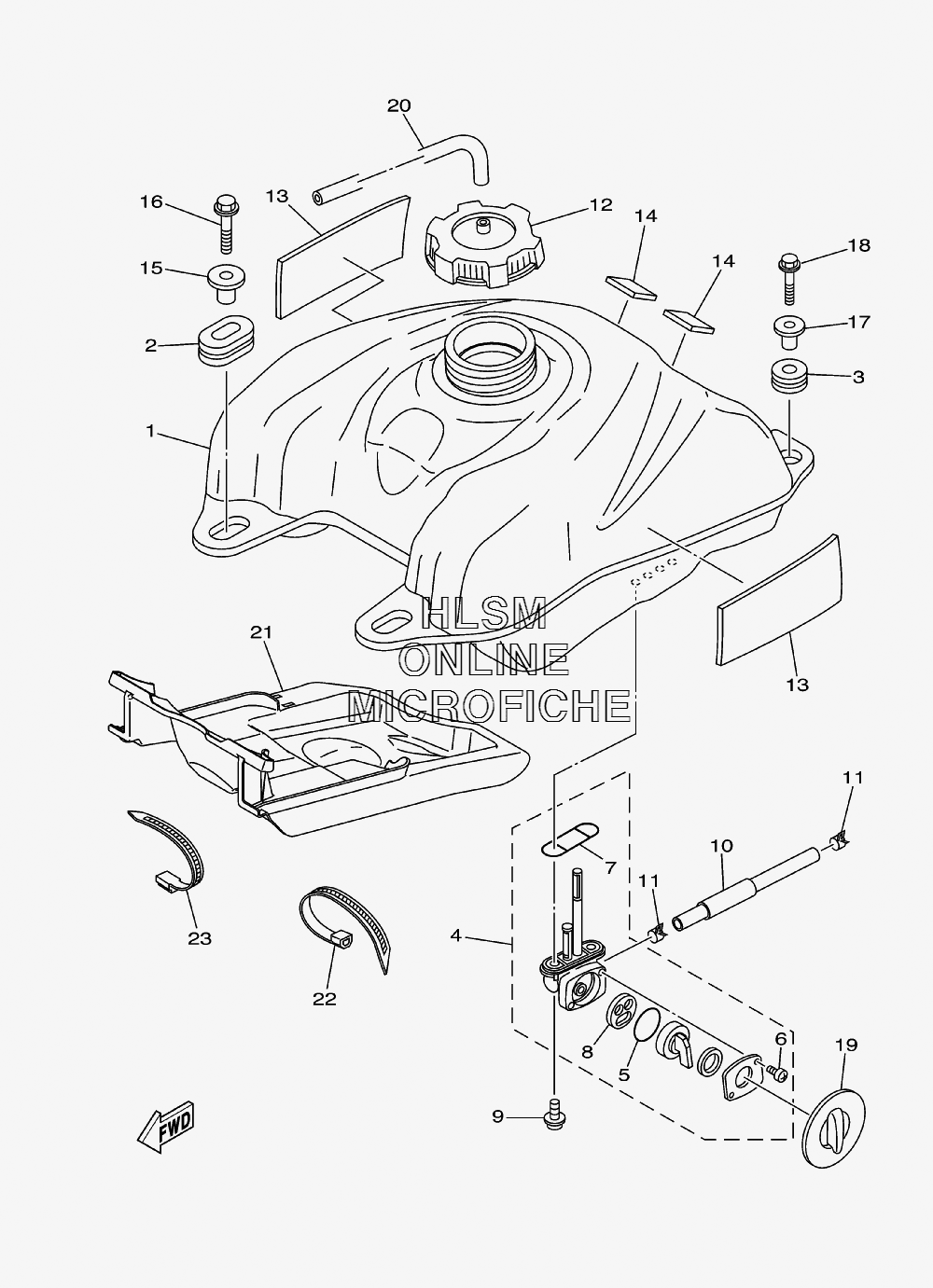

FUEL TANK для Yamaha RAPTOR 350 SE - 2007 года выпуска
-
№АртикулНазвание
-
15YT-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
290480-01400-00 GROMMETGROMMET
-
390480-18290-00 GROMMETGROMMET
-
421V-24500-11-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
53AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
698507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
74X8-24512-00-00 ...O-RING...O-RING
-
83AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
990149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
105YT-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1190467-10038-00 CLIP, SCISSORCLIP, SCISSOR
-
125KM-24610-00-00 CAP ASSYCAP ASSY
-
135TG-21541-00-00 DAMPER 1DAMPER 1
-
145YT-24665-00-00 DAMPERDAMPER
-
1590387-07021-00 COLLARCOLLAR
-
1695802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1790387-066J1-00 COLLARCOLLAR
-
1895802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
195YT-24524-00-00 LEVER, COCKLEVER, COCK
-
2090445-084J1-00 HOSE (L420)HOSE (L420)
-
215YT-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2290464-15195-00 CLAMPCLAMP
-
2390464-13073-00 CLAMPCLAMP
