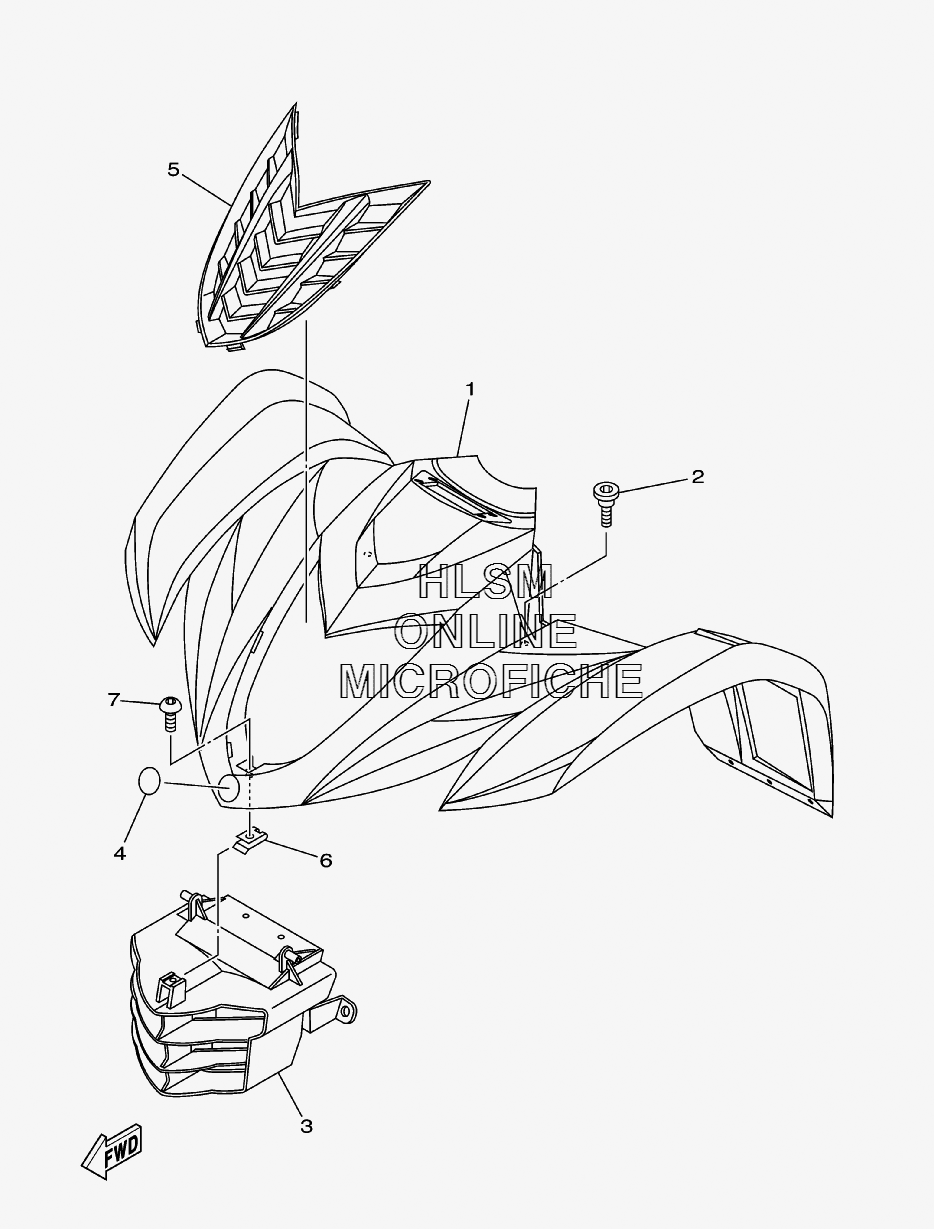

FENDER - FRONT для Yamaha WOLVERINE 450 4x4 SPORT - 2007 года выпуска
-
№АртикулНазвание
-
13C2-F1500-00-00 FRONT FENDER ASSY FOR DPBSEFRONT FENDER ASSY FOR DPBSE
-
13C2-F1500-40-00 FRONT FENDER ASSY FOR PGDFRONT FENDER ASSY FOR PGD
-
290109-08076-00 BOLTBOLT
-
33C2-F8309-00-00 GRILL, FRONTGRILL, FRONT
-
43C2-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
53C2-F1556-30-00 FENDER, FRONT 2 FOR DPBSEFENDER, FRONT 2 FOR DPBSE
-
53C2-F1556-80-00 FENDER, FRONT 2 FOR PGDFENDER, FRONT 2 FOR PGD
-
690183-05008-00 NUT, SPRINGNUT, SPRING
-
790110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
