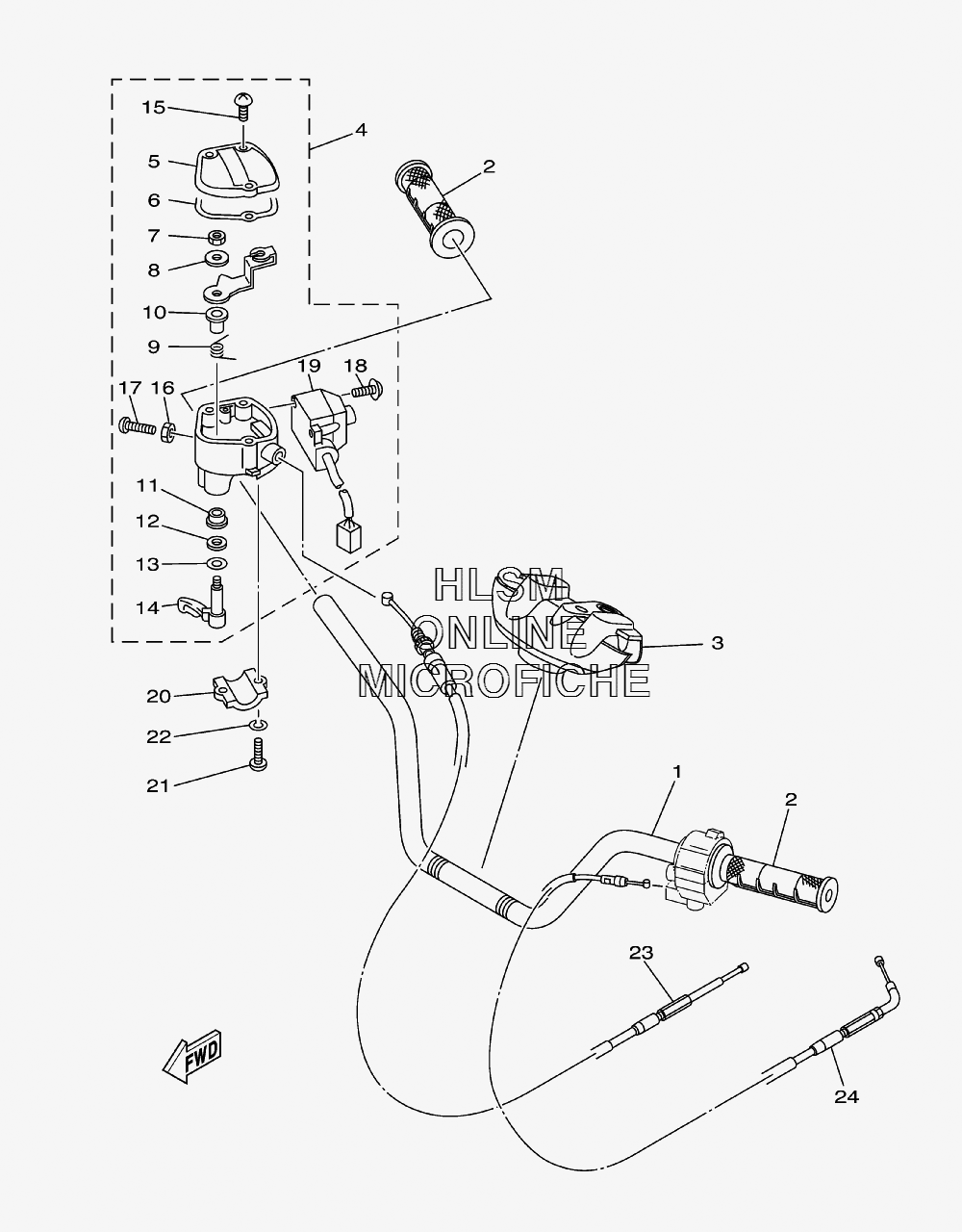

HANDLEBAR W/ CABLES для Yamaha WOLVERINE 450 4x4 SPORT - 2007 года выпуска
-
№АртикулНазвание
-
13C2-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
35ND-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
41P1-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
64KB-2628G-00-00 ...GASKET...GASKET
-
795607-05100-00 ...NUT, U...NUT, U
-
81NV-26398-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
91NV-26304-00-00 ...SPRING...SPRING
-
101NV-26259-01-00 ...COLLAR...COLLAR
-
111NV-2625K-00-00 ...COLLAR...COLLAR
-
1293104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
131NV-26129-00-00 ...WASHER...WASHER
-
141NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1590149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1695307-05700-00 ...NUT...NUT
-
1798507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1897607-04210-00 ...SCREW,WITH WASHER...SCREW,WITH WASHER
-
191P1-83976-00-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
204V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2198507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292907-05600-00 WASHER, PLATEWASHER, PLATE
-
235GH-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
243C2-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
