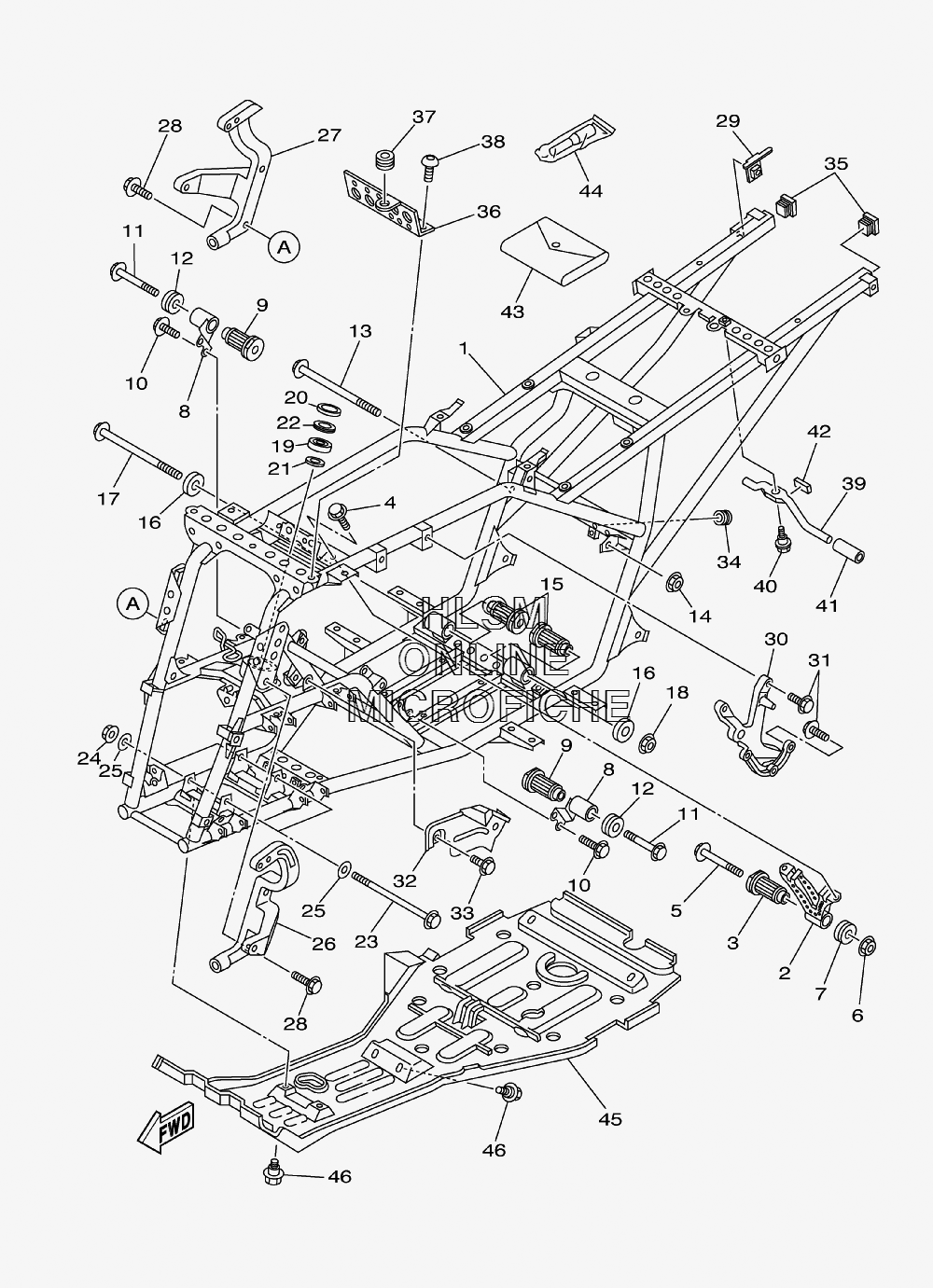

FRAME для Yamaha WOLVERINE 450 4x4 SPORT - 2007 года выпуска
-
№АртикулНазвание
-
13C2-F1110-00-00 FRAME COMP.FRAME COMP.
-
25ND-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
35ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
49581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
595817-10110-00 BOLT, FLANGEBOLT, FLANGE
-
695607-10200-00 NUT, U FLANGENUT, U FLANGE
-
75ND-F1486-00-00 DAMPER 2DAMPER 2
-
85ND-F1316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
95ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
109581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1195817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
125ND-F1486-00-00 DAMPER 2DAMPER 2
-
1390105-10055-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
165ND-F1488-00-00 DAMPERDAMPER
-
1790105-10055-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1993306-203YN-00 BEARINGBEARING
-
2093102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2193102-25099-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
222GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2390105-10051-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
263C2-F831V-00-00 STAY, HEAD LIGHT 1STAY, HEAD LIGHT 1
-
273C2-F832V-00-00 STAY, HEAD LIGHT 2STAY, HEAD LIGHT 2
-
2895817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
293C2-F1446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
305ND-F1585-01-00 ARMARM
-
3195827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
325ND-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
3395817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3490480-10517-00 GROMMETGROMMET
-
355FU-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
363C2-F1228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
3790480-13004-00 GROMMETGROMMET
-
3890149-06280-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
393C2-K7173-00-00 LEVER, LATCH 1LEVER, LATCH 1
-
4090109-063F1-00 BOLTBOLT
-
41JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
423C2-F4144-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
435ND-F8100-00-00 TOOL KITTOOL KIT
-
441NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
455ND-F147A-02-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
4690109-063F1-00 BOLTBOLT
