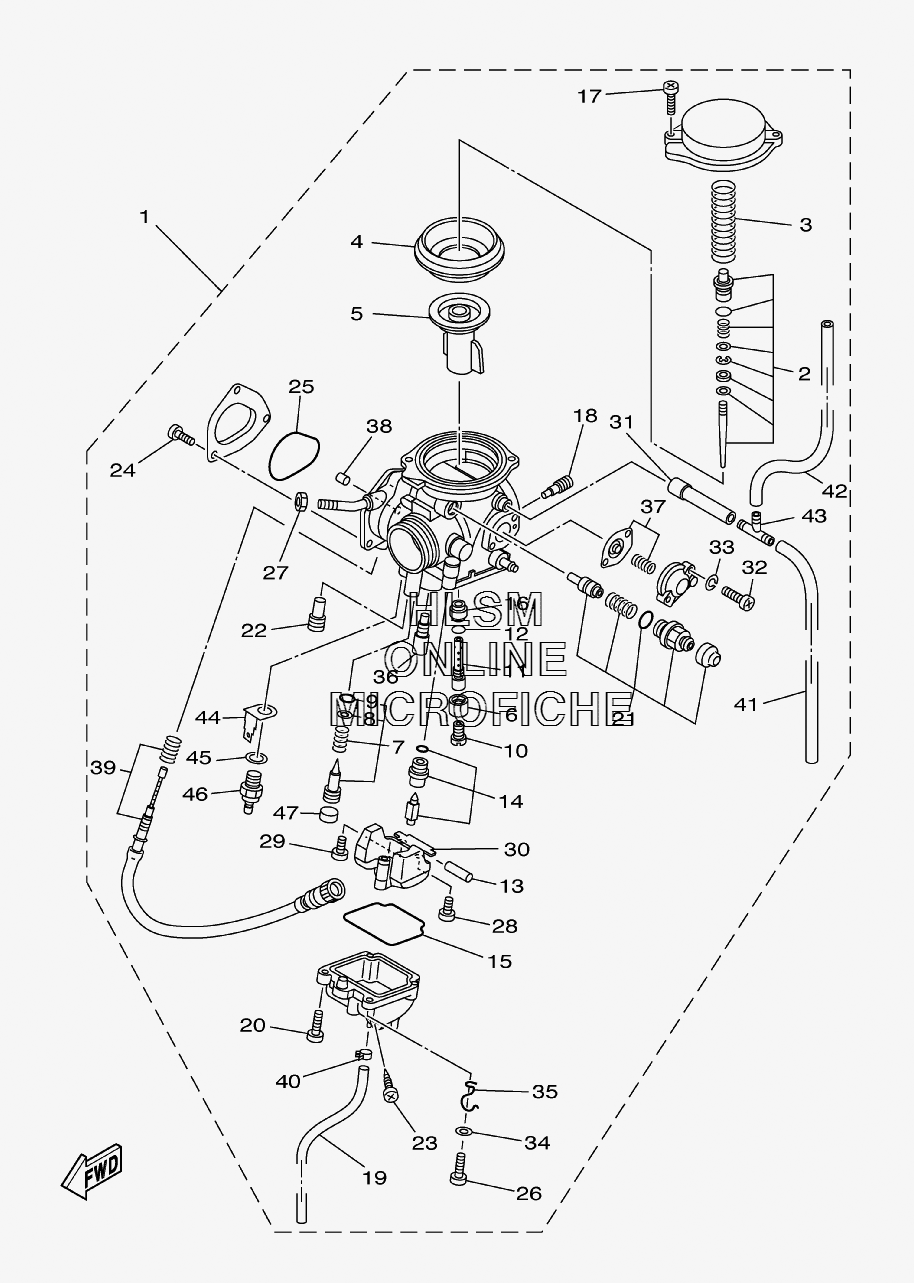

CARBURETOR для Yamaha BIG BEAR 400 4WD - 2008 года выпуска
-
№АртикулНазвание
-
14S1-E4101-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25FU-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
35DM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
45GH-14940-10-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
55DM-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
65GH-14918-00-00 ...RING...RING
-
75FU-14105-10-00 ...PILOT SCREW SET (WHITE SPRING)...PILOT SCREW SET (WHITE SPRING)
-
83H1-14962-00-00 ...WASHER...WASHER
-
93H1-14147-00-00 ...O-RING...O-RING
-
103G2-1423A-73-00 ...JET, MAIN (#112.5)...JET, MAIN (#112.5)
-
115GH-14261-00-00 ...HOLDER...HOLDER
-
12583-14561-00-00 ...O-RING...O-RING
-
13127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
145UH-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
155DM-14561-00-00 ...O-RING...O-RING
-
165DM-14141-40-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
174KM-14216-00-00 ...SCREW...SCREW
-
181HX-14231-16-00 ...JET, MAIN (#80)...JET, MAIN (#80)
-
194KB-14193-20-00 ...PIPE...PIPE
-
2098580-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
215GH-1410A-00-00 ...STARTER SET...STARTER SET
-
223G2-14231-14-00 ...JET,PILOT AIR (#70)...JET,PILOT AIR (#70)
-
233FV-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
249850L-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
255FU-E4147-00-00 ...O-RING...O-RING
-
2698507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
27522-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
2898507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
291FN-14565-00-00 ...SCREW...SCREW
-
305DM-14985-00-00 ...FLOAT...FLOAT
-
315FU-14197-00-00 ...PIPE...PIPE
-
3298501-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3392902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
3492907-04600-00 ...WASHER...WASHER
-
355FU-14937-00-00 ...CLIP...CLIP
-
364KM-14142-17-00 ...JET, PILOT (#17.5)...JET, PILOT (#17.5)
-
375EL-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
385FU-E4155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
395FU-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
404XE-14937-00-00 ...CLIP...CLIP
-
413XV-14348-00-00 ...PIPE 1...PIPE 1
-
427T9-14987-00-00 ...HOSE...HOSE
-
4390413-05014-00 ...WAY 3...WAY 3
-
445FU-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
4590201-08016-00 ...WASHER, PLATE...WASHER, PLATE
-
465FU-83790-00-00 ...HEATER ASSY (15W)...HEATER ASSY (15W)
-
473F9-14118-00-00 ...CAP...CAP
