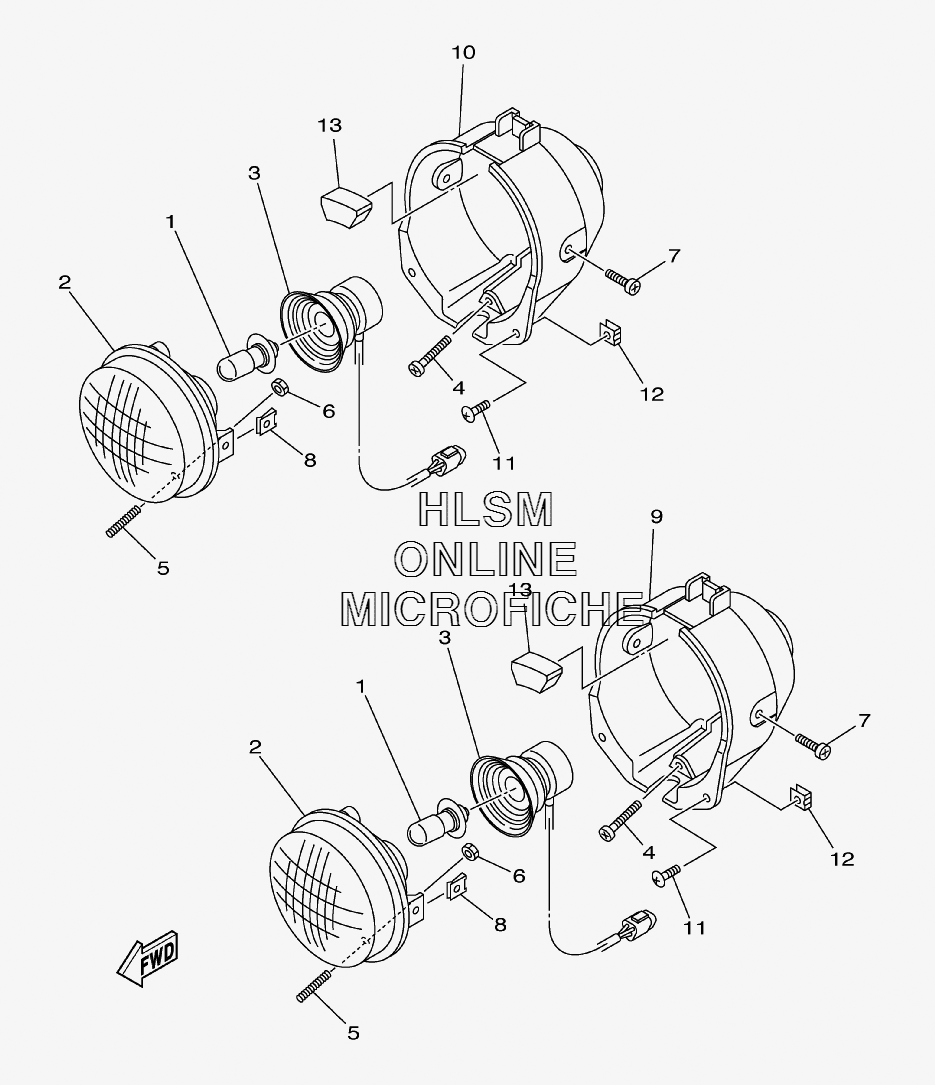

HEADLIGHT для Yamaha BIG BEAR 400 4WD - 2008 года выпуска
-
№АртикулНазвание
-
14KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
25KM-84320-01-00 LENS ASSYLENS ASSY
-
35EH-84340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
42GU-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
798902-05016-00 SCREW, BINDSCREW, BIND
-
890183-050A8-00 NUT, SPRINGNUT, SPRING
-
95FU-H4111-01-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
105FU-H4311-01-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
1197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1290183-051A3-00 NUT, SPRINGNUT, SPRING
-
134XE-F1717-00-00 DAMPERDAMPER
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- • HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
