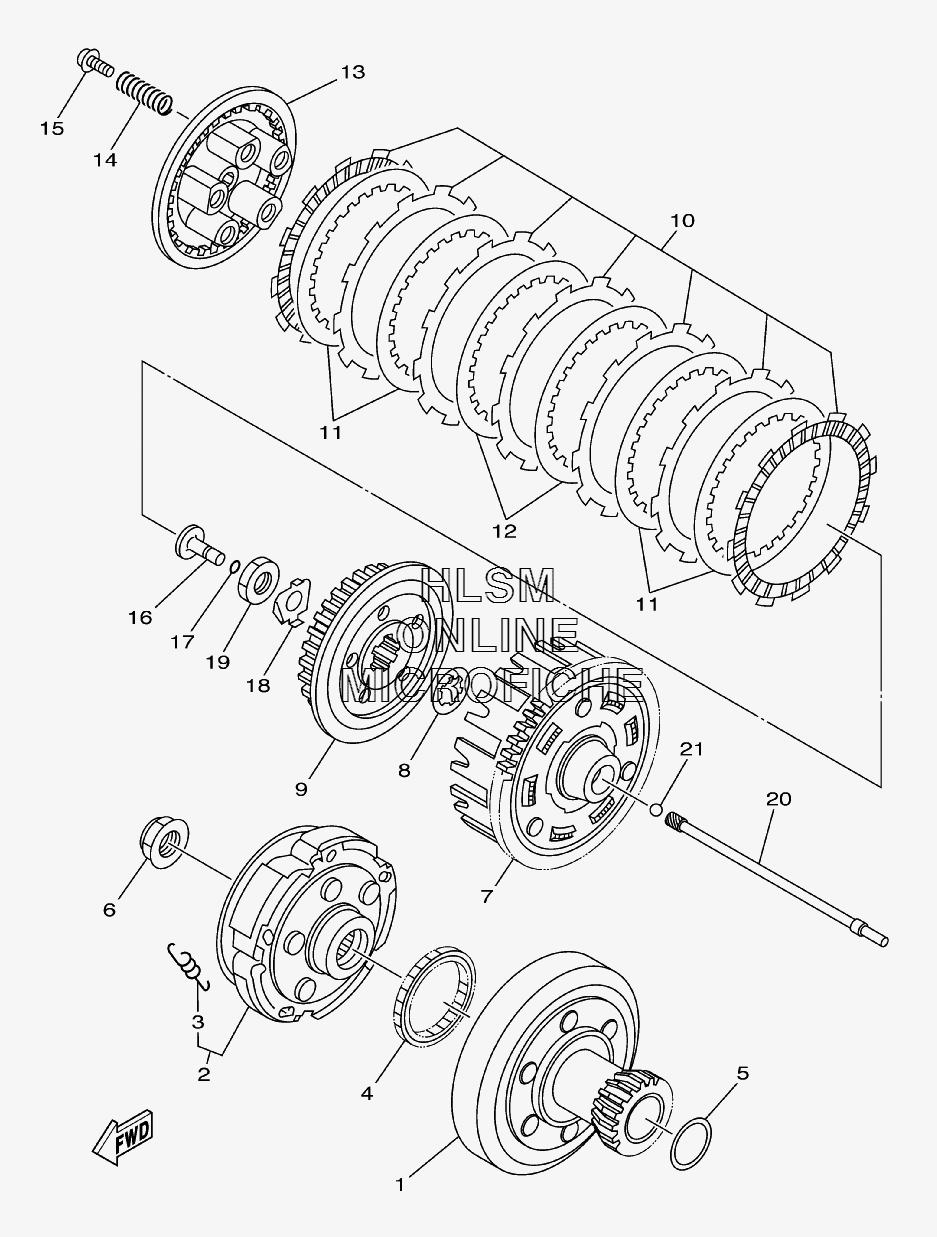

CLUTCH для Yamaha BIG BEAR 400 4WD - 2008 года выпуска
-
№АртикулНазвание
-
15FU-16611-10-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
25EH-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
35EH-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
44SH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
590201-30008-00 WASHER, PLATEWASHER, PLATE
-
690179-22005-00 NUTNUT
-
74KB-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
830X-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
955V-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
105Y1-16331-01-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
11168-16325-00-00 PLATE, CLUTCH 2 (T=1.6)PLATE, CLUTCH 2 (T=1.6)
-
123J2-16324-00-00 PLATE, CLUTCH 1 (T=2.0)PLATE, CLUTCH 1 (T=2.0)
-
135Y1-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1490501-23598-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1590159-06010-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
164KB-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1793210-06422-00 O-RINGO-RING
-
1890215-16289-00 WASHER, LOCKWASHER, LOCK
-
1990170-16326-00 NUTNUT
-
204KB-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2193511-32017-00 BALLBALL
