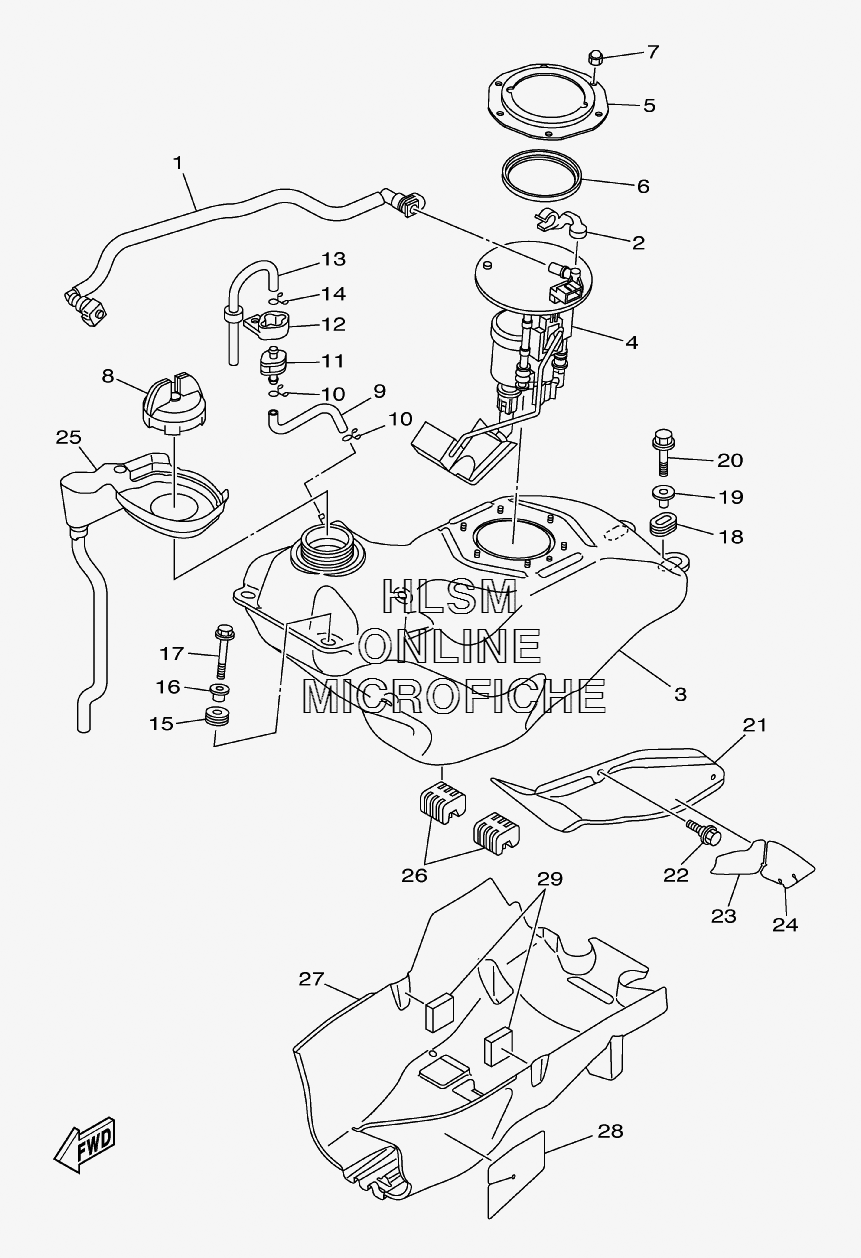

FUEL TANK для Yamaha GRIZZLY 700 - 2008 года выпуска
-
№АртикулНазвание
-
13B4-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
290464-14004-00 CLAMPCLAMP
-
33B4-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
43B4-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
53B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
61S3-24486-00-00 O-RINGO-RING
-
795302-06800-00 NUT, CROWNNUT, CROWN
-
83B4-24610-00-00 CAP ASSYCAP ASSY
-
93B4-24312-00-00 PIPE 2PIPE 2
-
1090467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
113B4-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
123B4-24398-00-00 BAND 1BAND 1
-
133B4-24313-00-00 PIPE 3PIPE 3
-
1490467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
1590480-18290-00 GROMMETGROMMET
-
1690387-066J1-00 COLLARCOLLAR
-
1795802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1890480-01400-00 GROMMETGROMMET
-
1990387-07021-00 COLLARCOLLAR
-
2095802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
213B4-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
2290109-06172-00 BOLTBOLT
-
233B4-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
243B4-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
253B4-2414F-00-00 COVER, FILLER COMP.COVER, FILLER COMP.
-
263B4-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
273B4-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
283B4-2416G-00-00 INSULATOR, FUEL TANK 2INSULATOR, FUEL TANK 2
-
293B4-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
