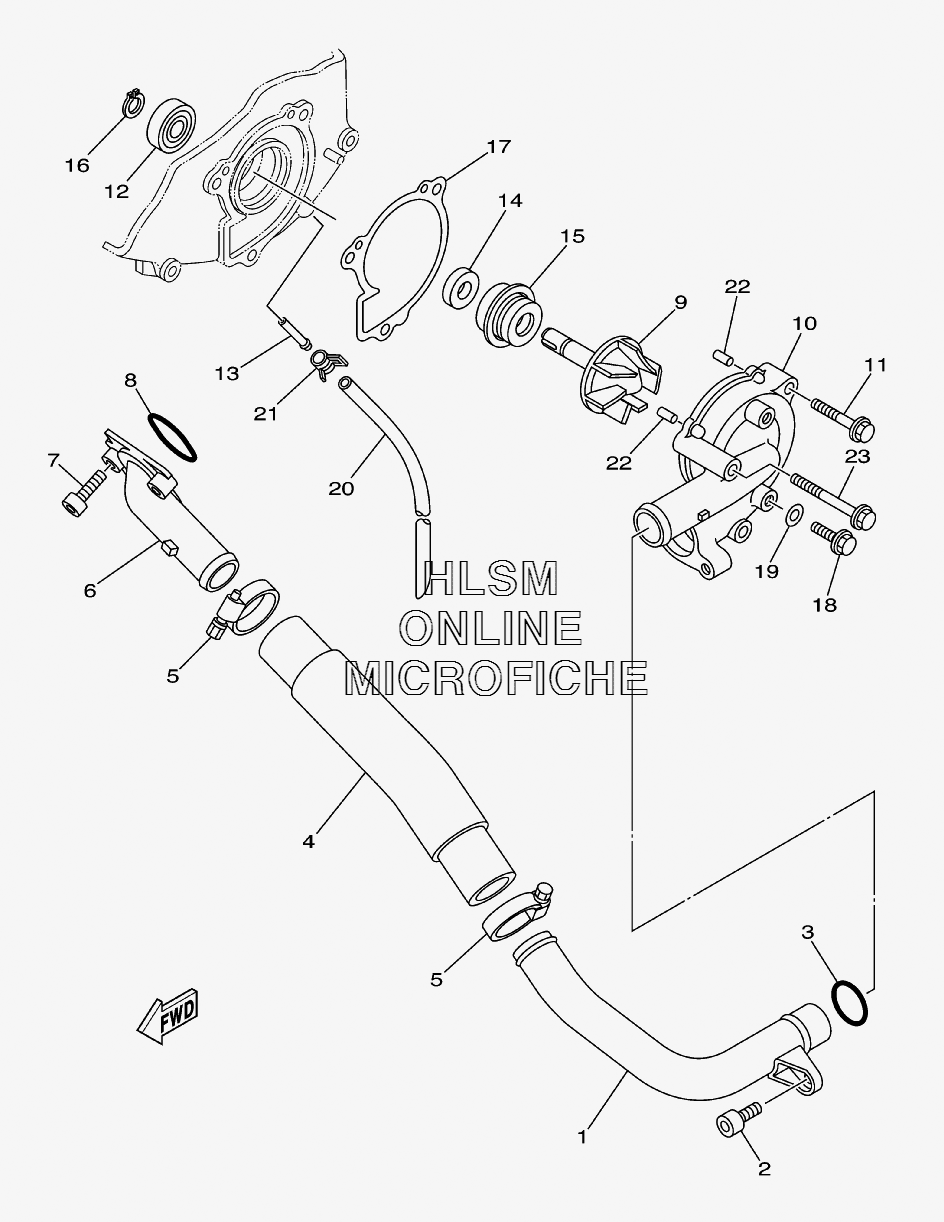

WATER PUMP ASSY для Yamaha GRIZZLY 700 - 2008 года выпуска
-
№АртикулНазвание
-
13B4-12481-00-00 PIPE 1PIPE 1
-
291312-06012-00 BOLTBOLT
-
393210-21190-00 O-RINGO-RING
-
43B4-12577-00-00 HOSE 2HOSE 2
-
590450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65KM-12469-00-00 JOINT 1JOINT 1
-
791312-06020-00 BOLTBOLT
-
893210-33786-00 O-RINGO-RING
-
93B4-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
103B4-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
1195022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1293306-00006-00 BEARINGBEARING
-
135D3-1243K-00-00 PIPE, DRAINPIPE, DRAIN
-
1493101-10090-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
1511H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
1699009-10400-00 CIRCLIPCIRCLIP
-
173B4-12428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
1895022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1990430-06014-00 GASKETGASKET
-
2090445-07340-00 HOSE (L310)HOSE (L310)
-
2190467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
2293604-10011-00 PIN, DOWELPIN, DOWEL
-
2395022-06050-00 BOLT, FLANGEBOLT, FLANGE
