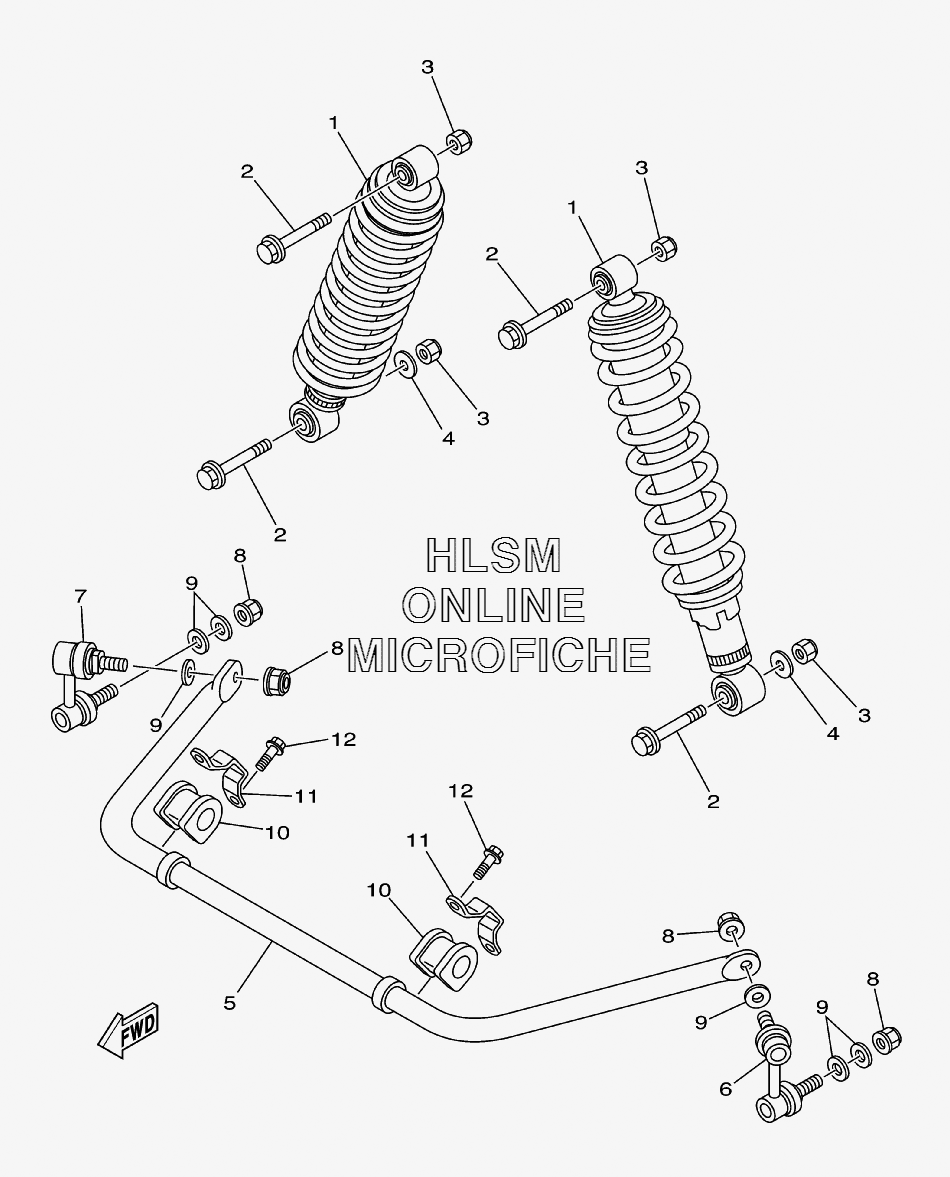

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GRIZZLY 700 - 2008 года выпуска
-
№АртикулНазвание
-
13B4-22210-01-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490201-10035-00 WASHER, PLATEWASHER, PLATE
-
53B4-47491-00-00 BAR, STABILIZERBAR, STABILIZER
-
65KM-2385L-01-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
75KM-2385M-01-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
990201-10035-00 WASHER, PLATEWASHER, PLATE
-
103B4-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
113B4-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1295812-08014-00 BOLT, FLANGEBOLT, FLANGE
