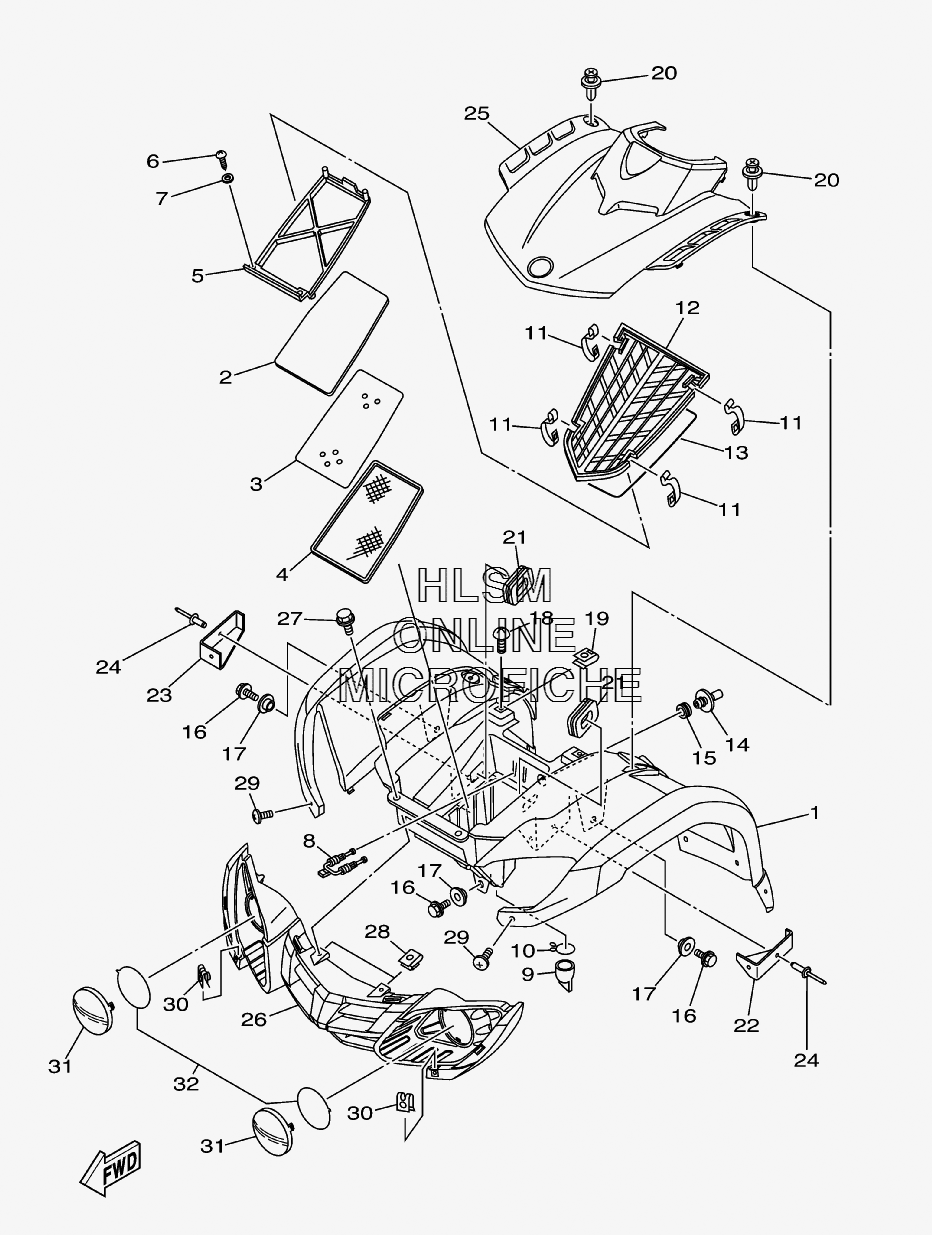

FENDER - FRONT для Yamaha GRIZZLY 80 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
12D3-W2151-B0-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
255X-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
35TH-14477-00-00 PLATEPLATE
-
455X-14472-01-00 PLATE, ELEMENTPLATE, ELEMENT
-
555X-14458-00-00 GUIDEGUIDE
-
697702-40116-00 SCREW, TAPPINGSCREW, TAPPING
-
792902-04200-00 WASHER, PLAINWASHER, PLAIN
-
855X-14436-00-00 HOOKHOOK
-
959V-14457-00-00 SEALSEAL
-
1090467-220A1-00 CLIPCLIP
-
115TH-14436-00-00 HOOKHOOK
-
125TH-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
135TH-14452-00-00 SEALSEAL
-
142D3-14419-00-00 PIPEPIPE
-
1531A-14435-00-00 GROMMETGROMMET
-
1690119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790387-06202-00 COLLARCOLLAR
-
1890149-06021-00 SCREWSCREW
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2090269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
212HX-14437-01-00 DUCTDUCT
-
222D3-23741-00-00 CAP 1CAP 1
-
232D3-23742-00-00 CAP 2CAP 2
-
2490267-50010-00 RIVET, BLINDRIVET, BLIND
-
252D3-23391-00-00 PANEL, FRONTPANEL, FRONT
-
262D3-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
2790109-06172-00 BOLTBOLT
-
2890183-060A7-00 NUT, SPRINGNUT, SPRING
-
2990154-05021-00 SCREW, BINDINGSCREW, BINDING
-
3090183-050A7-00 NUT, SPRINGNUT, SPRING
-
312D3-84121-00-00 LENS, HEADLIGHTLENS, HEADLIGHT
-
322D3-8412B-00-00 GRAPHIC SETGRAPHIC SET
