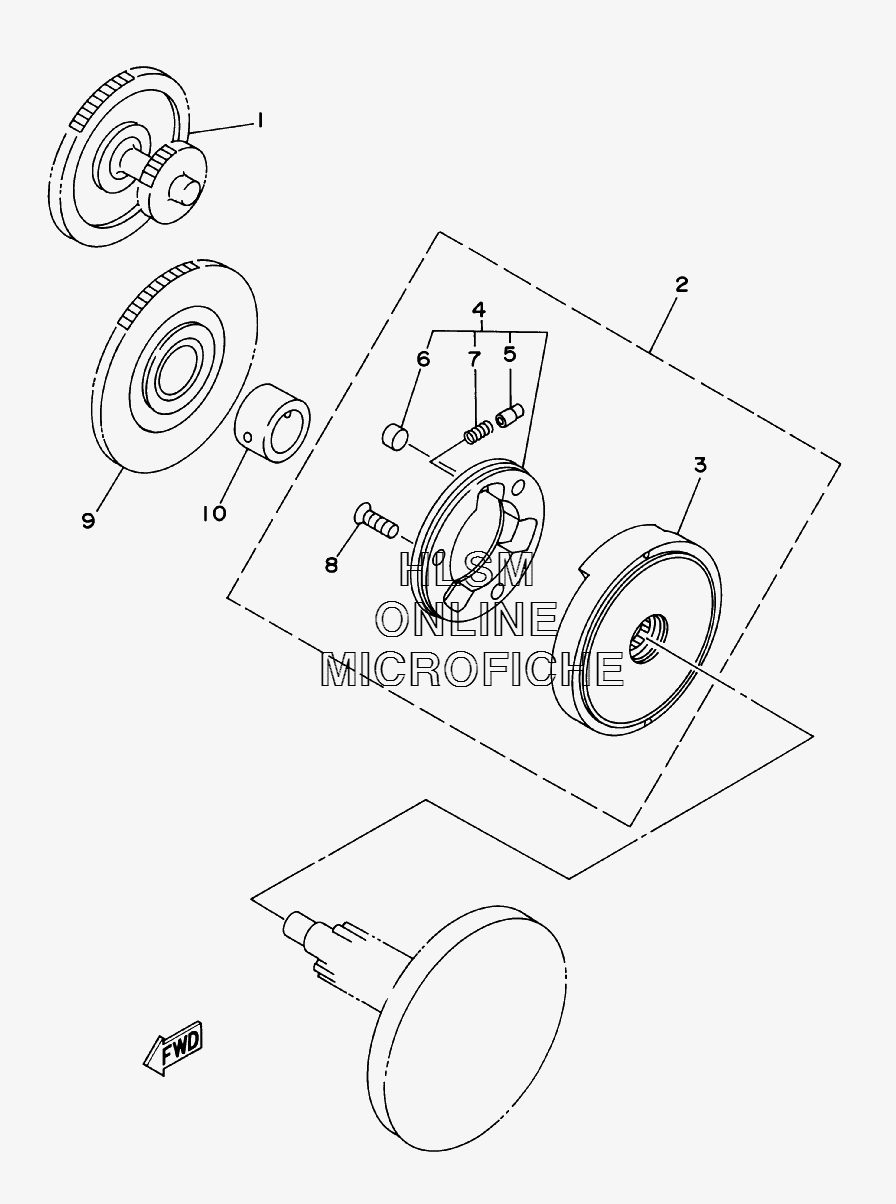

STARTER CLUTCH для Yamaha GRIZZLY 80 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
12HX-15520-00-00 STARTER WHEEL ASSYSTARTER WHEEL ASSY
-
222M-15570-10-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
322M-13450-10-00 ...ROTARY FILTER ASSY...ROTARY FILTER ASSY
-
422M-15580-10-00 ...STARTER CLUTCH OUTER ASSY...STARTER CLUTCH OUTER ASSY
-
53AY-15583-00-00 ...CAP, STARTER CLUTCH SPRING...CAP, STARTER CLUTCH SPRING
-
693610-10174-00 ...PIN, DOWEL...PIN, DOWEL
-
790501-03799-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
898701-06018-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
92HX-15517-10-00 GEAR, IDLER 2GEAR, IDLER 2
-
1090560-20196-00 SPACERSPACER
