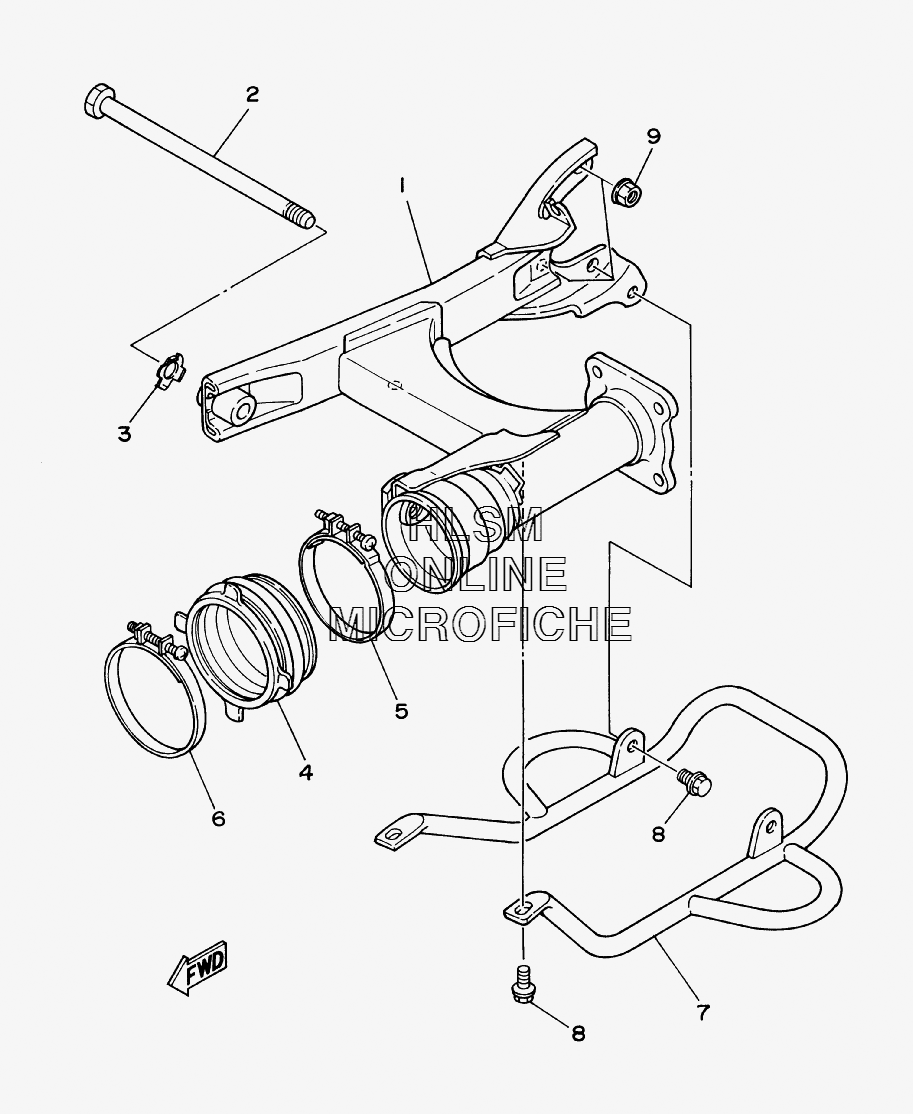

SUSPENSION - REAR ARM для Yamaha GRIZZLY 80 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
13GB-22110-00-33 REAR ARM COMP. (BLACK)REAR ARM COMP. (BLACK)
-
222W-25181-01-00 AXLE, WHEELAXLE, WHEEL
-
33GB-22156-00-00 WASHER, PLATEWASHER, PLATE
-
455X-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
590460-75020-00 CLAMP, HOSECLAMP, HOSE
-
690460-85135-00 CLAMP, HOSECLAMP, HOSE
-
73GB-2219X-00-00 COVERCOVER
-
895812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10019-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
