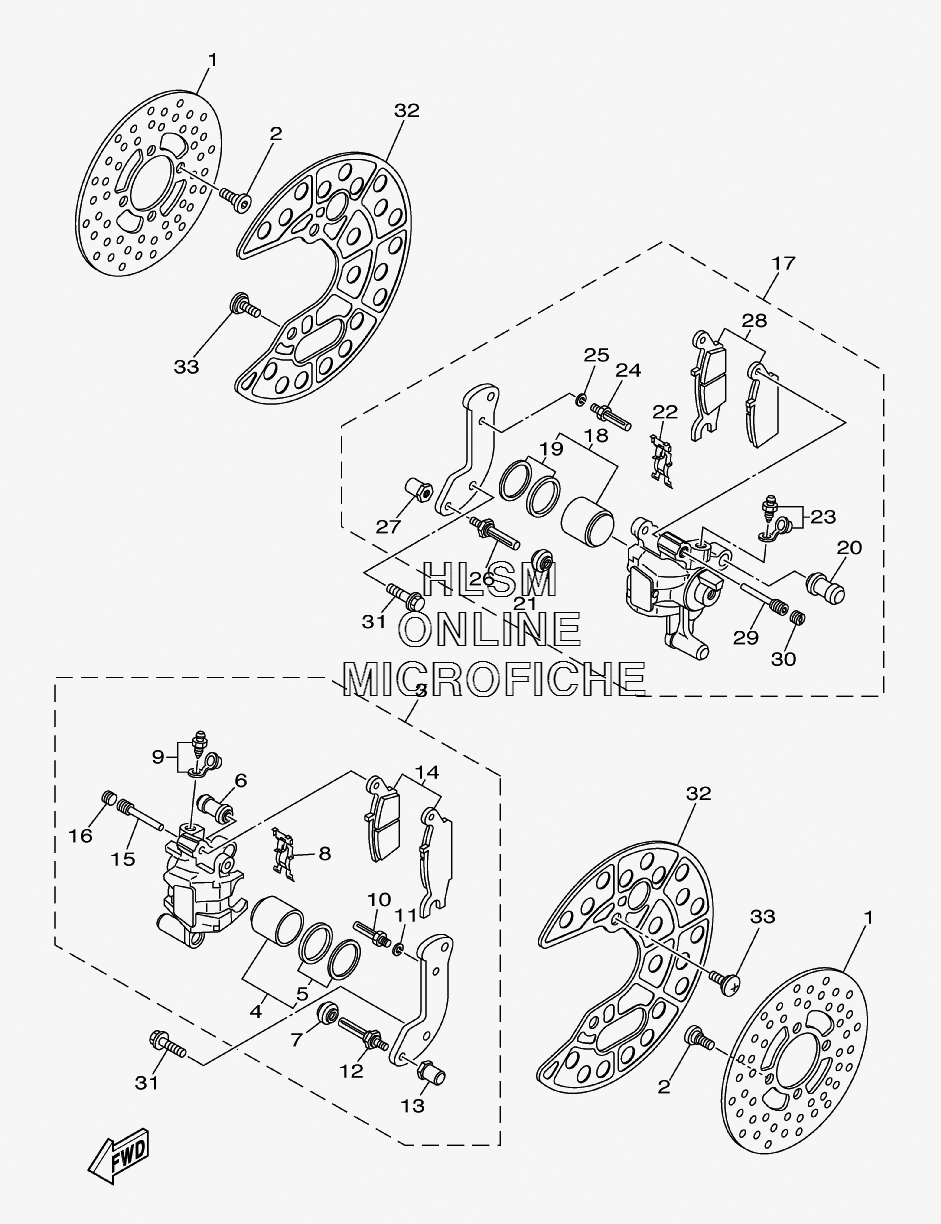

BRAKE - FRONT CALIPER для Yamaha RAPTOR 250 SPECIAL EDITION II - 2008 года выпуска
-
№АртикулНазвание
-
13GD-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
34D3-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43B4-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53B4-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
61UY-25937-51-00 ...BOOT 2...BOOT 2
-
73JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
85DH-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25926-51-00 ...BOLT...BOLT
-
111UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
123JD-25926-00-00 ...BOLT...BOLT
-
133JD-25961-00-00 ...NUT...NUT
-
144D3-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
155DH-25933-00-00 ...PIN, PAD...PIN, PAD
-
168CR-25926-00-00 ...BOLT...BOLT
-
174D3-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
183B4-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
193B4-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
201UY-25937-51-00 ...BOOT 2...BOOT 2
-
213JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
225DH-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
231UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
241UY-25926-51-00 ...BOLT...BOLT
-
251UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
263JD-25926-00-00 ...BOLT...BOLT
-
273JD-25961-00-00 ...NUT...NUT
-
284D3-W0045-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
295DH-25933-00-00 ...PIN, PAD...PIN, PAD
-
308CR-25926-00-00 ...BOLT...BOLT
-
3190105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
324D3-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
3390154-06014-00 SCREW, BINDINGSCREW, BINDING
