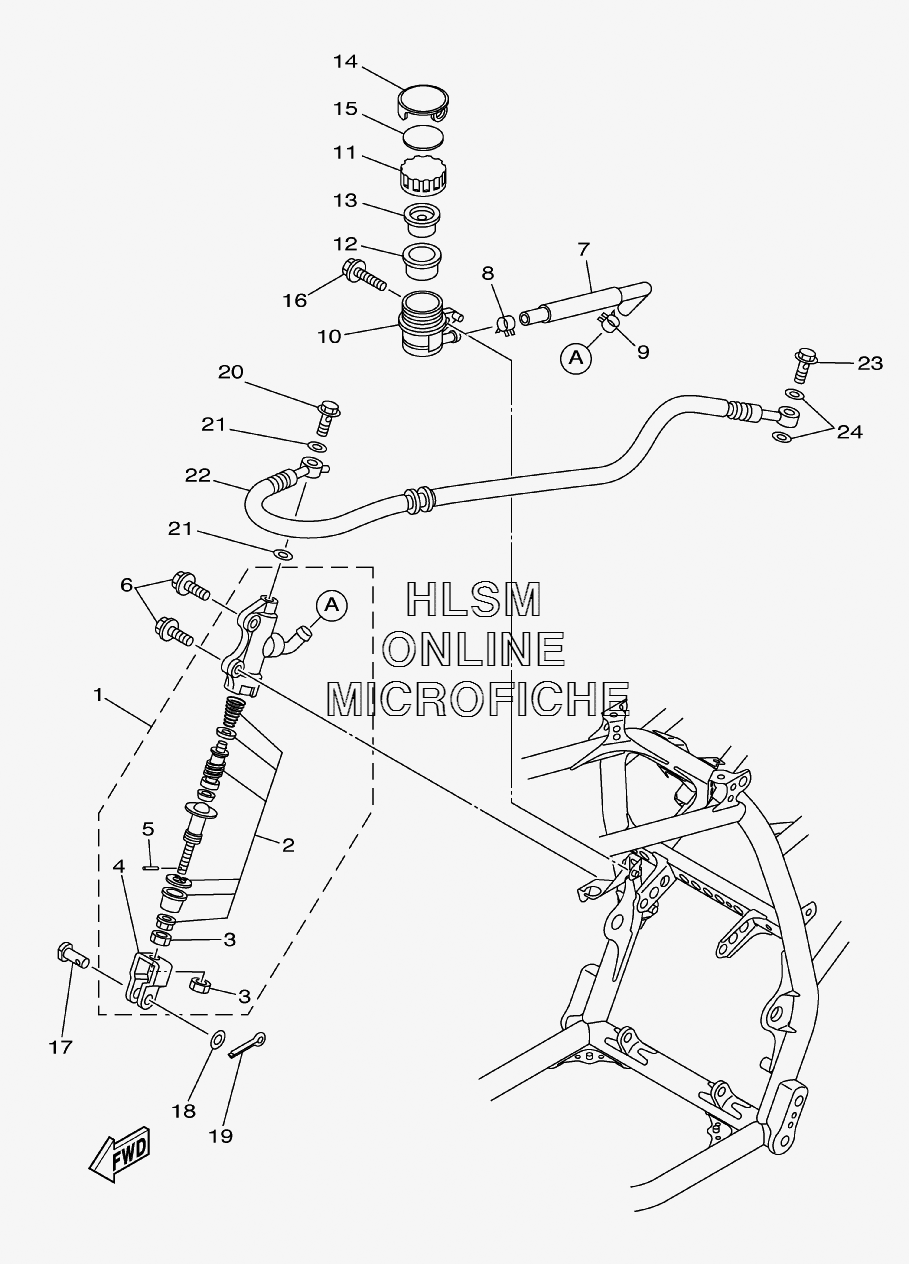

BRAKE - REAR MASTER CYLINDER для Yamaha RAPTOR 250 SPECIAL EDITION II - 2008 года выпуска
-
№АртикулНазвание
-
15TG-2580E-20-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
25TG-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34SS-27218-00-00 ...NUT...NUT
-
42YK-27222-00-00 ...JOINT...JOINT
-
53KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
695022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
74D3-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
890467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
990467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
105TG-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
113XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
122VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
132VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
144D3-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
154D3-27491-00-00 PROTECTORPROTECTOR
-
1690109-06240-00 BOLTBOLT
-
1790240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1890201-08066-00 WASHER, PLATEWASHER, PLATE
-
1991401-16012-00 PIN, COTTERPIN, COTTER
-
2090401-10015-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
224D3-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2390401-10015-00 BOLT, UNIONBOLT, UNION
-
2490201-10118-00 WASHER, PLATEWASHER, PLATE
