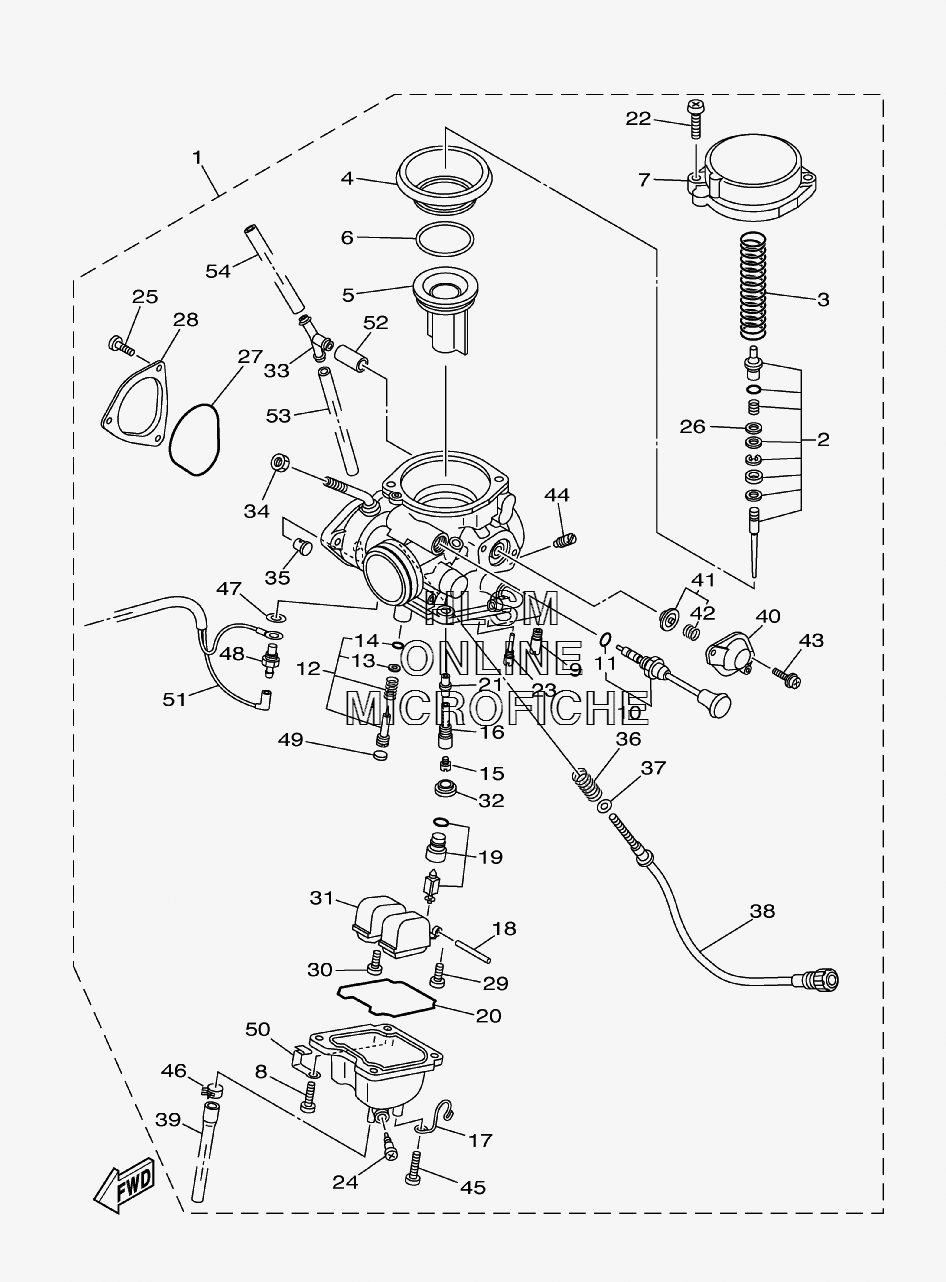

CARBURETOR для Yamaha RAPTOR 250 SPECIAL EDITION II - 2008 года выпуска
-
№АртикулНазвание
-
14D3-14901-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
24D3-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
34D3-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
44D3-14841-00-00 ...DIAPHRAGM...DIAPHRAGM
-
54D3-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
65GH-14918-10-00 ...RING...RING
-
74D3-14958-00-00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
898507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
94KM-14142-25-00 ...JET, PILOT (#25)...JET, PILOT (#25)
-
104D3-1490A-00-00 ...DIAPHRAGM SET 1...DIAPHRAGM SET 1
-
111AE-14147-00-00 ...O-RING...O-RING
-
124D3-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
133H1-14962-00-00 ...WASHER...WASHER
-
143H1-14147-00-00 ...O-RING...O-RING
-
15620-1423E-53-00 ...JET, MAIN (#133.8)...JET, MAIN (#133.8)
-
164D3-14261-00-00 ...HOLDER...HOLDER
-
174D3-14937-00-00 ...CLIP...CLIP
-
18127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
195YT-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
205DM-14561-00-00 ...O-RING...O-RING
-
215DM-1414M-40-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
224KM-14216-00-00 ...SCREW...SCREW
-
233G2-14231-11-00 ...JET, POWER (#55)...JET, POWER (#55)
-
2412R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2598507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
265DM-14952-00-00 ...WASHER...WASHER
-
275LP-14147-00-00 ...O-RING...O-RING
-
284WV-14293-00-00 ...COVER 1...COVER 1
-
2998507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
301FN-14565-00-00 ...SCREW...SCREW
-
315DM-14985-00-00 ...FLOAT...FLOAT
-
325V7-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
334D3-14988-00-00 ...PIPE, STARTER CONNECTING...PIPE, STARTER CONNECTING
-
341S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
353GD-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
36137-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
375FU-14962-00-00 ...WASHER...WASHER
-
384D3-14123-00-00 ...SCREW, AIR ADJUSTING...SCREW, AIR ADJUSTING
-
394D3-14193-00-00 ...PIPE...PIPE
-
405AP-14280-00-00 ...COVER, CARBURETOR...COVER, CARBURETOR
-
414D3-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
423HT-14934-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
4397607-04114-00 ...SCREW,WITH WASHER...SCREW,WITH WASHER
-
441HX-14231-34-00 ...JET, MAIN (#170)...JET, MAIN (#170)
-
4598507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4690467-09026-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
475CY-14951-00-00 ...WASHER...WASHER
-
485FU-83790-00-00 ...HEATER ASSY (15W)...HEATER ASSY (15W)
-
493F9-14118-00-00 ...CAP...CAP
-
5090461-06087-00 ...CLAMP...CLAMP
-
514D3-82509-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
524D3-14196-00-00 ...PIPE...PIPE
-
531UM-14197-00-00 ...HOSE...HOSE
-
545JJ-14987-00-00 ...HOSE...HOSE
